AKER 16.384 MHz Crystal ±30 ppm Surface Mount 4-Pin 7 mm x 5 mm x 1.1 mm C7S-16.384-12-3030-X

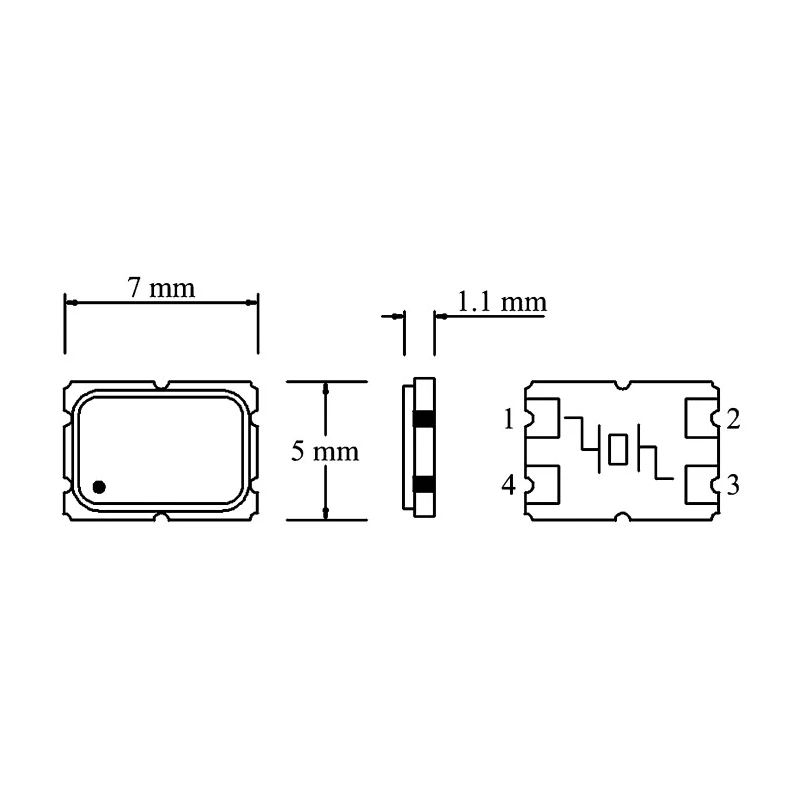

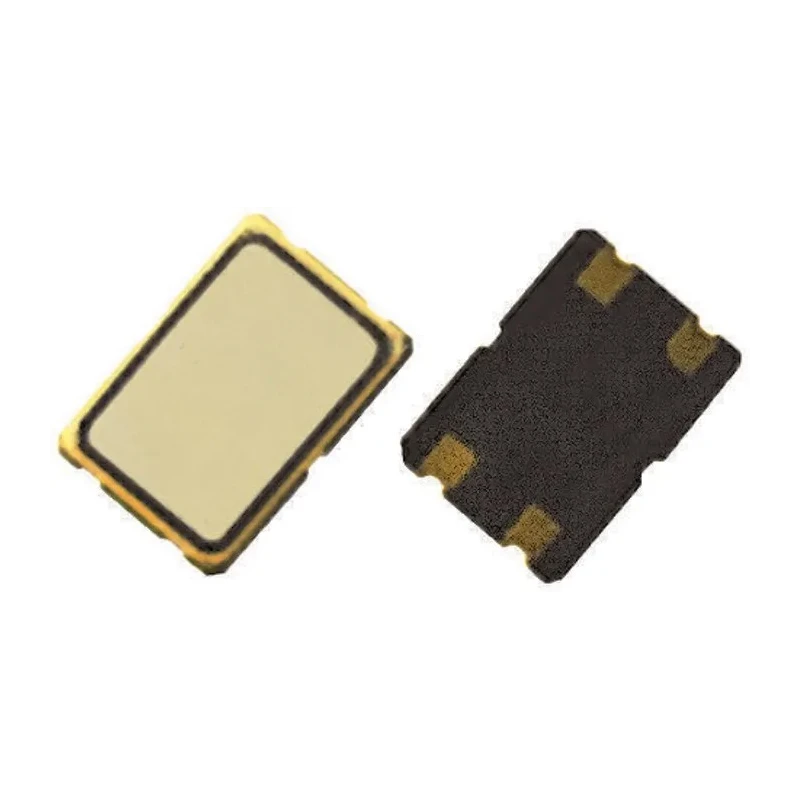

AKER C7S-16.384-12-3030-X is a high-precision 16.384 MHz crystal unit designed for surface mount technology (SMT) applications requiring reliable frequency accuracy and stability. It features a 4-pin configuration in a compact metal case measuring 7 mm by 5 mm by 1.1 mm, making it suitable for space-constrained electronic assemblies.

This crystal unit has a frequency tolerance and stability of ±30 ppm, ensuring consistent oscillation frequency, essential for communication, timing, and signal processing circuits. Its load capacitance of 12 pF is optimized for typical oscillator circuits, maintaining stable performance across operating temperatures ranging from -40°C to 85°C, suitable for industrial and commercial electronic devices.

The series resistance of 45 ohms provides a balance between signal quality and power consumption, making it an ideal choice for sensitive and precision equipment. The crystal is RoHS compliant, demonstrating adherence to environmental directives, and comes packaged in tape and reel format for automated pick-and-place assembly, improving production efficiency and throughput.

Its robust design and precise electrical characteristics make this crystal well-suited for applications in industrial equipment, instrumentation, telecommunications, and embedded systems requiring accurate clock generation and frequency control.

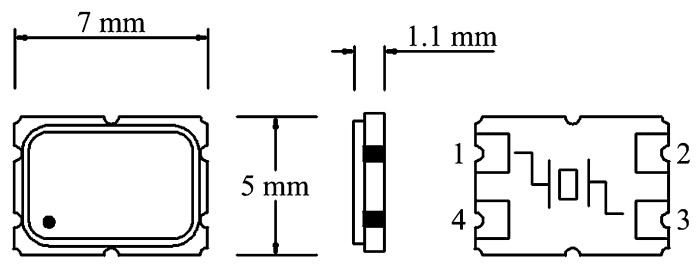

Standard frequency of 16.384 MHz suitable for timing applications. Surface mount package with compact dimensions of 7 mm length, 5 mm width, and 1.1 mm height. Load capacitance of 12 pF for stable oscillation. Frequency tolerance and stability of ±30 ppm ensure accurate performance.

Operating temperature range from -40°C to 85°C enables use in various environments. Series resistance of 45 ohms to optimize signal quality. RoHS compliant ensuring environmental safety in manufacturing and usage. Tape & reel packaging facilitates automated assembly processes.
