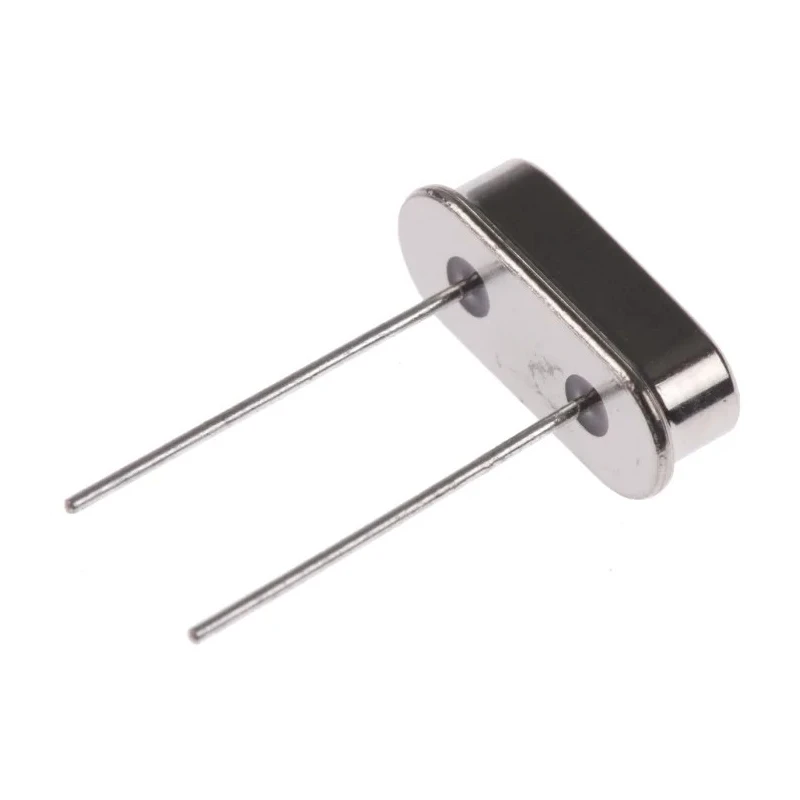

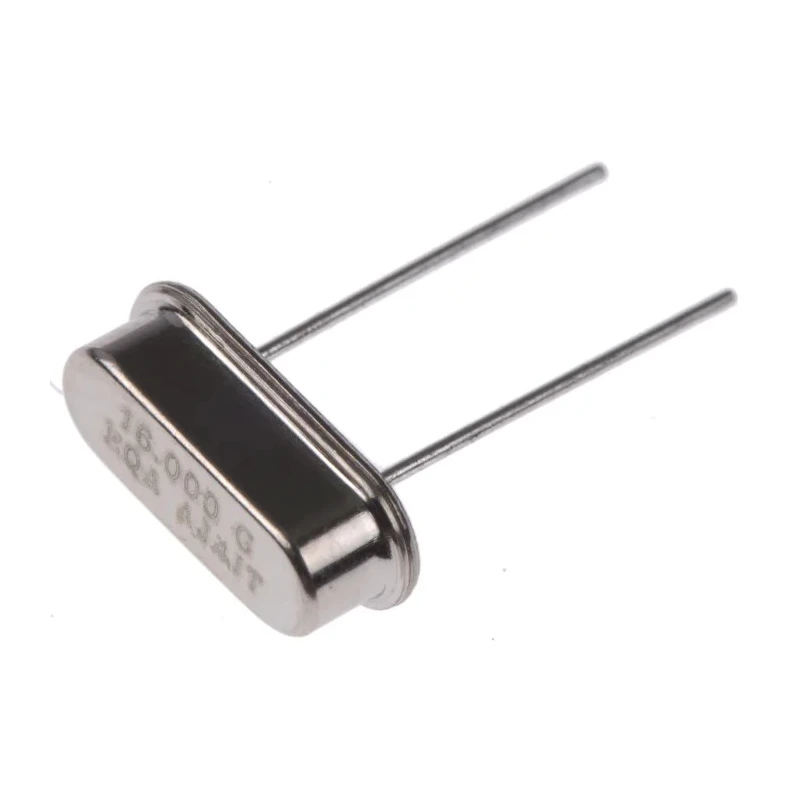

IQD 16 MHz Crystal ±30 ppm HC-49 2-Pin Through Hole 18pF Load Capacitance 16.000MHz /4H/30/50/-40+85/18pF/ATF HC49
Specifications
| Country of Origin | China |
|---|---|
| Brand | IQD |
| Height | 3.5mm |
| Length | 10.77mm |
| Model | HC49 |
| Packaging | Tape & Reel |
| Width | 4.34mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 85°C |
| Package Type | HC-49 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 16MHz |
| Load Capacitance | 18pF |
| Series Resistance | 40Ω |

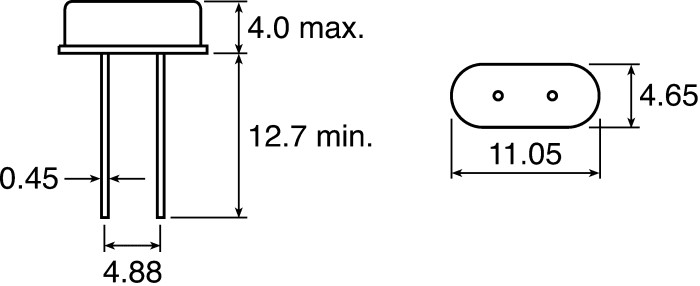

| IQD 16MHz Crystal ±30ppm HC-49-4H 2-Pin 11.05 x 4.7 x 4mmBrand | IQD |
Key Features
- This crystal features a standard frequency of 16 MHz.
- It has an 18 pF load capacitance ensuring stable oscillation.
- The package type is HC-49 with a compact 10.77 mm length and 4.34 mm width.
- Designed for operating temperatures ranging from -40°C to 85°C.
- The crystal has a series resistance of 40 Ω suitable for a variety of oscillator circuits.
- It is RoHS compliant, making it environmentally friendly.
- Supplied in tape and reel packaging for manufacturing efficiency.
Product Description
Euroquartz HC49 16 MHz Crystal (Model HC49) offers precise timing with a frequency tolerance of ±30 ppm and frequency stability of ±3 ppm. It is designed for through-hole mounting with a 2-pin configuration, making it ideal for integration in electronic assemblies requiring reliable frequency control.
This HC-49 package crystal features a standard frequency of 16 MHz and a load capacitance of 18 pF. The component dimensions are compact, with a length of 10.77 mm, width of 4.34 mm, and height of 3.5 mm, making it suitable for space-constrained applications.
Operating temperature range from -40°C to 85°C ensures long-term reliability in various industrial and commercial electronic environments. The series resistance of 40 Ω supports efficient energy use in oscillator circuits.
Manufactured under RoHS compliance, this crystal supports environmentally responsible electronic designs. Packaging in tape and reel format facilitates automated assembly processes, enhancing production efficiency.
Common applications include clock generation, microcontroller systems, communications, instrumentation, and general frequency control in industrial, laboratory, commercial, and electronics manufacturing settings.
Standard frequency of 16 MHz. ±30 ppm frequency tolerance and ±3 ppm stability. Through hole mounting with 2 pins in HC-49 package. Load capacitance of 18 pF. Temperature range: -40°C to 85°C. Series resistance of 40 Ω. RoHS-compliant manufacturing.
Supplied in tape and reel packaging for manufacturing efficiency.
Euroquartz crystals are trusted components in the electronics industry for precision frequency control. Explore a wide range of crystals and oscillators at EnvMart to meet your design needs.
Explore more products in our Crystal Units category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal is 16 MHz.
It has a load capacitance of 18 pF, ensuring stable oscillation in circuits.
This model operates within a temperature range of -40°C to 85°C.
The series resistance of this crystal is 40 Ω, suitable for efficient energy use in oscillator circuits.
It is designed for through-hole mounting with a 2-pin configuration.
The dimensions of this crystal are 10.77 mm in length, 4.34 mm in width, and 3.5 mm in height.
It is supplied in tape and reel packaging, which facilitates automated assembly processes.
Yes, this crystal is RoHS compliant, supporting environmentally responsible electronic designs.
Common applications include clock generation, microcontroller systems, communications, and instrumentation.
The frequency tolerance of this crystal is ±30 ppm, ensuring precise timing.
The maximum operating temperature of this crystal is 85°C.
This crystal is manufactured by IQD.
