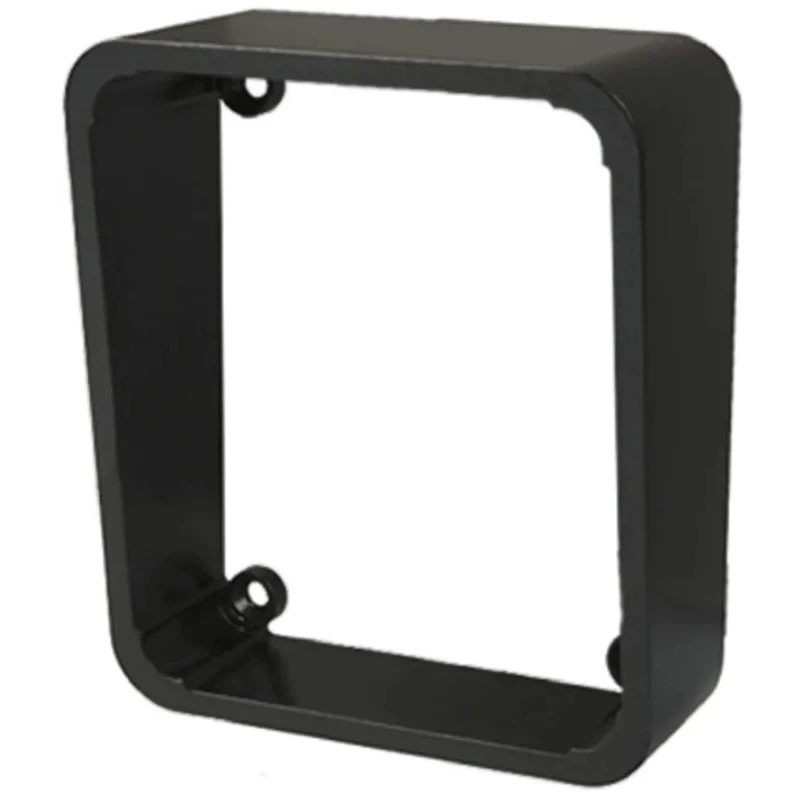

Storm Keypad Privacy Shroud for use with Storm AVX Series and all Storm K Series 12 Key Keypads 1KFS0202

Storm 1KFS0202 Keypad Privacy Shroud is designed to be compatible with Storm AVX Series and all Storm K Series 12 key keypads, providing a robust shield that withstands demanding environments.

Manufactured with a metal casing and chromed zinc keytops, this privacy shroud offers excellent vandal resistance to prevent tampering or damage in public and outdoor installations.

Fully sealed to IP65, it is suitable for exposed outdoor applications where resistance to dust and water ingress is critical. The engraved keytop characters maintain legibility even under heavy use.

The shroud includes a gold on nickel plated FR4 contact PCB, assuring the reliability of electrical contacts. It is available in multiple key formats - 4, 12, and 16 keys - to accommodate a variety of keypad needs.

This device operates with a contact rating of 50mA at 24Vdc and a contact resistance of 100Ω, supporting low voltage control circuits. It also features a dielectric strength of 500Vac and insulation resistance measured at 50MΩ, ensuring safety and durability over prolonged use.

Designed for demanding conditions, the keypad privacy shroud can withstand temperatures from -40°C in dry conditions up to +100°C, making it ideal for industrial, commercial, and other outdoor environments.

The operational life is rated at over 4 million cycles per key, demonstrating exceptional longevity. The product operates with an actuation force of 180 grams and a contact bounce time of 5 milliseconds, ensuring precise and responsive key presses.

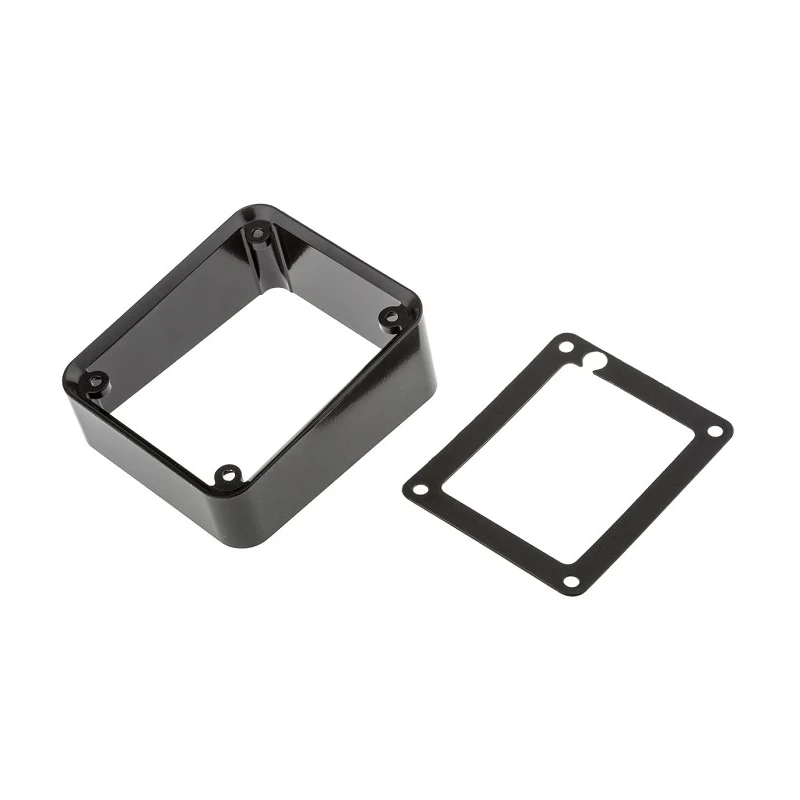

Back box and privacy shroud accessories are available to enhance installation security and privacy. This product is manufactured in the United Kingdom, adhering to high-quality standards for industrial keypad solutions. Constructed with metal casing and chromed zinc keytops for enhanced vandal resistance.

Fully sealed to IP65, suitable for exposed outdoor environments. Features engraved keytop characters for durability and visibility. Gold on nickel plated FR4 contact PCB ensures reliable electrical performance. Supports 4, 12, and 16 key formats to fit various keypad models.

Contact rating is 50mA at 24Vdc for low power applications. Contact resistance rated at 100Ω for consistent key activation. Dielectric strength up to 500Vac provides electrical insulation safety. Insulation resistance of 50MΩ offers superior protection against leakage currents.

Operational life exceeding 4 million cycles per key ensures long-term durability. Operating temperature range from -40°C (dry) to +100°C suits harsh conditions. Includes a back box and privacy shroud option for improved installation and security.

Operating force required is 180g with a contact bounce time of 5ms. Explore more products in the Keyboard & Keypad Fittings category at EnvMart to find compatible accessories and complementary industrial controls for your automation needs.
