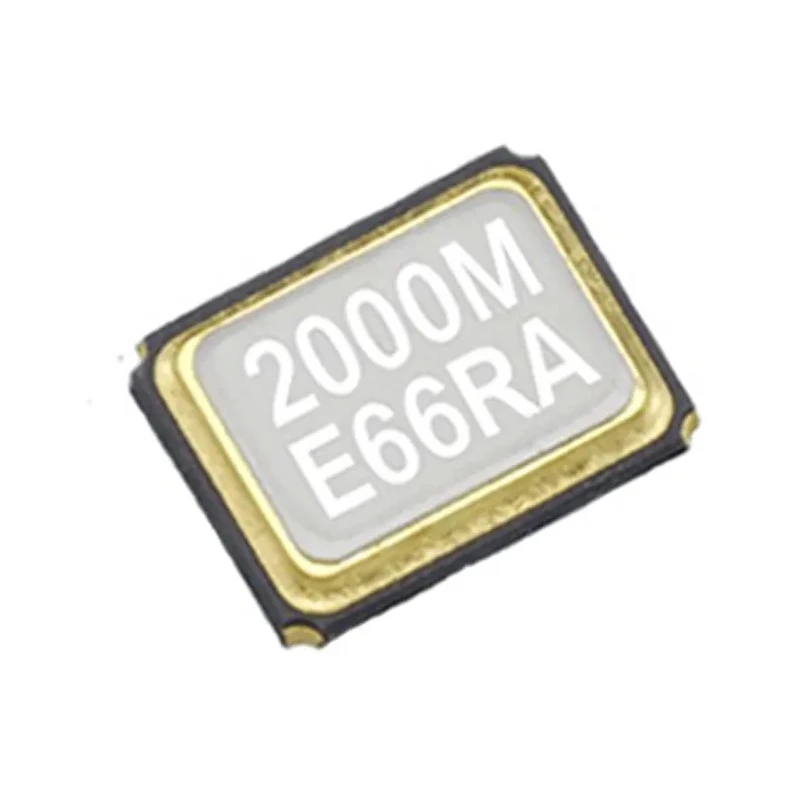

Epson 20 MHz Surface Mount Crystal Unit FA-238 Series ±50 ppm Frequency Tolerance 4-Pin Q22FA2380000112
Specifications
| Country of Origin | India |
|---|---|
| Frequency range | 16 MHz to 60 MHz |
| Brand | Epson |
| Height | 0.7mm |
| Length | 3.2mm |
| Model | Q22FA2380000112 |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | FA-238 |
| Maximum Operating Temperature | 85°C |
| Package Type | FA-238 |
| Minimum Operating Temperature | -40°C |
| Interfaces | LAN ISM band radio, Clock for MPU |
| External Dimensions | 3.2 x 2.5 x 0.7 mm |
| Standards/Approvals | REACH, RoHS |
| Pin Count | 4 |
| Standard Frequency | 20MHz |
| Load Capacitance | 12pF |
| Series Resistance | 80Ω |
| Overtone order | Fundamental |
Key Features
- This crystal unit features a low profile FA-238 ceramic package measuring 3.2 mm by 2.5 mm with a height of 0.7 mm.
- It offers a load capacitance of 12 pF and a fundamental overtone operation for accurate frequency stability.
- Designed to operate between -40°C and 85°C with 80Ω series resistance, ensuring robust environmental resistance.
- Ideal for use in mobile phones, Bluetooth, WLAN ISM band radio, and clock generation for MPU circuits.
- Complies with REACH and RoHS standards, guaranteeing environmental compliance.
Product Description
Epson Q22FA2380000112 is a high-precision 20 MHz crystal unit from the FA-238 series, packaged in a compact surface mount device with dimensions of 3.2 mm length, 2.5 mm width, and 0.7 mm height.
This crystal operates with a frequency tolerance of ±50 ppm and features a fundamental overtone order for applications requiring stability and accuracy. It is designed with a 4-pin configuration and a load capacitance of 12 pF to match common oscillator circuits.
The device has a temperature range from -40°C to 85°C and a series resistance of 80Ω, making it suitable for varied industrial and consumer electronics environments. Typical applications include use in mobile phones, Bluetooth devices, WLAN ISM band radios, and microprocessor unit (MPU) clocks.
Manufactured with RoHS and REACH compliance, this crystal unit ensures environmentally safe usage in modern electronic designs. Low profile FA-238 surface mount ceramic package. Stable frequency with ±50 ppm tolerance. Operates reliably across wide temperature ranges.
Fundamental overtone operation for precise signal generation. Applicable in communication and processing technologies.
For projects requiring dependable crystal oscillators, the Epson FA-238 series offers robust performance for advanced technological applications in telecommunications, computing, and control systems.
Explore more high-quality electronic components like Crystal Units and oscillators in our extensive catalog to support your industrial and commercial electronics design and manufacturing needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The external dimensions of this crystal unit are 3.2 mm in length, 2.5 mm in width, and 0.7 mm in height.
This model has a frequency tolerance of ±50 ppm.
The load capacitance for this crystal unit is 12 pF.
It is designed to operate between -40°C and 85°C.
This crystal unit uses a surface mount type.
The series resistance of this model is 80Ω.
It operates on a fundamental overtone order.
Typical applications include use in mobile phones, Bluetooth devices, WLAN ISM band radios, and clock generation for MPU circuits.
It complies with REACH and RoHS standards, ensuring environmental compliance.
This model features a 4-pin configuration.
The frequency range for the FA-238 series is from 16 MHz to 60 MHz.
The country of origin for this crystal unit is India.
