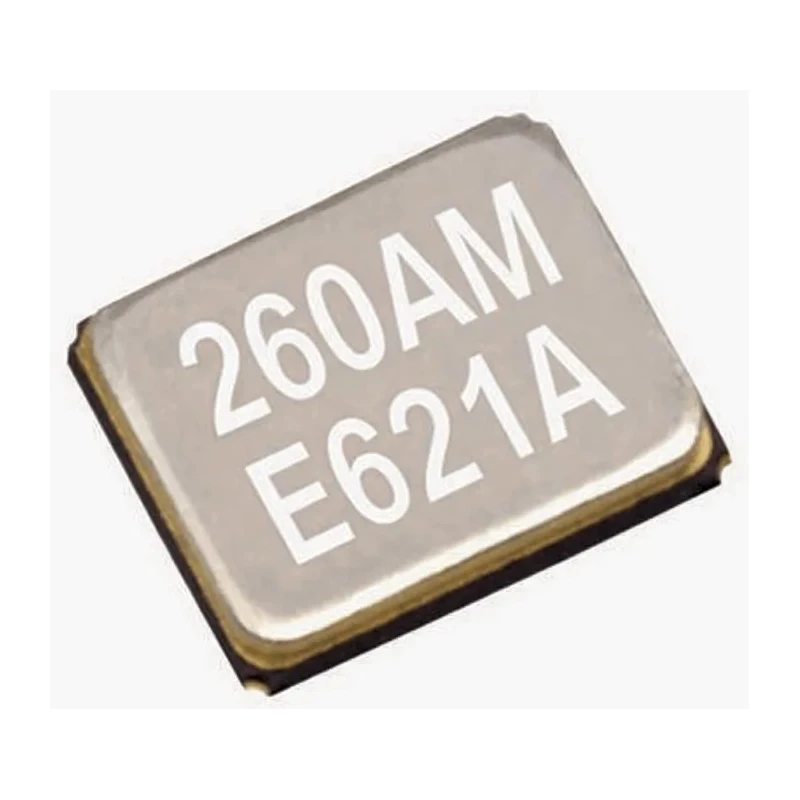

Epson 16 MHz Crystal ±10 to ±30 ppm Surface Mount 4-Pin 2.5 x 2.0 x 0.55 mm Q24FA20H0004411

Free Delivery in India | Lowest Global Shipping Charges

Epson 16 MHz Crystal ±10 to ±30 ppm Surface Mount 4-Pin 2.5 x 2.0 x 0.55 mm Q24FA20H0004411

Name: Epson 16 MHz Crystal ±10 to ±30 ppm Surface Mount 4-Pin 2.5 x 2.0 x 0.55 mm Q24FA20H0004411
Brand: Epson
SKU: 425223
Price: 1.37 USD
Availability: InStock



Category Mounting Equipment Brand Epson Condition New

Specifications

Country of Origin	India
Brand	Epson
Height	0.55mm
Length	2.5mm
Model	Q24FA20H0004411
Width	2mm
Mount Type	Surface
Series	FA-20H
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C

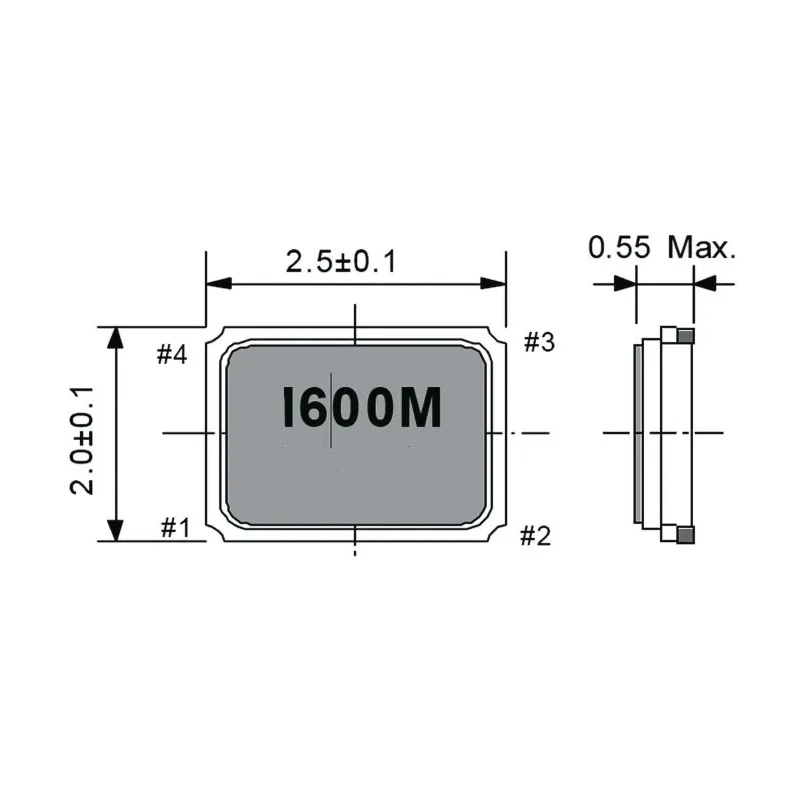

External Dimensions	2.5 x 2.0 x 0.55 mm
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	16MHz
Load Capacitance	9pF
Series Resistance	80Ω
Overtone order	Fundamental
Nominal frequency range	12 MHz to 48 MHz
IQD 16MHz Crystal ±20ppm SMD 4-Pin 2.5 x 2 x 0.6mmBrand	IQD

Key Features

Surface mount design with 4 pins for easy PCB integration.
Operating frequency of 16 MHz suitable for mobile and communication devices.
Compact external dimensions of 2.5 x 2.0 x 0.55 mm.
Stable frequency tolerance between ±10 to ±30 ppm for precise timing.
Operating temperature range from -40°C to 85°C.
Load capacitance of 9 pF designed for optimal circuit performance.
Series resistance value of 80 Ω ensuring reliable signal quality.
FA-20H series miniature crystal suitable for advanced electronics applications.

Product Description

Epson Q24FA20H0004411 is a 16 MHz surface mount crystal unit designed for high precision timing applications in modern electronic devices. Featuring a miniature 2.5 x 2.0 x 0.55 mm ceramic package with 4-pin surface mount configuration, this crystal offers excellent frequency stability with tolerance ranging from ±10 to ±30 ppm.

Manufactured under the FA-20H series, this crystal is ideal for integration in mobile phones, Bluetooth modules, W-LAN systems, ISM band radios, and microprocessor clocks where compact size and high reliability are critical. Its robust operating temperature range from -40°C to 85°C ensures performance stability in a variety of environmental conditions.

The unit supports a load capacitance of 9 pF and provides a series resistance of 80 Ω, making it compatible with many oscillator circuit designs requiring fundamental overtone modes. RoHS compliant, this component meets environmental safety standards.

Its miniature form factor allows for optimized PCB layouts in compact electronic assemblies, boosting production efficiency and device miniaturization. Surface mount design with 4 pins for easy PCB integration. Operating frequency of 16 MHz suitable for mobile and communication devices.

Compact external dimensions of 2.5 x 2.0 x 0.55 mm. Stable frequency tolerance between ±10 to ±30 ppm for precise timing. Operating temperature range from -40°C to 85°C. Load capacitance of 9 pF designed for optimal circuit performance.

Series resistance value of 80 Ω ensuring reliable signal quality. FA-20H series miniature crystal suitable for advanced electronics applications.

This crystal unit is widely used in industrial, consumer electronics, telecommunications, and embedded systems for clock generation and frequency control applications. For detailed circuit integration and mechanical drawings, technical documents can be consulted to assist designers and engineers.
