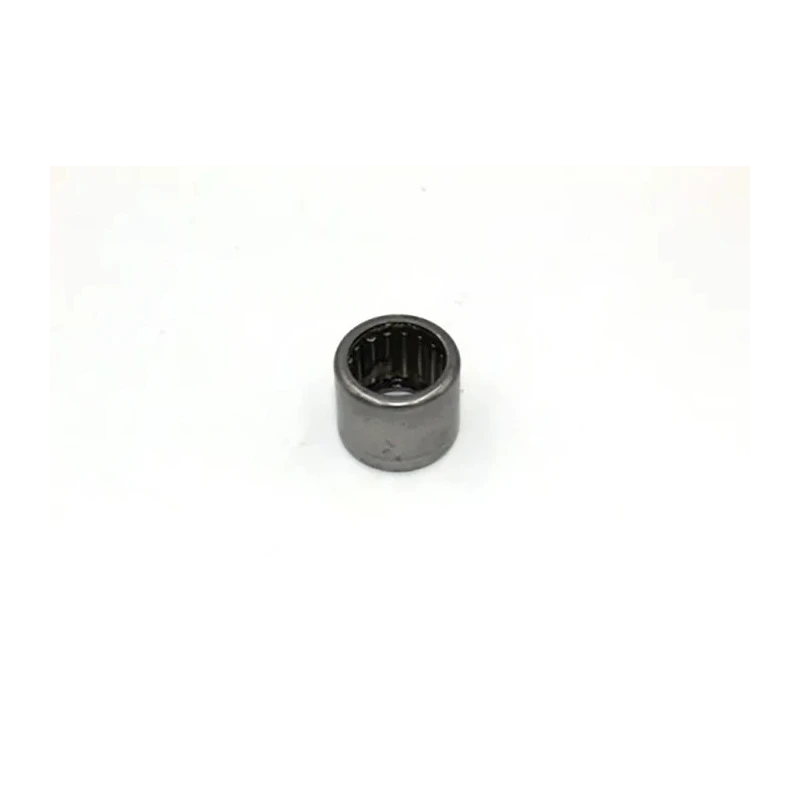

INA 10 mm ID Drawn Cup Needle Roller Bearing Sealed, 14 mm OD HK1012-RS-FPM-B-L271

INA HK1012-RS-FPM-B-L271 is a high-quality drawn cup needle roller bearing featuring a sealed end type and steel cage, designed for demanding mechanical applications.

This bearing has an inside diameter of 10 mm, outside diameter of 14 mm, and a race width of 12 mm with a parallel bore type. It is engineered to provide a very low cross-sectional height, making it ideal for applications with limited radial space.

Its drawn cup construction enables usage when the housing bore cannot serve as a raceway for needle roller and cage assemblies. This bearing can directly run on the shaft without the need for an inner ring, allowing higher speeds and simpler designs.

With outstanding static and dynamic load ratings of 5.1 kN and 4.4 kN respectively, it supports substantial radial loads while requiring no additional axial retention means, facilitating easier mounting and manufacturing.

The sealed design protects the bearing interior from contaminants, increasing longevity and reliability in various industrial environments. The steel cage ensures durability and maintains cage stability under operating conditions.

Sealed drawn cup needle roller bearing with steel cage. Suitable for high radial load, pure radial bearing applications. Compact design with low cross-sectional height saves space. Operates at relatively high speeds, usually running directly on the shaft.

No axial retention needed, easing mounting process. Protective sealing enhances bearing life and reliability.

This bearing is ideal for mechanical machinery and spares requiring compact, cost-effective, and efficient bearing solutions in industries such as manufacturing, automotive, and HVAC systems.
