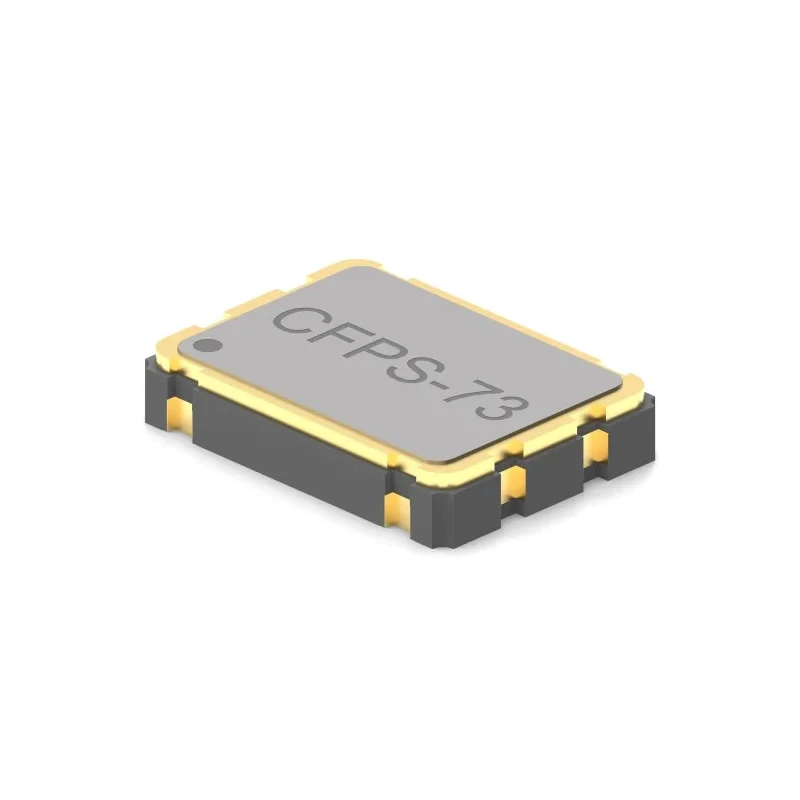

IQD 12MHz Crystal Clock Oscillator ±50 ppm HCMOS 7 x 5 mm LFSPXO019966

Free Delivery in India | Lowest Global Shipping Charges

IQD 12MHz Crystal Clock Oscillator ±50 ppm HCMOS 7 x 5 mm LFSPXO019966



Category Oscillator Brand IQD Condition New

Specifications

Country of Origin	India
Brand	IQD
Height	1.4mm
Length	7.2mm
Model	LFSPXO019966
Packaging	Bulk
Width	5.2mm
Series	CFPS-73
Maximum Operating Temperature	85°C
Output Frequency	12MHz
Package Type	7 x 5 mm
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS, REACH
Minimum Supply Voltage	3.3V
Load Capacitance	15pF
Oscillator Type	Crystal Clock Oscillator
Output Level	HCMOS

Key Features

This oscillator features a 12MHz output frequency suitable for precise timing applications.
It offers a frequency stability of ±50 ppm for reliable performance.
The device uses HCMOS output level and operates at a 3.3V supply voltage.
Designed to operate within a temperature range of -40°C to 85°C ensuring durability.
The compact ceramic package measures 7 x 5 mm with hermetic sealing for environmental protection.
Load capacitance is rated at 15pF for optimal oscillation conditions.
This oscillator adheres to RoHS and REACH standards, ensuring compliance with environmental regulations.

Product Description

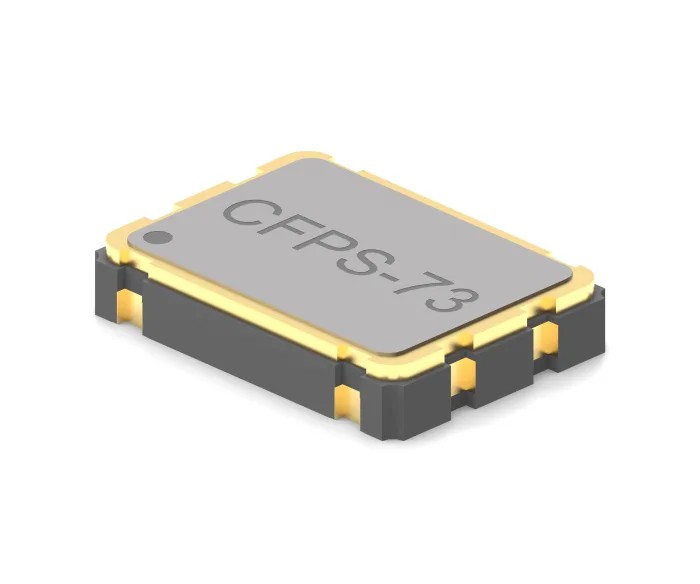

The IQD LFSPXO019966 12MHz Crystal Clock Oscillator is a precise and reliable oscillator designed for demanding timing applications. This crystal oscillator is housed within a standard 7 x 5 mm ceramic package with a hermetically sealed metal lid, providing robust protection against environmental factors.

Operating with a 3.3V supply voltage and offering an HCMOS output level, it ensures compatibility with digital circuits requiring stable clock signals. The device delivers a fixed output frequency of 12.0 MHz with a frequency stability of ±50 ppm, ideal for use cases needing consistent timing accuracy.

The oscillator maintains stable operation across a wide temperature range from -40°C to 85°C, making it suitable for industrial, telecommunications, instrumentation, automotive (non-automotive rated), and consumer electronics environments.

Featuring a 15pF load capacitance and a duty cycle of 45% or 55%, the oscillator meets stringent design requirements. It complies with RoHS and REACH directives, reflecting environmental responsibility in manufacturing.

This oscillator offers 12MHz frequency output for precise timing. Frequency stability is ±50 ppm ensuring accuracy under varying conditions. 3.3V supply voltage and HCMOS output compatible with most digital circuits. Operating temperature ranges from -40°C to 85°C for robust use cases.

Compact 7 x 5 mm hermetically sealed ceramic package provides durability. Load capacitance of 15pF optimizes oscillation performance. RoHS and REACH compliant, suitable for environmentally conscious designs.

This IQD crystal clock oscillator is an excellent choice for applications in electronics, instrumentation, communications, and industrial control. Its compact size and high stability make it suitable for PCB-mounted electronic systems requiring precise timing signals.
