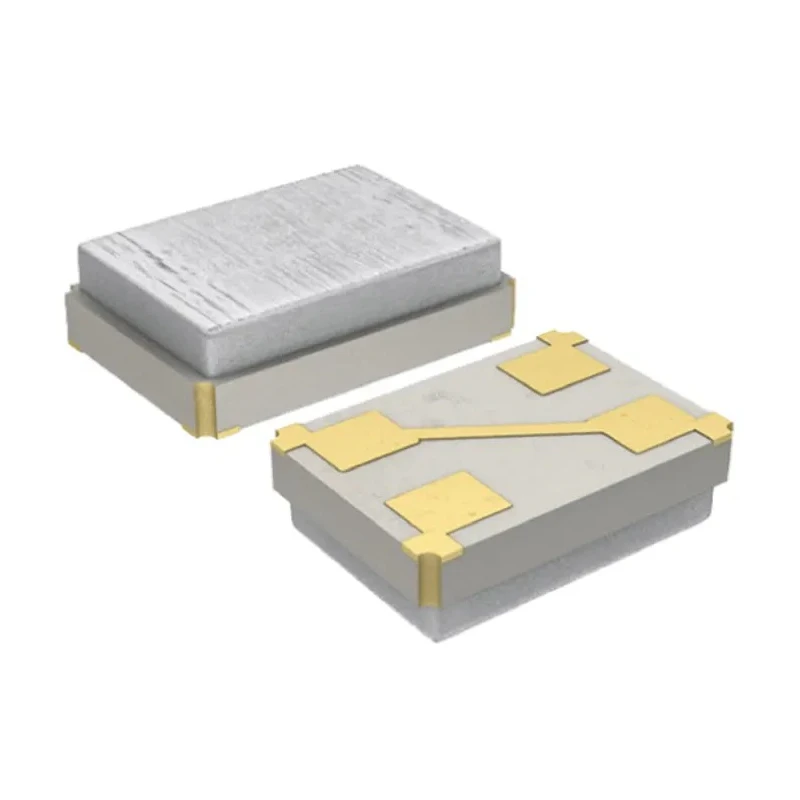

Murata 32 MHz Surface Mount Cap Chip Crystal Resonator ±20 ppm Frequency Tolerance 6pF Load Capacitance XRCGB32M000F2P00R0
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.7mm |
| Length | 2mm |
| Model | XRCGB32M000F2P00R0 |
| Packaging | Tape & Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | XRCGB |
| Maximum Operating Temperature | 85°C |
| Package Type | Cap Chip |
| Minimum Operating Temperature | -30°C |
| Standards/Approvals | REACH, RoHS |
| Pin Count | 3 |
| Standard Frequency | 32MHz |
| Load Capacitance | 6pF |
| Series Resistance | 100Ω |
Key Features
- The resonator features a small 2 mm by 1.6 mm package size with a height of 0.7 mm.
- It has a load capacitance of 6 pF ensuring stable oscillation in circuits.
- The device operates over a temperature range from -30°C to 85°C.
- Series resistance is rated at 100 Ω to optimize signal quality.
- It comes in a 3-pin configuration suitable for surface-mounted applications.
- The crystal provides high frequency stability with ±20 ppm tolerance.
- Packaged on tape and reel for efficient automated assembly processes.
- These resonators comply with RoHS and REACH environmental standards.
Product Description
Murata XRCGB32M000F2P00R0 is a high-precision 32 MHz crystal resonator designed as a surface mount device featuring a compact cap chip package of 2 mm length, 1.6 mm width, and 0.7 mm height. It offers a load capacitance of 6 pF and frequency tolerance of ±20 ppm, suitable for demanding timing and frequency control applications in electronic devices.
This crystal resonator is ideal for use in computers, visual equipment, and small portable electronics where accurate frequency stability is critical. The product operates reliably within a temperature range of -30°C to 85°C, with a series resistance of 100 Ω that helps maintain signal quality and reduces losses.
Its three-pin configuration and tape and reel packaging make it suitable for high-volume surface mount automated assembly processes, improving production efficiency. Compliant with RoHS and REACH standards, this component supports environmentally responsible manufacturing.
Manufactured in Japan, the XRCGB32M000F2P00R0 series reflects Murata's commitment to quality and reliability in electronic component production. The resonator features a compact 2 mm x 1.6 mm package size and 0.7 mm height.
Load capacitance set at 6 pF for consistent performance. High stability with ±20 ppm frequency tolerance. Operates between -30°C to 85°C for broad environmental applications. Series resistance at 100 Ω to optimize oscillation quality.
Three-pin surface mount design. RoHS and REACH compliance supporting eco-friendly production. Tape and reel packaging for automated assembly. Manufactured in Japan ensuring adherence to high-quality standards.
This Murata crystal resonator is extensively used in industrial, commercial, laboratory, and consumer electronics including PCs and visual equipment, providing precise frequency control where consistent timing is essential. It supports efficient manufacturing setups and environmentally compliant product lines.
Explore more Crystal Units and electronic components available at EnvMart for your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this model is 32 MHz.
This resonator has a length of 2 mm, a width of 1.6 mm, and a height of 0.7 mm.
It has a load capacitance of 6 pF, which ensures stable oscillation in circuits.
The frequency tolerance is ±20 ppm, providing high frequency stability.
The series resistance is rated at 100 Ω, optimizing signal quality.
It operates reliably within a temperature range of -30°C to 85°C.
It is packaged on tape and reel, suitable for efficient automated assembly processes.
This model supports surface mounting with a three-pin configuration.
It complies with RoHS and REACH environmental standards.
This resonator is manufactured in Japan, reflecting high-quality standards.
It is suitable for use in computers, visual equipment, and small portable electronics where accurate frequency stability is critical.
The package type is a cap chip, designed for compact applications.
