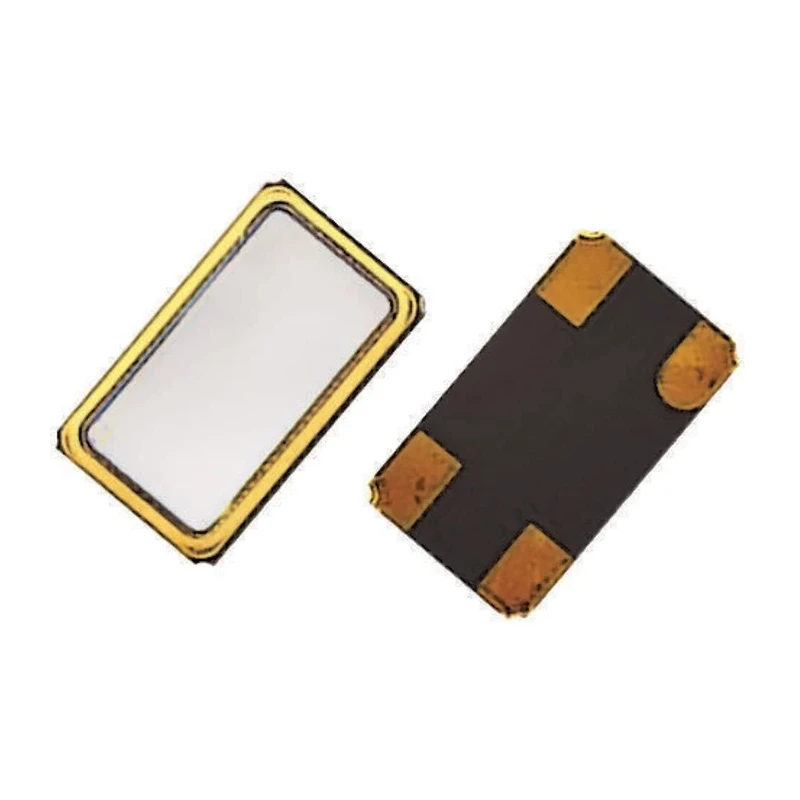

AKER 16 MHz Crystal ±30 ppm Surface Mount 4-Pin 6 mm x 3.5 mm x 1 mm C6S-16.000-12-3030-X

Name: AKER 16 MHz Crystal ±30 ppm Surface Mount 4-Pin 6 mm x 3.5 mm x 1 mm C6S-16.000-12-3030-X
Brand: Aker
SKU: 101145
Price: 20.22 USD
Availability: InStock



Category Crystal Units Brand Aker Condition New

Specifications

Country of Origin	Taiwan
Brand	AKER
Height	1mm
Length	6mm
Model	C6S-16.000-12-3030-X
Packaging	Tape & Reel
Width	3.5mm
Mount Type	Surface
Series	C6S
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	16MHz
Load Capacitance	12pF
Series Resistance	60Ω

Key Features

The crystal operates at a standard frequency of 16 MHz with ±30 ppm frequency tolerance.

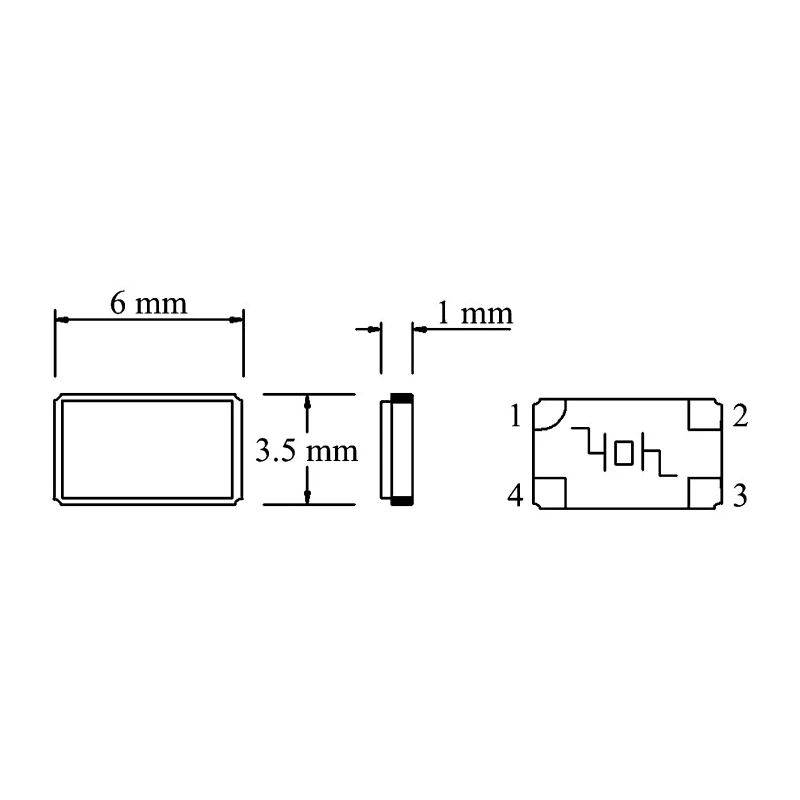

It features a 4-pin surface mount package measuring 6 mm in length, 3.5 mm in width, and 1 mm in height.
The load capacitance is specified at 12 pF, ensuring stable oscillation conditions.
Operating temperature ranges from -40°C to 85°C, suitable for a wide range of environmental conditions.
It has a series resistance of 60 Ω, compliant with RoHS standards.
The crystal is packaged in tape and reel format facilitating automated assembly processes.
Ideal for use in electronic circuits requiring precise timing and frequency stability.
Manufactured in Taiwan, Province Of China, maintaining high quality standards.

Product Description

AKER C6S-16.000-12-3030-X 16 MHz Crystal ±30 ppm Surface Mount 4-Pin is a ceramic-based component widely used for frequency control in electronic applications. This surface mount crystal unit features a compact size of 6 mm length, 3.5 mm width, and 1 mm height, making it suitable for modern electronic designs with space constraints.

The crystal operates at a stable frequency of 16 MHz with a frequency tolerance and stability of ±30 ppm, ensuring accurate and reliable timing in oscillator circuits. It supports a load capacitance of 12 pF, which is critical for achieving the desired oscillation characteristics in the circuit design.

Designed to operate within a temperature range of -40°C to 85°C, the crystal is durable and suitable for industrial, commercial, and consumer electronics applications. With a series resistance of 60 Ω, it meets electronic component standards and complies with RoHS directives, confirming its environmental friendliness.

The product is supplied in tape and reel packaging, enhancing production efficiency through compatibility with automated assembly lines. The crystal operates at 16 MHz frequency with ±30 ppm tolerance. 4-pin surface mount package with dimensions 6 mm x 3.5 mm x 1 mm.

Supports load capacitance of 12 pF for oscillator circuit stability. Wide operating temperature range from -40°C to 85°C. Meets RoHS standards and has a series resistance of 60 Ω. Packaging format is tape and reel for automated assembly.

Manufactured in Taiwan, Province Of China. Suitable for electronic applications requiring precise frequency control.

This crystal unit is commonly used in electronics manufacturing, power and connectors, heating ventilation and air conditioning systems, instrumentation, and laboratory equipment requiring precise oscillation signals.
