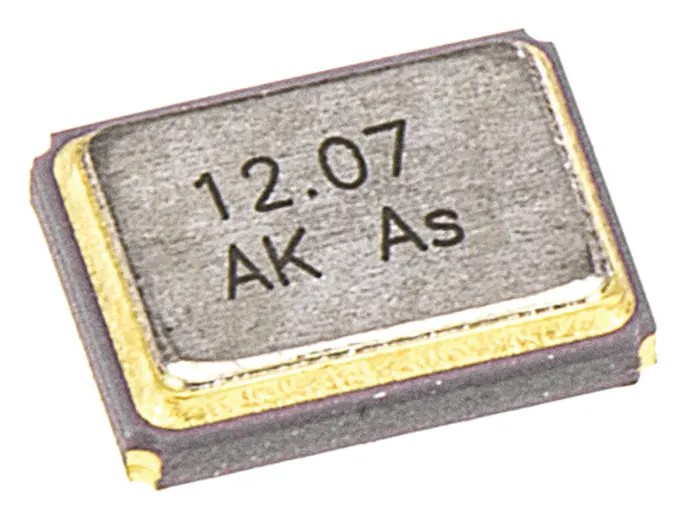

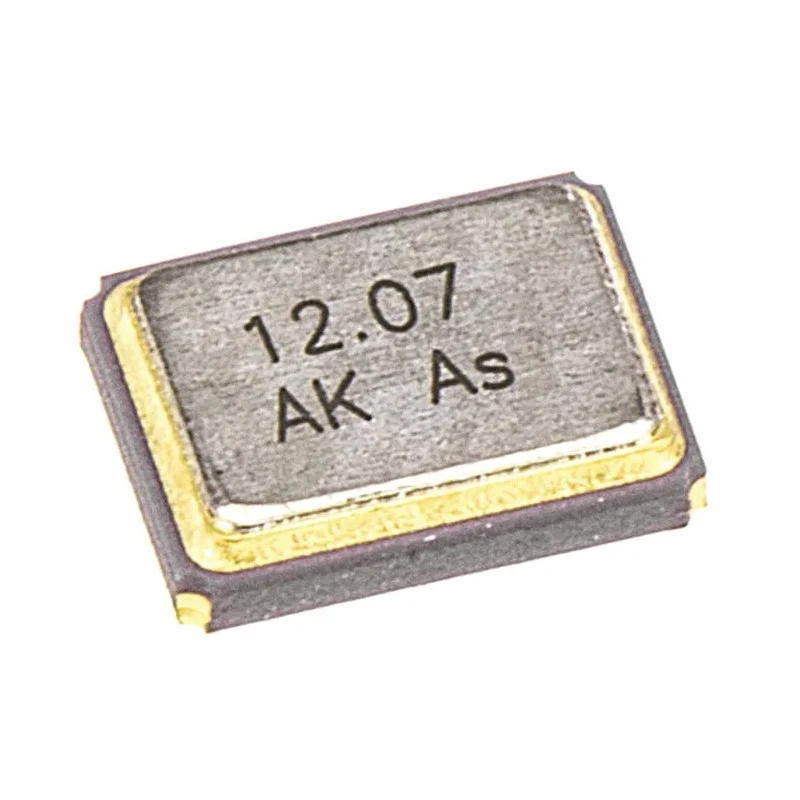

AKER 12 MHz Surface Mount Crystal ±10 ppm 4-Pin 3.2x2.5x0.75 mm C3E-12.000-12-1010-X
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | AKER |
| Height | 0.75mm |
| Length | 3.2mm |
| Model | C3E-12.000-12-1010-X |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | C3E |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 12MHz |
| Load Capacitance | 12pF |
| Series Resistance | 100Ω |
Key Features
- Standard frequency of 12 MHz ensures reliable oscillation performance.
- Surface mount design with compact dimensions of 3.2x2.5x0.75 mm allows for space-saving PCB integration.
- Load capacitance of 12 pF optimized for microprocessor crystal circuits.
- Packaged in tape and reel for automated assembly compatibility.
- Operational temperature range from -40°C to 85°C suits industrial environments.
- Series resistance of 100 Ω minimizes signal attenuation.
- Complies with RoHS standards ensuring environmental compliance.
- Constructed with ceramic case and metal lid for durability and shock resistance.
Product Description
AKER C3E-12.000-12-1010-X is a 12 MHz surface mount crystal unit designed for microprocessor and precision oscillator applications. Featuring a ±10 ppm frequency tolerance and stability, this crystal ensures high accuracy and reliability in frequency generation. Its 4-pin ceramic case with a metal seam-sealed lid provides ruggedness, making it suitable for use in industrial, commercial, and consumer electronic devices.

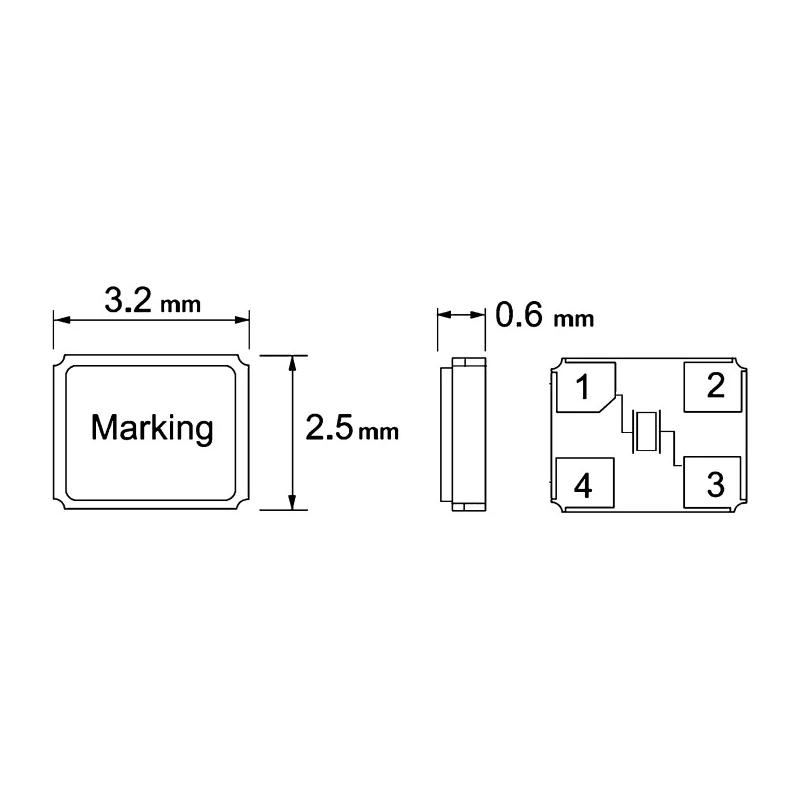

The crystal’s compact dimensions of 3.2 mm length, 2.5 mm width, and 0.75 mm height allow easy integration into densely populated printed circuit boards (PCBs). It supports a load capacitance of 12 pF and comes supplied on a tape and reel packaging, facilitating efficient automated pick-and-place assembly processes.
This C3E series component operates effectively over a wide temperature range from -40°C to +85°C and features a series resistance of 100 Ω, contributing to low signal loss and stable oscillation. The product complies with RoHS environmental standards, ensuring safe use in modern electronic equipment.
Applications include microprocessor clock generation, timing devices, communication modules, and other electronic circuits requiring precise frequency control. Standard frequency of 12 MHz ensures reliable oscillation performance.
Surface mount design with compact dimensions of 3.2x2.5x0.75 mm allows for space-saving PCB integration. Frequency tolerance and stability rated at ±10 ppm for precision applications. Load capacitance of 12 pF optimized for microprocessor crystal circuits.
Packaged in tape and reel for automated assembly compatibility. Operational temperature range from -40°C to 85°C suits industrial environments. Series resistance of 100 Ω minimizes signal attenuation. Complies with RoHS standards ensuring environmental compliance.
Constructed with ceramic case and metal lid for durability and shock resistance. Pin count of 4 enables stable mounting and electrical connectivity. Explore more Crystal Units and related electronic components at EnvMart to find the right parts for your PCB design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 12 MHz, ensuring reliable oscillation performance.
This model has compact dimensions of 3.2 mm in length, 2.5 mm in width, and 0.75 mm in height, allowing for space-saving PCB integration.
The load capacitance for this crystal unit is 12 pF, optimized for microprocessor crystal circuits.
It operates effectively over a temperature range from -40°C to +85°C, making it suitable for industrial environments.
The series resistance is 100 Ω, which minimizes signal attenuation.
It is packaged in tape and reel, facilitating automated assembly compatibility.
This unit uses surface mount technology, making it suitable for compact PCB designs.
It complies with RoHS standards, ensuring environmental compliance.
The pin count for this model is 4, allowing for stable mounting and electrical connectivity.
This crystal unit is suitable for applications such as microprocessor clock generation, timing devices, and communication modules.
It is constructed with a ceramic case and a metal lid, providing durability and shock resistance.
The frequency tolerance is rated at ±10 ppm, ensuring high accuracy and reliability in frequency generation.
