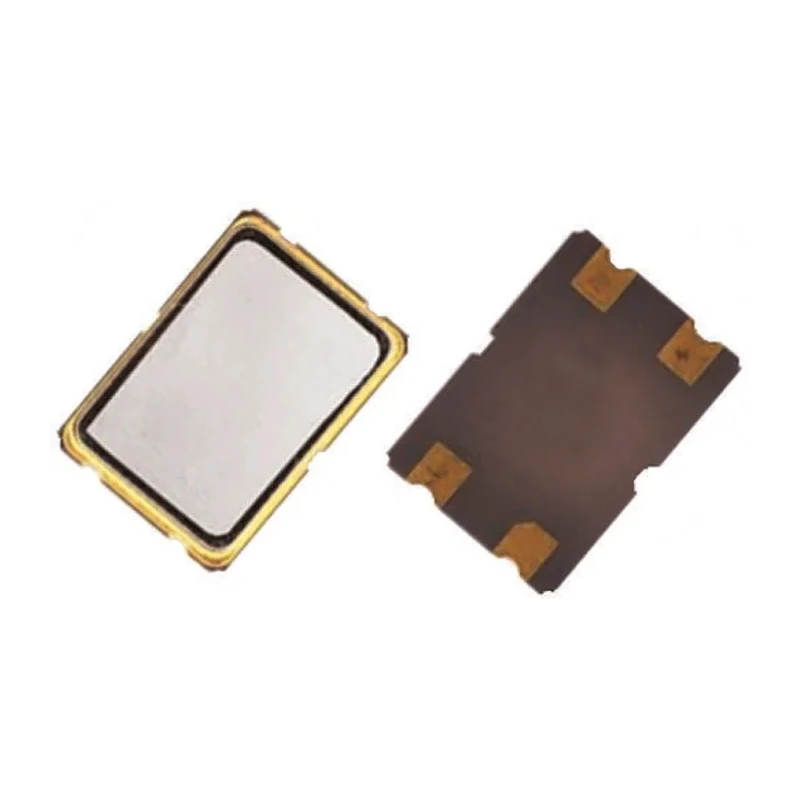

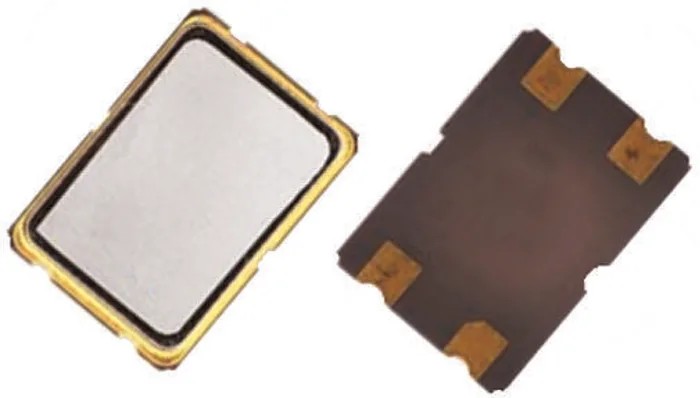

AKER 14.7456MHz Clock Oscillator ±50 ppm HCMOS 4-Pin Surface Mount S73305-14.7456-X-15
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | AKER |
| Height | 1.3mm |
| Length | 7mm |
| Model | S73305-14.7456-X-15 |
| Packaging | Tape & Reel |
| Width | 5mm |
| Mount Type | Surface |
| Series | S7 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 14.7456MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS, Pb - Lead Free |
| Pin Count | 4 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 1.8V |
| Oscillator Type | Clock |
| Output Level | HCMOS |
Key Features
- Operates at an output frequency of 14.7456MHz with ±50 ppm frequency stability.
- Features HCMOS output level suitable for digital circuits.

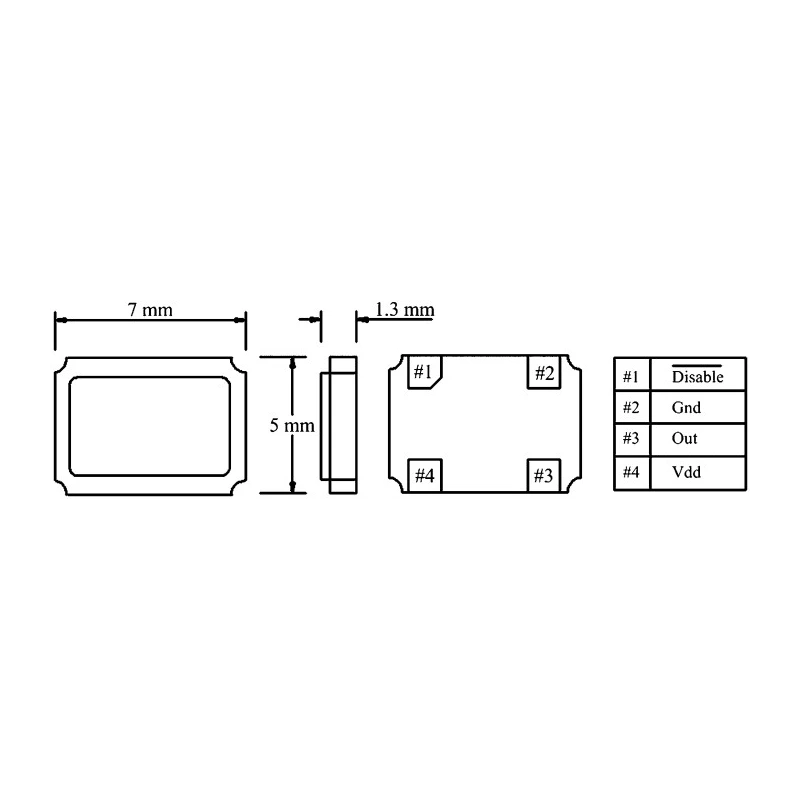

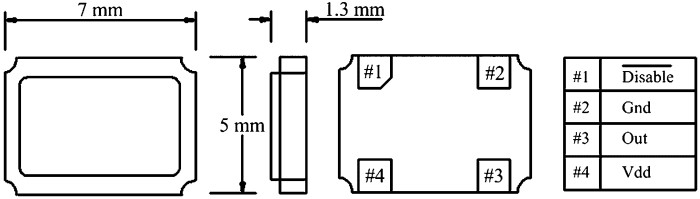

- Compact 4-pin surface mount package measuring 7mm x 5mm x 1.3mm.
- Operating temperature range from -40°C to 85°C ensures reliable performance in various environments.
- Works with a supply voltage range from 1.8V to a maximum of 5V.
- RoHS and Pb - Lead Free compliant, ensuring environmental safety.
- Packaged in tape and reel format for easy automated PCB assembly.
- Manufactured under the S7 series, originating from Taiwan, Province Of China.
Product Description
AKER S73305-14.7456-X-15 14.7456MHz Clock Oscillator is designed for precise timing control in a wide variety of electronic circuits requiring clock signals. This clock oscillator operates at an output frequency of 14.7456MHz with excellent frequency stability of ±50 ppm, delivering reliable and accurate performance suitable for industrial, telecommunications, consumer electronics, and other technical applications.
Equipped with a 4-pin surface mount package, the oscillator is compact in size (7mm length x 5mm width x 1.3mm height) facilitating space-saving circuit layouts. It supports a voltage supply range of 1.8V minimum to a maximum of 5V, enabling compatibility with various power environments.
The output level utilizes HCMOS technology, providing a clean digital signal output optimized for microcontroller and digital system integration. The operating temperature range from -40°C to 85°C allows robust operation across diverse conditions including industrial and commercial applications.
Compliance with RoHS and Lead-Free standards ensures the product meets environmental regulations, ideal for modern assembly processes. Supplied in tape and reel packaging, it supports efficient volume manufacturing and automated surface-mount technology (SMT) assembly processes.
This oscillator is part of the AKER S7 series and is manufactured in Taiwan, Province Of China, reflecting high quality and consistent performance standards. Operates at a 14.7456MHz frequency with ±50 ppm stability. HCMOS output level supports digital electronics integration.
Compact 7x5x1.3mm 4-pin surface mount package. Wide operating temperature range from -40°C to 85°C. Supply voltage from 1.8V to 5V offers application flexibility. RoHS and Pb - Lead Free compliant for environmental safety.
Tape & reel packaging enables efficient automated assembly. Manufactured in Taiwan, Province Of China under the S7 series.
This high-stability clock oscillator is suitable for use in industrial controls, communication systems, laboratory instruments, embedded system designs, and commercial electronic equipment where timing accuracy and reliability are critical. Browse more products from AKER and related crystal Oscillators at EnvMart for your precise electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The oscillator operates at an output frequency of 14.7456MHz.
It has a frequency stability of ±50 ppm.
The operating temperature range is from -40°C to 85°C.
It supports a supply voltage range from 1.8V to a maximum of 5V.
The output level utilizes HCMOS technology, providing a clean digital signal output.
The compact surface mount package measures 7mm in length, 5mm in width, and 1.3mm in height.
It is packaged in tape and reel format, facilitating efficient automated PCB assembly.
This model is part of the AKER S7 series.
It is compliant with RoHS and is Pb - Lead Free, ensuring environmental safety.
It is suitable for industrial controls, communication systems, laboratory instruments, and embedded system designs.
The oscillator features a 4-pin configuration.
It is manufactured in Taiwan, Province Of China.
