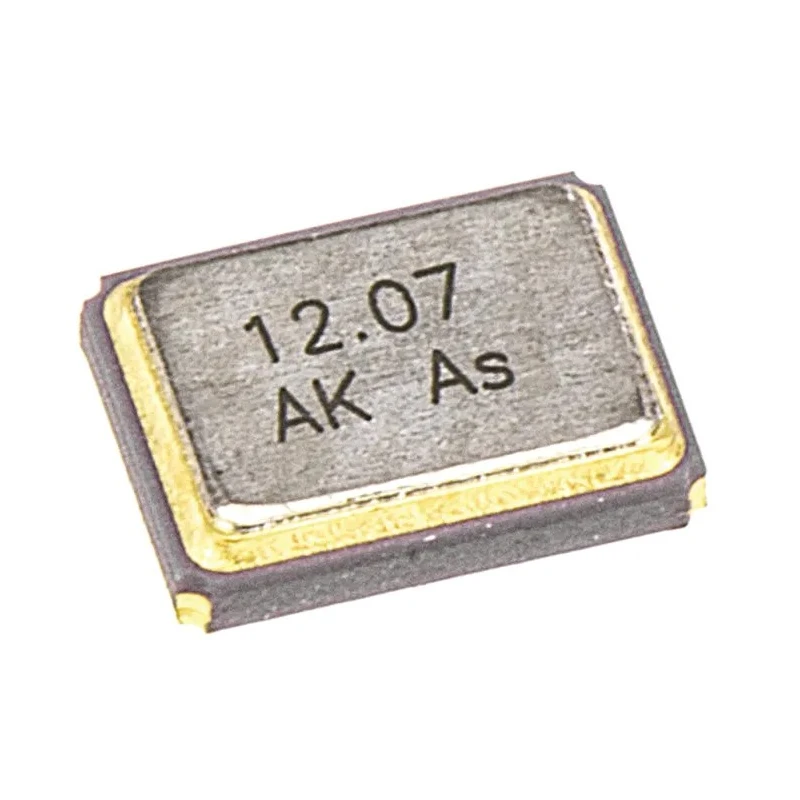

AKER 12 MHz Crystal ±10 ppm Surface Mount 4-Pin 0.75 mm Height 3.2 mm Length 2.5 mm Width C3E-12.000-12-1010-X
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | AKER |
| Height | 0.75mm |
| Length | 3.2mm |
| Model | C3E-12.000-12-1010-X |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | C3E |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 12MHz |
| Load Capacitance | 12pF |
| Series Resistance | 100Ω |
| AKER 12 MHz Crystal ±30 ppm Surface Mount 4-Pin 0.75 mm 3.2 mm 2.5mmBrand | AKER |
Key Features
- This crystal operates at 12 MHz standard frequency with a frequency tolerance and stability of ±10 ppm.
- The device features a surface mount package with 4 pins for easy PCB integration.
- It has a load capacitance of 12 pF suitable for microprocessor applications.
- The crystal operates reliably within a temperature range of -40°C to 85°C.
- The robust ceramic package is sealed with a metal lid to ensure environmental resistance.
- Series resistance is rated at 100 Ω to optimize oscillation performance.
- Packaging is tape & reel, supporting automated assembly processes.
- This product complies with RoHS standards ensuring environmentally friendly manufacturing.
Product Description
AKER C3E-12.000-12-1010-X is a 12 MHz crystal unit with a frequency tolerance and stability of ±10 ppm, designed for surface mount applications requiring high precision and reliability. It features a ceramic package with a metal lid that provides excellent resistance against environmental factors such as shock and vibration, making it ideal for microprocessor oscillator circuits.
The compact dimensions of 3.2 mm length, 2.5 mm width, and 0.75 mm height facilitate integration into space-constrained designs. Equipped with 4 pins, this surface mount crystal supports standard 12 pF load capacitance, ensuring compatibility with a wide range of electronic components. It operates within a temperature range from -40°C to 85°C, suitable for industrial and commercial electronic applications.
The series resistance of 100 Ω aids stable frequency generation, critical for timing and control circuits in industrial, laboratory, and electronic communication equipment. This crystal unit is packaged in tape and reel format, facilitating high-volume automated assembly lines with minimal handling time. The product is RoHS compliant, supporting environmental and safety regulations.
This 12 MHz crystal unit features a ±10 ppm frequency tolerance and stability. Surface mount type with a compact 4-pin ceramic package. Load capacitance is 12 pF for microprocessor compatibility. Operates between -40°C and 85°C temperature range.
Series resistance rated at 100 Ω for optimized performance. Package includes tape and reel for assembly efficiency. Environmental resistance provided by seam-sealed metal lid design. RoHS compliant, suitable for industrial electronics and communication devices.
This product is ideal for use in industrial electronics, manufacturing equipment, communication devices, and laboratory instruments requiring precise and stable frequency reference components.
Browse EnvMart for more crystal units and related electronic passive components to support your design and manufacturing needs.
Explore more products in our Mounting Equipment category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 12 MHz.
It has a frequency tolerance and stability of ±10 ppm.
The load capacitance is 12 pF, making it suitable for microprocessor applications.
This crystal operates reliably within a temperature range of -40°C to 85°C.
The series resistance is rated at 100 Ω, which helps optimize oscillation performance.
It is packaged in tape and reel format, supporting automated assembly processes.
The dimensions are 3.2 mm in length, 2.5 mm in width, and 0.75 mm in height.
This model features a surface mount package with 4 pins for easy PCB integration.
Yes, this product complies with RoHS standards, ensuring environmentally friendly manufacturing.
It is ideal for use in industrial electronics, communication devices, and laboratory instruments requiring precise frequency references.
The ceramic package with a metal lid provides excellent resistance against environmental factors such as shock and vibration.
This crystal unit belongs to the C3E series.
