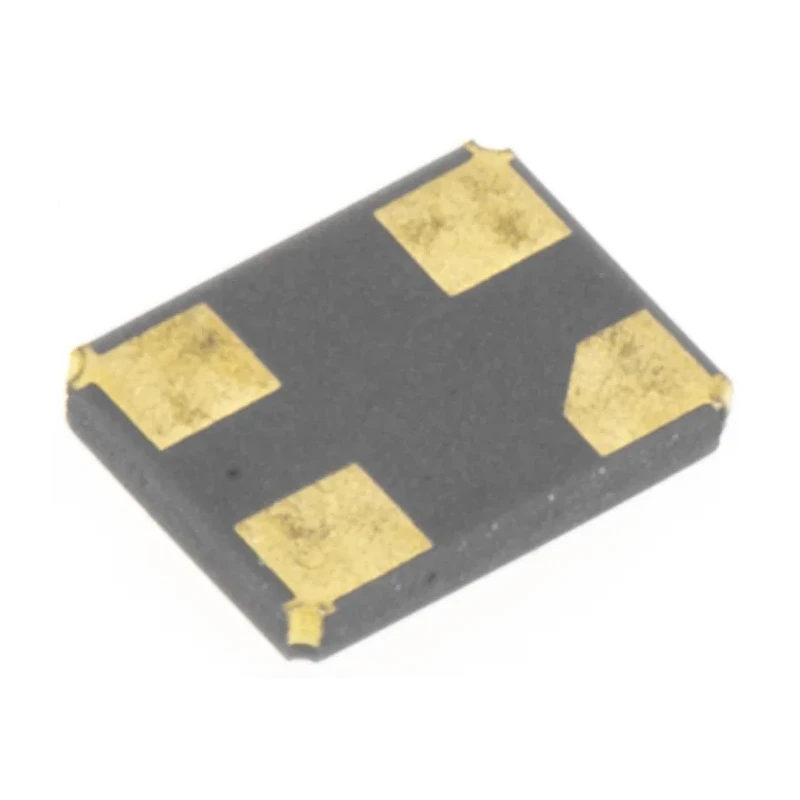

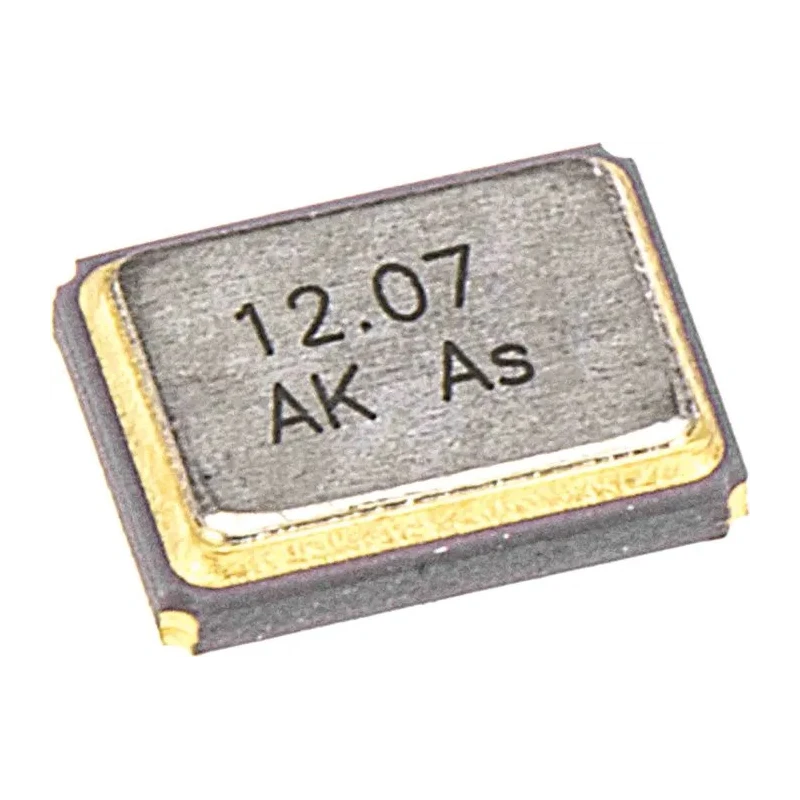

AKER 12 MHz Crystal ±30 ppm Surface Mount 4-Pin 0.75 mm x 3.2 mm x 2.5 mm C3E-12.000-12-3030-X
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | AKER |
| Height | 0.75mm |
| Length | 3.2mm |
| Model | C3E-12.000-12-3030-X |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | C3E |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 12MHz |
| Load Capacitance | 12pF |
| Series Resistance | 100Ω |
| AKER 12 MHz Crystal ±10 ppm Surface Mount 4-Pin 0.75 mm 3.2 mm 2.5mmBrand | AKER |
Key Features
- Standard frequency of 12 MHz with a stability tolerance of ±30 ppm.

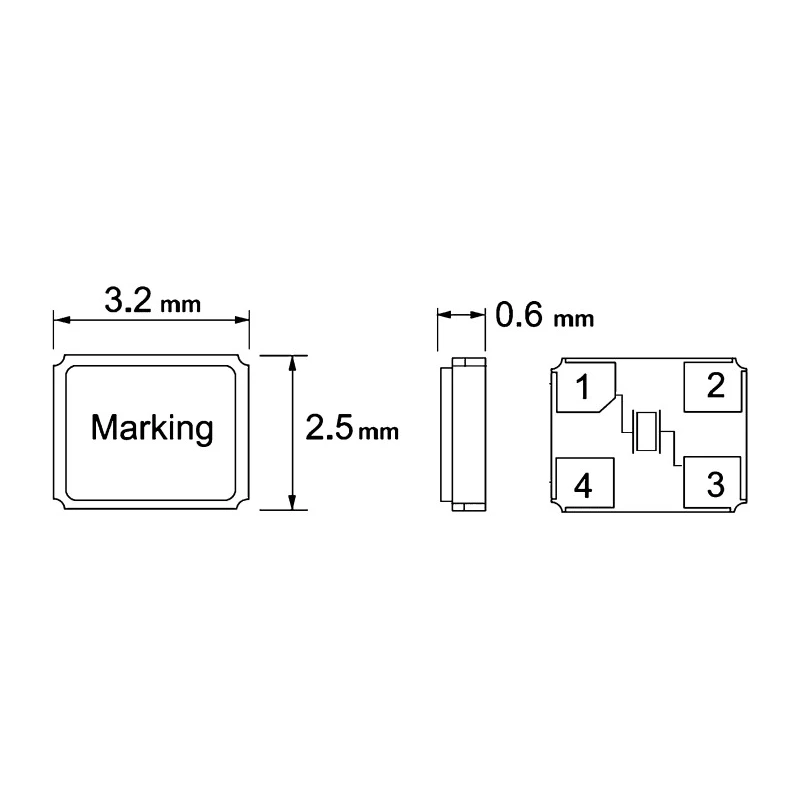

- Surface mount package with a ceramic case and metal lid measuring 3.2 mm length, 2.5 mm width, and 0.75 mm height.
- Features a 4-pin configuration suitable for microprocessor clocking applications.
- Load capacitance of 12 pF ensuring stable oscillation in circuit designs.
- Operating temperature range from -40°C to 85°C for reliable performance in various environments.
- Series resistance of 100 Ω to optimize signal quality.
- RoHS compliant and manufactured under the C3E series without automotive certification.
- Packaged in tape & reel format for automated assembly processes.
Product Description
AKER C3E-12.000-12-3030-X 12 MHz Crystal ±30 ppm Surface Mount 4-Pin is a low-profile, high-reliability crystal unit designed for microprocessor and other precision electronic applications. It features a surface mount ceramic case with a seam-sealed metal lid protecting the crystal element, ensuring excellent stability and durability in demanding environments.
The crystal operates at a standard frequency of 12 MHz with a frequency tolerance and stability of ±30 ppm, suitable for timing and frequency control in digital circuits. The device is configured with 4 pins and has a package size specifically designed for surface mount technology: length 3.2 mm, width 2.5 mm, and height 0.75 mm.
This crystal unit has a load capacitance of 12 pF and a series resistance of 100 Ω, optimizing the oscillation performance for various microprocessor and clock system applications. It is rated for operation within a temperature range of -40°C to 85°C, making it robust for industrial and consumer electronics environments.
The product is RoHS compliant, reflecting adherence to environmental and safety standards. It comes in a tape and reel packaging to facilitate efficient automated PCB assembly. The crystal unit belongs to the C3E series and is manufactured in Taiwan, Province Of China.
Its compact surface mount design and precise frequency characteristics make it ideal for use in industrial automation, telecommunications, consumer electronics, and embedded systems. The AKER C3E-12.000-12-3030-X crystal balances performance and durability for professional electronic manufacturing and design.
Standard frequency of 12 MHz with ±30 ppm tolerance. Surface mount ceramic package with protected metal lid. 4-pin configuration suitable for microprocessor timing. Load capacitance of 12 pF for stable oscillation. Operating temperature range: -40°C to 85°C.
Series resistance of 100 Ω. RoHS compliant and environmentally friendly. Tape and reel packaging for automated assembly. Made in Taiwan, Province Of China. Explore more electronic components and crystal units on EnvMart for your precision timing and oscillator needs.
Explore more products in our Mounting Equipment category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 12 MHz.
It operates within a temperature range of -40°C to 85°C.
The load capacitance of this model is 12 pF, ensuring stable oscillation in circuit designs.
The series resistance is 100 Ω, which helps optimize signal quality.
The dimensions are 3.2 mm in length, 2.5 mm in width, and 0.75 mm in height.
It is packaged in tape and reel format for automated assembly processes.
This model features a 4-pin configuration.
Yes, this crystal unit is RoHS compliant, adhering to environmental and safety standards.
It is suitable for microprocessor clocking applications and various precision electronic applications.
This model uses a surface mount design.
It is manufactured in Taiwan, Province Of China.
This crystal belongs to the C3E series.
