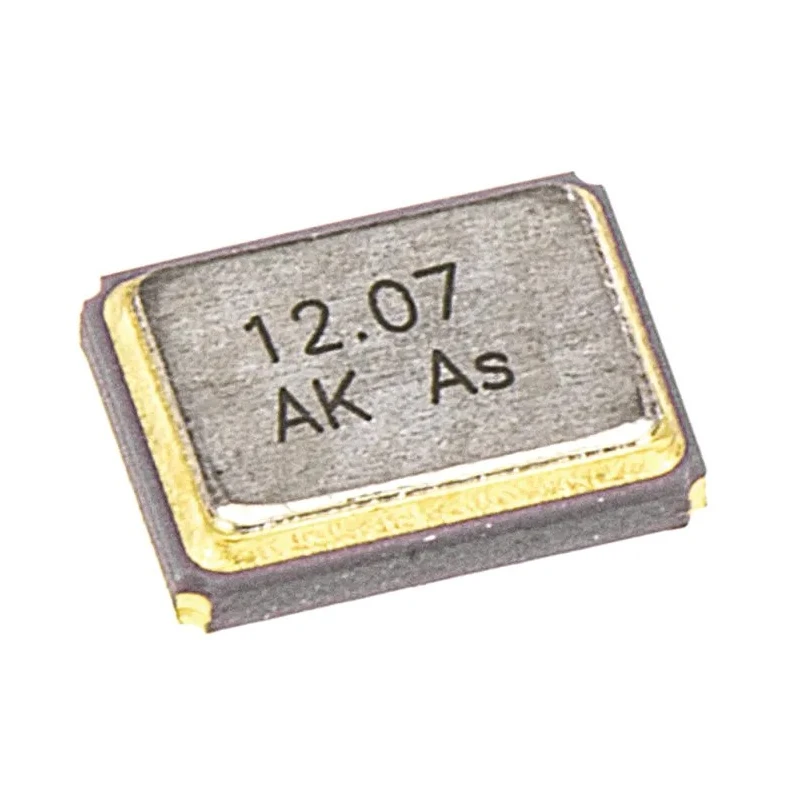

AKER 16 MHz Surface Mount 4-Pin Crystal ±30 ppm 12pF Load Capacitance 3.2 x 2.5 x 0.75 mm C3E-16.000-12-3030-X

Free Delivery in India | Lowest Global Shipping Charges

AKER 16 MHz Surface Mount 4-Pin Crystal ±30 ppm 12pF Load Capacitance 3.2 x 2.5 x 0.75 mm C3E-16.000-12-3030-X

Name: AKER 16 MHz Surface Mount 4-Pin Crystal ±30 ppm 12pF Load Capacitance 3.2 x 2.5 x 0.75 mm C3E-16.000-12-3030-X
Brand: Aker
SKU: 312978
Price: 0.45 USD
Availability: InStock



Category Mounting Equipment Brand Aker Condition New

Specifications

Country of Origin	Taiwan
Brand	AKER
Height	0.75mm
Length	3.2mm
Model	C3E-16.000-12-3030-X
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Series	C3E
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	16MHz
Load Capacitance	12pF
Series Resistance	100Ω
RS PRO 16MHz Crystal ±30ppm SMT 4-Pin 3.2 x 2.5 x 0.7mmBrand	RS PRO

Key Features

Standard frequency of 16 MHz ensures precise oscillator performance.
Surface mount 4-pin design facilitates easy PCB integration.
Offers frequency stability and tolerance of ±30 ppm over operating conditions.

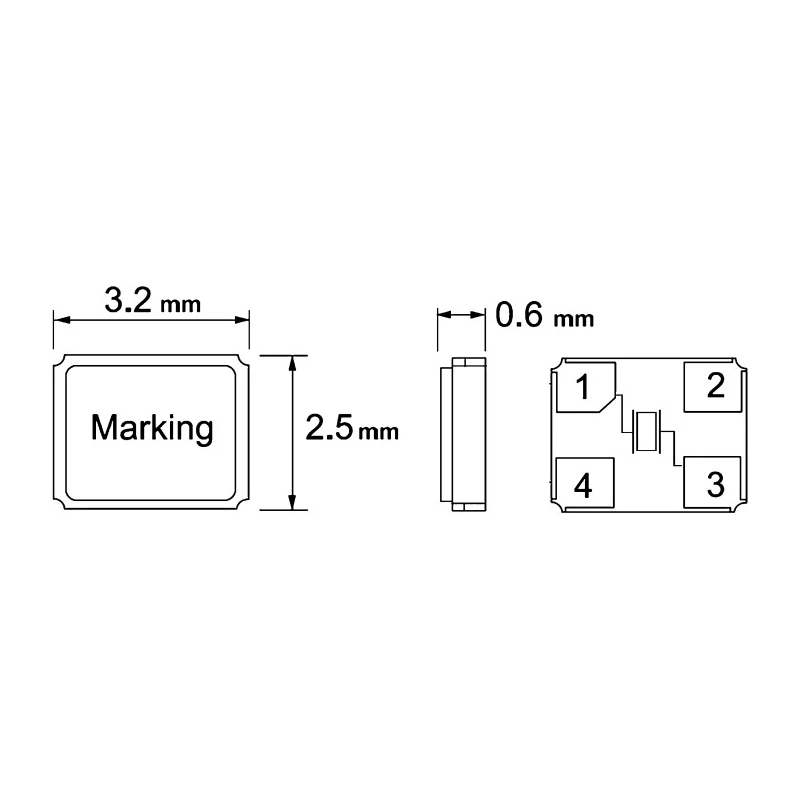

Compact dimensions of 3.2 mm length, 2.5 mm width, and 0.75 mm height.
Tape and reel packaging supports automated assembly processes.
Wide operating temperature range from -40°C to 85°C for reliable use in various environments.
Series resistance specified at 100 Ω for optimal oscillator circuit compatibility.
Compliant with RoHS environmental standards ensuring safe and responsible use.

Product Description

AKER presents the C3E series 16 MHz crystal unit model C3E-16.000-12-3030-X designed as a surface mount device with a 4-pin configuration. This crystal features a frequency tolerance of ±30 ppm and load capacitance of 12pF, making it suitable for microprocessor oscillator applications requiring high precision and stability. The crystal is housed in a low-profile ceramic case measuring 3.2 mm in length, 2.5 mm in width, and 0.75 mm in height, enabling compact PCB designs.

Its tape and reel packaging format supports automated assembly lines, enhancing production efficiency. Engineered to perform reliably across a wide temperature range from -40°C to 85°C, this crystal unit maintains consistent frequency stability under varying conditions. The series resistance of 100 Ω ensures compatibility with oscillator circuits designed to manage this parameter effectively.

Manufactured to meet RoHS compliance, the C3E-16.000-12-3030-X supports environmentally responsible electronics manufacturing. Typical applications include industrial, commercial, automotive electronics (non-automotive certified), and instrumentation sectors that require accurate and stable timing sources.

Standard frequency of 16 MHz ensures precise oscillator performance. 4-pin surface mount design enables seamless PCB integration. Frequency tolerance and stability of ±30 ppm provide reliable timing accuracy. Compact ceramic packaging allows for space-saving circuit layouts.

Industry-standard tape and reel packaging facilitates manufacturing automation. Wide operating temperature range from -40°C to 85°C supports diverse environmental conditions. Low series resistance of 100 Ω optimizes oscillator efficiency.

RoHS compliant for environmentally safe use.

This AKER crystal unit is an ideal choice for electronic engineers and manufacturers seeking a dependable 16 MHz timing source with surface mount convenience and robust performance. Browse more electronics components and control your project’s quality with AKER products at EnvMart.
