Ruland Aluminium Set Screw Style Flexible Coupler 12.7 mm OD 3 mm Bore 5.6 mm Length MOST13-3-A

Ruland MOST13-3-A aluminium set screw style flexible coupler with a 12.7 mm outside diameter, 3 mm bore diameter, and a hub length of 5.6 mm is engineered for use in mechanical power transmission and motion control systems. This coupling supports shafts with slight misalignments and provides torque overload protection.

The coupling is manufactured from black anodised aluminium hubs and features a finished bore with no keyway, suitable for precise shaft connections where keyways are not desired. It supports a maximum speed of 4500 rpm, making it applicable in a variety of light industrial and precision motion control applications including stepper and servo motors.

The Oldham coupling design comprises two hubs linked by a centre torque disc, which can absorb torque overloads by breaking cleanly, thereby protecting the connected machinery. The set screw style hubs use one set screw each on 13 mm and 19 mm sizes for secure shaft attachment. Centre discs are replaceable and made from acetal or nylon, allowing ease of maintenance and extended service life.

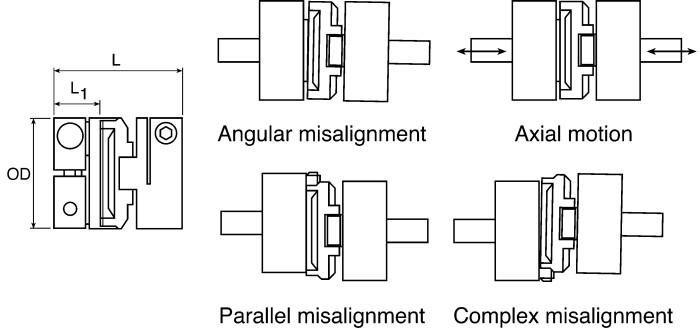

This coupling accommodates minor misalignments: angular misalignment of up to 0.5°, parallel misalignment of 0.1 mm, and axial misalignment of 0.1 mm, ensuring smooth mechanical operation even with slight shaft deviations.

Compliant with RoHS and REACH standards, this product provides environmentally responsible performance. With manufacturing origin in the United States, it meets high-quality production criteria.

Constructed from black anodised aluminium for corrosion resistance and durability. Finished bore is without keyway, designed for specific shaft couplings. Maximum operating speed rated at 4500 rpm suitable for high-speed applications.

Supports angular misalignment of 0.5° and parallel misalignment of 0.1 mm. Set screw style securing ensures stable and secure attachment to shafts. Oldham coupling design provides torsional rigidity while allowing for misalignment and torque protection.

Replaceable centre discs enhance maintenance ease and operational longevity. Ideal for light industrial, motion control, and precision equipment applications. Complies with RoHS and REACH for environmental and safety compliance.

Manufactured in the United States ensuring stringent quality standards.

Choose this Ruland MOST13-3-A flexible coupler for efficient and reliable power transmission in a variety of industrial and automation applications. Browse more from Ruland and Flexible Coupler selections on EnvMart.
