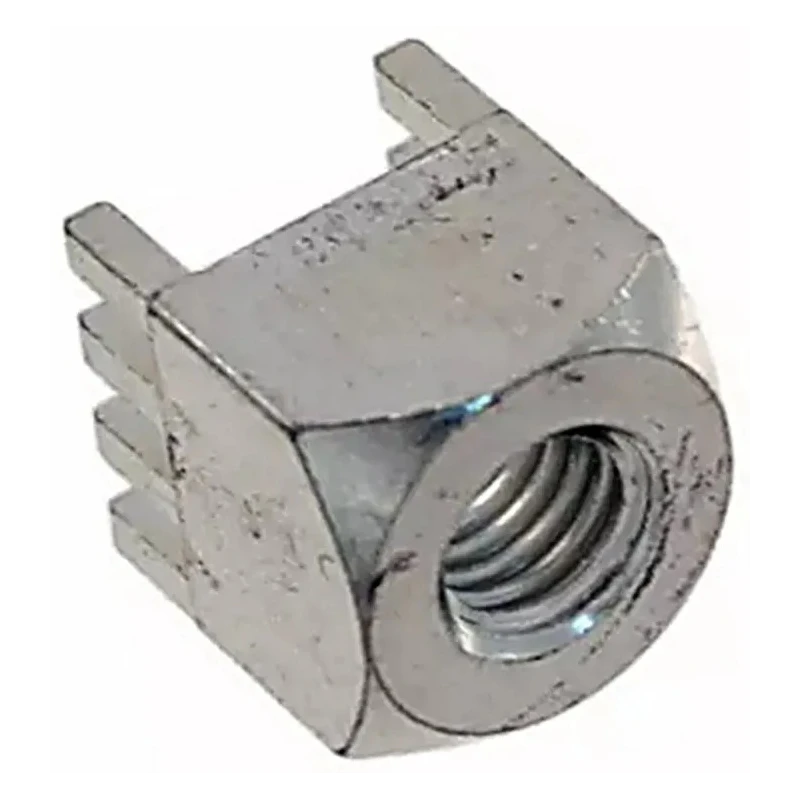

Wurth Elektronik Brass Screw Terminal Vertical 160A 8 Legs 4 Rows Tin Plated Brass REDCUBE Series 7460307
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Orientation | Vertical |
| Body Material | Brass |
| Current | 160A |
| Model | 7460307 |
| Series | REDCUBE |
| Number of Legs | 8 |
| Number of Rows | 4 |
| Pitch | 2.54mm |
| Body Plating | Tin |
| Standards/ApprovalsDIN ISO 2768-1m, RoHS, DIN 76-1 | 2016-08, DIN EN 61760-2 |
Key Features
- The terminal supports up to 160 amperes of current transfer.
- It features 8 legs arranged in 4 rows for secure connections.
- Manufactured from brass with tin plating to ensure durability.
- Vertical orientation enables compact PCB mounting and easy integration.
- Press-fit mounting provides gas-tight electrical connections without the need for soldering.
- Rugged construction offers excellent resistance to vibration and shock.
- Compatible with a wide range of industrial, automotive, and renewable energy applications.
Product Description
Wurth Elektronik 7460307 Brass Screw Terminal Vertical 160A is a high-quality power element designed for transferring currents up to 160 amperes onto PCB assemblies. Its vertical screw terminal configuration with 8 legs arranged in 4 rows enables secure and reliable PCB mounting using press-fit technology.
The terminals are constructed from brass, providing excellent electrical conductivity and mechanical strength, and feature tin plating for corrosion resistance. The press-fit technology ensures gas-tight electrical connections that resist vibration and shock, eliminating the need for soldering and reducing thermal load on PCBs during assembly.
This product belongs to the REDCUBE series of power elements designed to accommodate high-current applications in diverse industries such as industrial automation, renewable energy (wind and solar power), medical equipment, agricultural machinery, and automotive systems. Typical uses include power supplies, converters, battery management systems, emergency power backup, and DC-AC converters.
The terminal meets rigorous standards including DIN ISO 2768-1m, DIN 76-1:2016-08, DIN EN 61760-2, and is RoHS compliant, ensuring safety, quality, and environmental responsibility.
The terminal supports up to 160 amperes of current transfer. Features 8 legs in 4 rows for stable mechanical mounting. Brass body with tin plating provides corrosion resistance. Vertical orientation allows space-saving PCB layouts.
Press-fit connection enables reliable gas-tight electrical contact without soldering. Rugged design resists vibration and shock in demanding environments. Application versatility across automotive, industrial, agricultural, and medical sectors.
Certified to multiple international standards for quality assurance.
Wurth Elektronik’s REDCUBE brass screw terminal 7460307 is an essential component for engineers designing PCB power distribution systems requiring high current handling with long-term reliability. Explore more connectors and Screw Terminals from Wurth Elektronik and other top brands here at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current transfer of 160 amperes.
It features 8 legs arranged in 4 rows for secure connections.
The terminal is designed for vertical orientation, allowing for compact PCB mounting.
It is constructed from brass and features tin plating for corrosion resistance.
It meets several standards including DIN ISO 2768-1m, DIN 76-1:2016-08, and DIN EN 61760-2, and is RoHS compliant.
This model utilizes press-fit mounting technology to ensure gas-tight electrical connections without soldering.
It is suitable for a wide range of applications in industrial automation, renewable energy, automotive systems, and medical equipment.
The pitch of this terminal is 2.54mm.
The tin plating provides corrosion resistance, enhancing the longevity and reliability of the terminal's connections.
Its press-fit technology reduces thermal load during assembly and eliminates the need for soldering, facilitating easier integration into PCB designs.
The terminal is manufactured in China.
