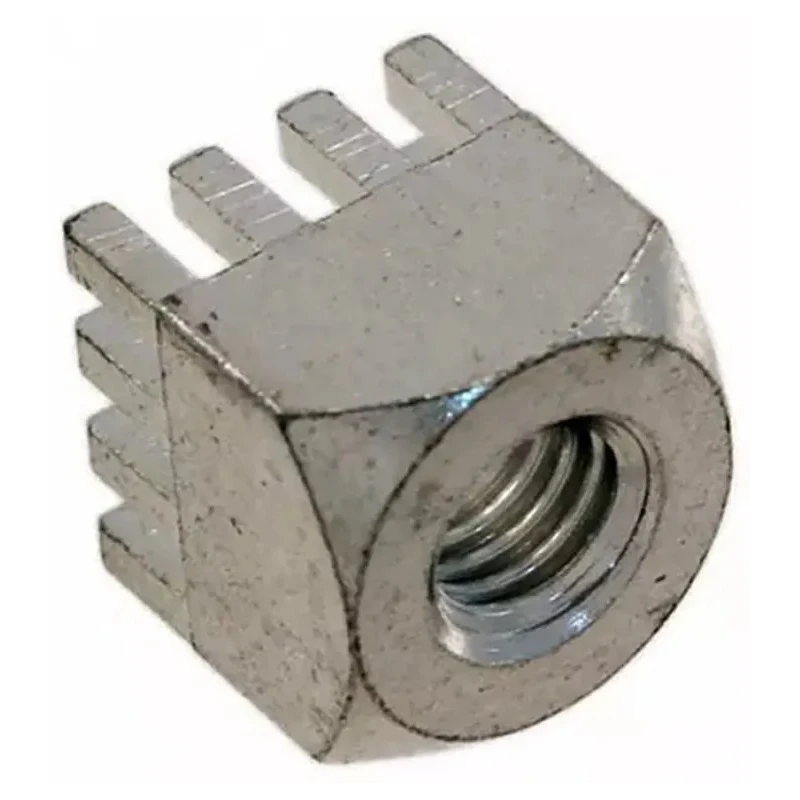

Wurth Elektronik Brass Screw Terminal Vertical 175A REDCUBE Series 7460408

Wurth Elektronik 7460408 Brass Screw Terminal Vertical 175A REDCUBE Series is engineered for transferring high currents up to approximately 300 amperes onto printed circuit boards (PCB) with excellent reliability.

This screw terminal features a vertical orientation and a sturdy construction made of brass body material with tin plating for enhanced electrical conductivity and corrosion resistance.

The terminal employs advanced press-fit technology which ensures a gas-tight electrical connection to the PCB, offering higher retention force and greater resistance to vibration and shock compared to soldered or screwed connections. This technology eliminates the need for soldering, thereby preventing thermal damage to PCBs during assembly.

Designed with 12 legs arranged in 4 rows and a standard pitch of 2.54 mm, the terminal supports stable mechanical and electrical mounting while enabling straightforward press-in assembly using simple tooling.

These attributes make the Wurth Elektronik REDCUBE brass screw terminals highly reliable and cost-effective for multiple industrial applications including power supplies, converters, emergency battery systems, and renewable energy setups such as wind and solar power.

Transfers up to approximately 300A current reliably onto PCB. Press-fit mounting technology ensures gas-tight and vibration resistant connections. Solid brass body with tin plating for durability and corrosion resistance.

Vertical orientation with 12 legs and pitch of 2.54 mm supports secure PCB integration. Eliminates soldering requirements, reducing thermal load on PCB during assembly. Rugged design suitable for industrial, medical, automotive, and renewable energy sectors.

Simple tooling and production process integration increase manufacturing efficiency.

The Wurth Elektronik REDCUBE series Screw Terminals provide a proven, reliable, and economical solution to meet demanding high-current PCB connection requirements. Explore additional electronic components and wire terminal solutions on EnvMart for diversified industrial and commercial applications.
