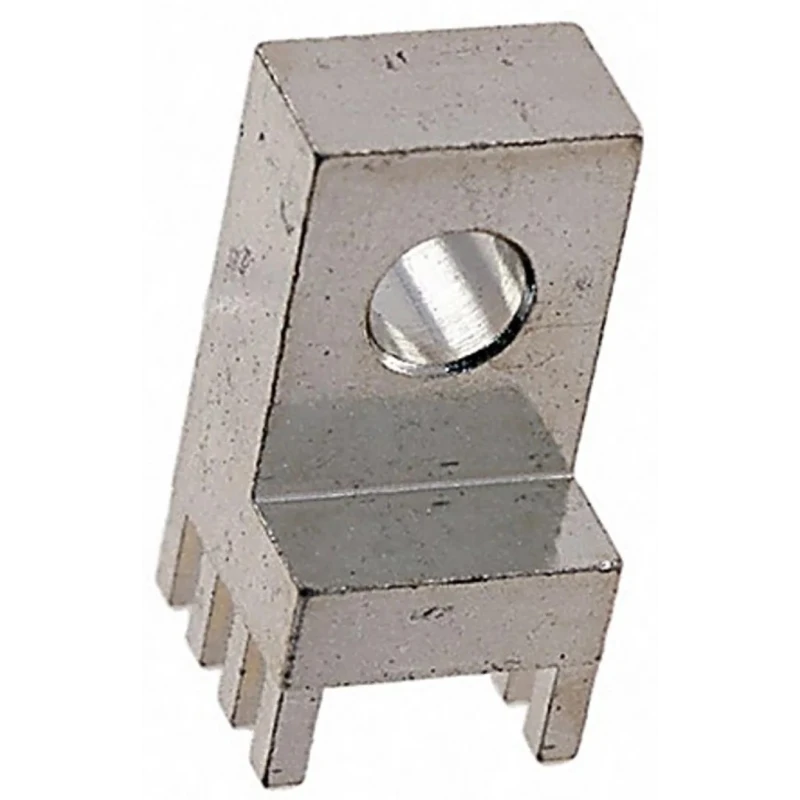

Wurth Elektronik Brass Right Angle Screw Terminal 160A 2.54mm Pitch 8 Legs Tin Plated Brass Body 7461102
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Body Material | Brass |
| Current | 160A |
| Model | 7461102 |
| Series | REDCUBE |
| Number of Legs | 8 |
| Number of Rows | 4 |
| Pitch | 2.54mm |
| Body Plating | Tin |
Key Features
- Rated for high current capacity of 160A ensuring efficient power handling.
- Constructed with brass body and tin plating for corrosion resistance and durability.
- Features right angle orientation with 8 legs and 4 rows for stable mounting.
- 2.54mm pitch and snap-in design enable easy and secure press-fit PCB mounting.
- Eliminates the need for soldering, reducing PCB thermal stress and increasing assembly reliability.
- Compliant with RoHS and DIN standards assuring industrial quality and safety.
- Rugged design resists vibration and shock for durable use in demanding applications.
- Well suited for industrial, automotive, solar, medical, and agricultural power electronics.
Product Description
Wurth Elektronik 7461102 Brass Right Angle Screw Terminal is a high-performance PCB mount power terminal designed for reliable transfer of high currents up to 160A. Featuring a brass body with tin plating, this screw terminal offers excellent corrosion resistance and mechanical strength.
The device incorporates an 8-leg, 4-row configuration with a 2.54mm pitch and right angle orientation, using press-fit technology. This mounting method ensures a gas-tight electrical connection with high retention force that is more secure than traditional solder or screw connections, and is resistant to vibration and shock. By eliminating soldering, it reduces thermal load on the printed circuit board during assembly.
Designed for cost-effective integration into production with simple press-fit tooling, these power elements are part of Wurth Elektronik's REDCUBE series. They provide a rugged and reliable solution for applications requiring high current PCB connections, including wind and solar power systems, medical devices, industrial controls, automotive power supplies, and battery systems such as emergency power supplies and DC to AC converters.
This product complies with RoHS, DIN 76-1:2016-08, DIN ISO 2768-1m, and DIN EN 61760-2 standards, certifying its quality and environmental compliance. Manufactured in China, the terminal delivers consistent performance and durability required in critical power electronics environments.
Rated current: 160A for high power transmission. Brass body with tin plating for enhanced durability and corrosion resistance. Right angle orientation and 8 legs across 4 rows for secure PCB mounting. Press-fit technology for environmentally stable, solderless connections.
Rugged construction resists vibration and mechanical shocks. Compliance with multiple DIN standards and RoHS directive. Suitable for industrial, renewable energy, automotive, and medical electronics. REDCUBE series power element with efficient production process integration.
Explore more high-quality wire terminals and connectors in our Electronics Components category at EnvMart.
Explore more products in our Screw Terminals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This screw terminal is rated for a high current capacity of 160A, ensuring efficient power handling in various applications.
The pitch of this model is 2.54mm, which facilitates its use in standard PCB designs.
It features 8 legs arranged in 4 rows, providing stable mounting on printed circuit boards.
The terminal is constructed with a brass body and tin plating, offering corrosion resistance and mechanical strength.
This model has a right angle orientation, which is beneficial for space-constrained applications on PCBs.
It complies with RoHS and multiple DIN standards including DIN 76-1:2016-08, ensuring industrial quality and safety.
It utilizes press-fit technology, which allows for solderless connections that are gas-tight and resistant to vibration and shock.
This terminal is well suited for industrial, automotive, solar, medical, and agricultural power electronics.
This terminal is part of Wurth Elektronik's REDCUBE series, which integrates efficient production processes for high-performance components.
The screw terminal is manufactured in China, ensuring consistent performance and quality.
By eliminating the need for soldering, it reduces thermal load on the printed circuit board during assembly, enhancing reliability.
The rugged design of this terminal resists vibration and shock, making it suitable for demanding applications.
