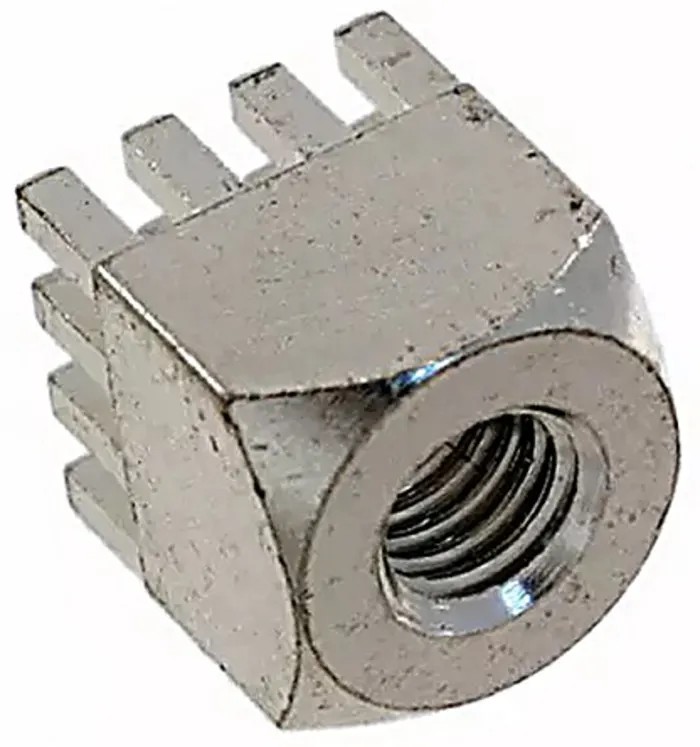

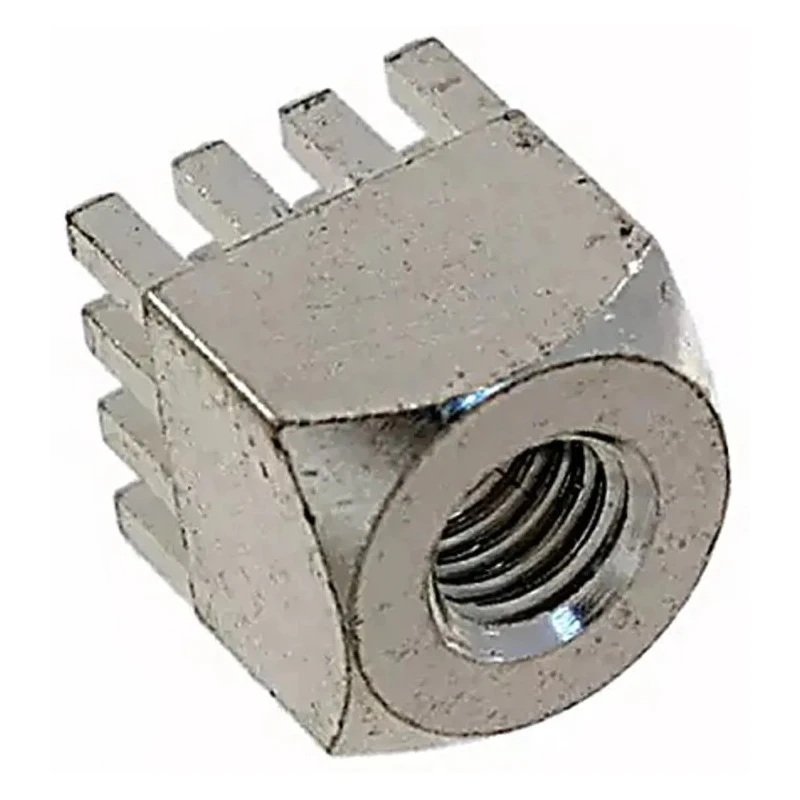

Wurth Elektronik Brass Vertical Screw Terminal 180A REDCUBE Series 7461147
Specifications
| Country of Origin | China |
|---|---|
| Screw Size | M5 |
| Brand | Wurth Elektronik |
| Orientation | Vertical |
| Body Material | Brass |
| Current | 180A |
| Model | 7461147 |
| Series | REDCUBE |
| Number of Legs | 16 |
| Number of Rows | 4 |
| Pitch | 2.54mm |
| Body Plating | Tin |
Key Features
- Utilizes press-fit technology for a reliable, gas-tight electrical connection to PCB.
- Constructed of brass with tin plating for enhanced durability and conductivity.
- Vertical orientation with a pitch size of 2.54mm suitable for PCB mounting.
- Features 16 legs and 4 rows for secure and stable installation.
- Screw size M5 ensures strong mechanical fastening.
- Snap-in design simplifies assembly and integration into production processes.
- Rugged construction provides resistance to vibration and shock.
- Eliminates the need for soldering, reducing thermal stress on the PCB.
Product Description
Wurth Elektronik 7461147 is a brass vertical screw terminal from the REDCUBE Series designed for efficient high-current transfer of up to 180A on printed circuit boards (PCBs). It features a press-fit technology that provides an environmentally stable, gas-tight electrical connection that is more secure than soldered or screw connections. This reduces thermal loads on the PCB and increases reliability in vibration and shock-prone environments.
The terminal has a 2.54mm pitch, 16 legs arranged in 4 rows, and an M5 screw size to facilitate a robust and secure fastening. Constructed from copper zinc alloy with tin plating, it offers excellent durability and electrical conductivity. The snap-in feature allows easy integration into automated production lines with minimal tooling.
Wurth Elektronik’s REDCUBE power terminals are suitable for transferring high currents in various industrial applications including wind and solar power, industrial machinery, medical devices, agricultural equipment, and automotive systems. Use cases include power supplies, battery backup systems, DC to AC converters, and emergency power installations. This product's rugged design ensures long-term stable performance under harsh operating conditions.
Press-fit mounting for a secure, gas-tight connection to PCB. Brass body with tin plating ensures durability and conductivity. Vertical orientation with 2.54mm pitch fits standard PCB layouts. Robust construction resists vibration and shock.
Snap-in design enables efficient automated assembly. 16 legs arranged across 4 rows for enhanced stability. Screw size M5 for strong mechanical fastening. Eliminates the need for soldering, reducing thermal damage. Ideal for diverse industrial power and electronic applications.
Manufactured in China with high quality standards. Explore Wurth Elektronik's full range of screw terminal power elements for reliable PCB mounting solutions on EnvMart, ensuring precise component selection for your applications.
Explore more products in our Screw Terminals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 180A, making it suitable for high-current applications.
The pitch size for this terminal is 2.54mm, which is compatible with standard PCB layouts.
It features 16 legs arranged in 4 rows for enhanced stability during installation.
The terminal uses an M5 screw size, ensuring a strong mechanical fastening.
This unit is constructed from brass with tin plating, which enhances its durability and conductivity.
The terminal is designed with a vertical orientation, suitable for PCB mounting.
It utilizes press-fit technology to provide a reliable, gas-tight electrical connection to the PCB.
This terminal is manufactured in China, adhering to high quality standards.
It is suitable for various industrial applications, including wind and solar power, medical devices, and automotive systems.
No, the design eliminates the need for soldering, which reduces thermal stress on the PCB.
The snap-in design simplifies assembly and allows for efficient integration into automated production processes.
