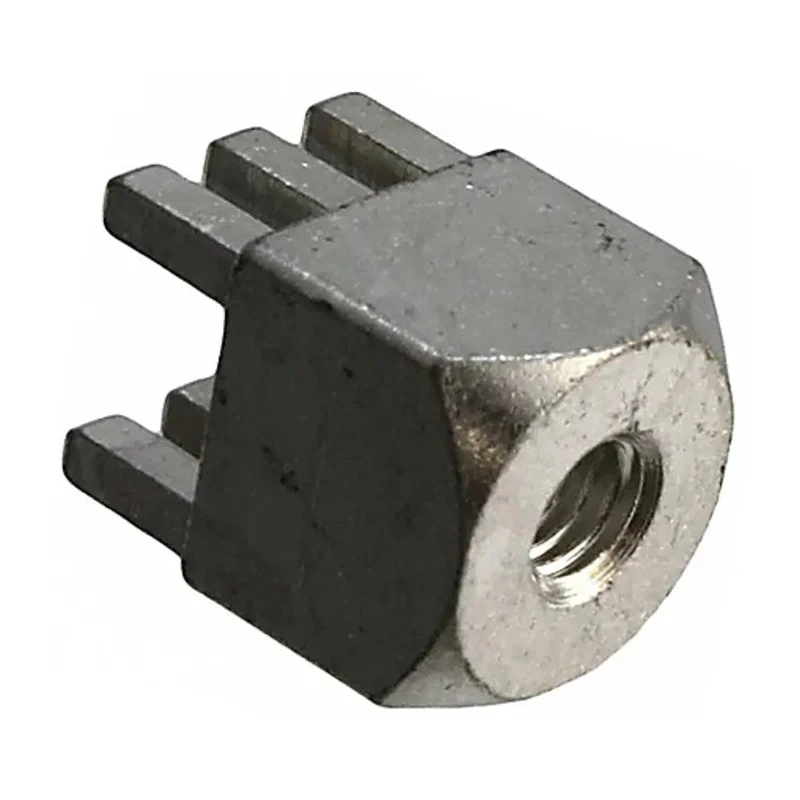

Wurth Elektronik Brass Screw Terminal, Vertical, 100A, Tin Plated, 6 Legs, 3 Rows REDCUBE 7461057

Wurth Elektronik 7461057 Brass Screw Terminal is designed for transferring currents up to 100A in rugged industrial and electronic applications. Featuring a vertical orientation with 6 legs arranged in 3 rows, this tin-plated brass terminal ensures reliable and secure connections on PCBs through advanced press-fit technology. The brass body provides mechanical strength and excellent conductivity while the tin plating offers corrosion protection.

This screw terminal specifically uses the REDCUBE series power elements with a 2-row pin plate configuration, enabling up to approximately 300A in some versions, making it suitable for heavy-duty electronic power transfer.

Key benefits include secure gas tight electrical connections, vibration and shock resistance, and the elimination of soldering requirements, thereby enhancing manufacturing efficiency and connection longevity. The press-fit mounting method provides high retention force to the PCB, ensuring robust mechanical stability.

Designed for varied industrial sectors such as renewable energy like wind and solar systems, medical devices, industrial controls, agricultural machinery, and automotive electronics. Typical applications include power supplies, DC to AC converters, emergency battery backup systems, and high-power converters.

Features vertical orientation ideal for PCB mounting. Supports high current of up to 100 amperes. Constructed with brass body material ensuring durability. Surface plated with tin providing corrosion resistance. Equipped with 6 legs arranged in 3 rows for stable connection.

Incorporates press-fit technology for secure and gas tight PCB connection. Eliminates need for soldering and offers vibration and shock resistance. Suitable for applications in power supplies, converters, and battery systems.

Wurth Elektronik’s REDCUBE series is well-known for industrial-grade power connectors, reliable enough for critical infrastructure and high current applications. This screw terminal enhances both electrical and mechanical reliability, reducing maintenance and failure rates.
