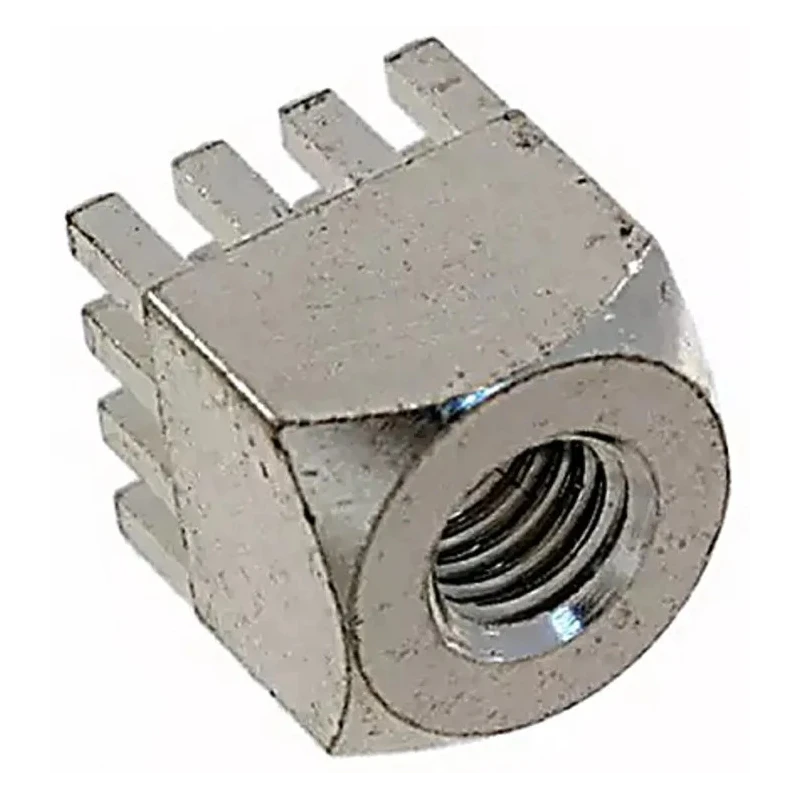

Wurth Elektronik Brass Vertical Screw Terminal, 240A, Snap-In, Pitch 2.54mm, 16 Legs, REDCUBE Series 7461097

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Brass Vertical Screw Terminal, 240A, Snap-In, Pitch 2.54mm, 16 Legs, REDCUBE Series 7461097

Name: Wurth Elektronik Brass Vertical Screw Terminal, 240A, Snap-In, Pitch 2.54mm, 16 Legs, REDCUBE Series 7461097
Brand: Wurth Elektronik
SKU: 188949
Price: 3.46 USD
Availability: InStock



Category Screw Terminals Brand Wurth Elektronik Condition New

Specifications

Country of Origin	India
Screw Size	M6
Brand	Wurth Elektronik
Orientation	Vertical
Body Material	Brass
Current	240A
Model	7461097
Series	REDCUBE
Number of Legs	16
Number of Rows	4
Pitch	2.54mm
Body Plating	Tin

Key Features

Constructed from brass with tin plating for durability and corrosion resistance.
Vertical orientation with a pitch of 2.54mm for compact PCB mounting.
Features 16 legs and four rows to facilitate multiple connections.
Snap-in mounting using press-fit technology ensures secure, gas-tight PCB connections.
Eliminates the need for soldering, reducing thermal stress on PCBs.
Rugged construction resists vibration and shock for high reliability.
Designed for industrial and electronic applications including power supplies and converters.
Compatible with automated press-fit tooling for efficient production integration.

Product Description

Wurth Elektronik 7461097 Brass Vertical Screw Terminal is engineered to provide reliable high current connectivity up to 240A for printed circuit boards in demanding industrial and electronic environments. Its robust brass body with tin plating ensures long-lasting performance and corrosion protection.

The terminal features a vertical orientation with a precise 2.54mm pitch between pins, suitable for dense PCB layouts. It includes 16 legs arranged in 4 rows, delivering multiple connection points for power applications.

Using advanced press-fit snap-in technology, this terminal achieves a gas-tight, vibration and shock resistant connection without the need for soldering. This reduces thermal stress on the PCB and enhances overall assembly reliability.

This product belongs to the REDCUBE series of power elements, designed specifically for transferring high currents up to approximately 300A onto PCBs across sectors such as wind and solar energy, medical devices, industrial machinery, agriculture, and automotive electronics. It is commonly employed in power supplies, converters, battery and emergency power systems, and DC to AC converters.

Constructed from brass with tin plating for corrosion resistance and durability. Vertical orientation and 2.54mm pitch enables compact PCB design. Press-fit snap-in connection ensures secure, gas-tight contact to PCB. Robust against vibration and shock to maintain connection integrity.

Eliminates soldering requirements, reducing thermal loads on PCB. Multiple legs and rows for versatile high current applications. Compatible with automated assembly press-fit tooling. Ideal for high current industrial and electronic power transfer scenarios.

Part of the reliable Wurth REDCUBE series power elements. Explore Wurth Elektronik products for quality electronic components suitable for demanding electrical applications, available at EnvMart.
