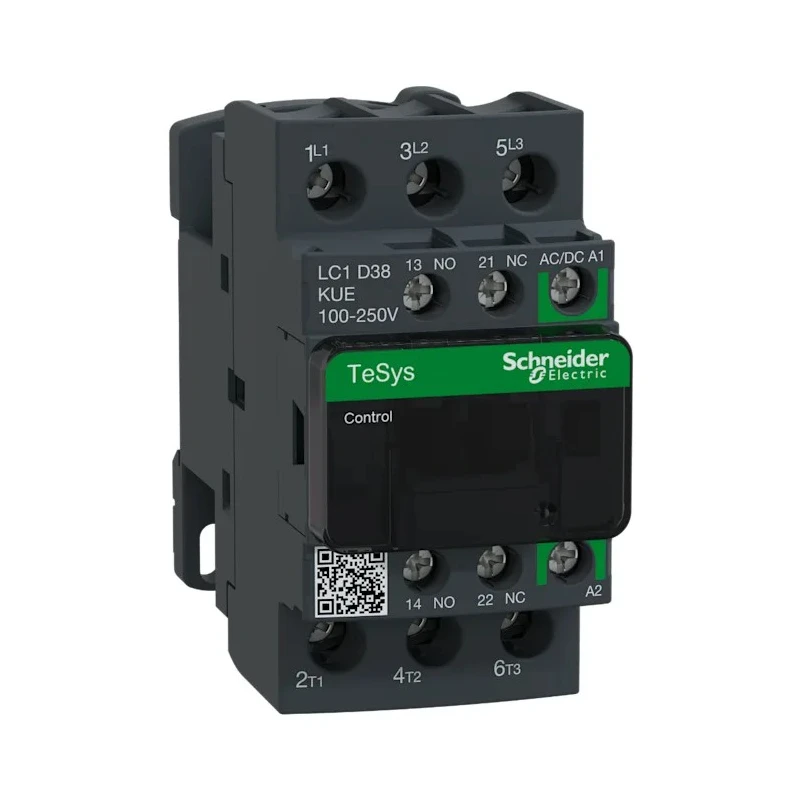

Schneider Electric Contactor LC1D 230V AC Coil, 3-Pole, 38A, 18.5kW 250V, 3 NO, 690V AC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 45mm |
| Model | LC1D |
| Depth | 85mm |
| Width | 92mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 18.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, RoHS, IEC, EAC, CSA, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 38A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 38A |
| Control Circuit Voltage Uc | 250V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3PST |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
| Schneider Electric LC1D Series Contactor, 3-Pole, 3NOBrand | Schneider Electric |
Key Features
- Designed for reliable motor control and resistive load applications.
- 230V AC coil voltage with 3-pole configuration for flexibility.
- High contact current rating of 38A and 18.5kW power capacity at 250V.
- Equipped with 3 normally open contacts and 2 auxiliary contacts (1 NO, 1 NC).
- Durable construction with screw terminal connections and DIN rail mounting.
- Rated for operational currents up to 38A and contact voltage up to 690V AC.
- Operates within temperature range of -25°C to 60°C for versatile environments.
- Includes IP20 finger-safe terminals complying with international markings.
Product Description
Schneider Electric LC1D38KUE contactor is engineered for industrial and commercial motor control and resistive load applications.
This 3-pole contactor features a 230V AC coil providing precise switching capability with an operational current rating of 38A and a power rating of 18.5kW at 250V. It has 3 normally open (NO) contacts and comes with 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC) for enhanced switching functions.
The device is built for durability and safe operation, with screw terminal connections ensuring secure wiring and IP20 finger-safe protection with markings for both North American and international standards. Mounting is versatile with DIN rail or panel screw options.
Operating temperature range from -25°C to 60°C enables usage in a variety of environments. The contactor complies with major international standards such as UL, IEC, RoHS, CSA, EAC, and CCC, ensuring safety and reliability.
Schneider Electric's LC1D series offers long mechanical and electrical life, making it suitable for demanding industrial control systems. The contactor also supports a wide control voltage band and low permanent coil consumption for energy efficiency.
Typical applications include motor starters, lifts, conveyors, compressors, pumps, mixers, and HVAC systems, classified under utilization categories AC-1 and AC-3 according to load type and operation cycle.
Designed for reliable motor control and resistive load applications. 230V AC coil voltage with 3-pole configuration for flexibility. High contact current rating of 38A and 18.5kW power capacity at 250V. Equipped with 3 normally open contacts and 2 auxiliary contacts (1 NO, 1 NC).
Durable construction with screw terminal connections and DIN rail mounting. Rated for operational currents up to 38A and contact voltage up to 690V AC. Operates within temperature range of -25°C to 60°C for versatile environments.
Includes IP20 finger-safe terminals complying with international markings. Complies with multiple global standards including UL, IEC, RoHS, CSA, and CCC. Designed for easy integration in control systems with accessories compatibility.
Explore more Schneider Electric Contactors and accessories in the Electronics & Electricals category at EnvMart for enhanced industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 18.5kW at 250V.
It has an operational current rating of 38A.
The coil voltage for this contactor is 230V AC.
This model can handle a maximum contact voltage of 690V AC.
The LC1D contactor features a 3-pole configuration.
It uses screw terminals that are IP20 finger-safe, complying with both North American and international markings.
The operating temperature range is from -25°C to 60°C.
This contactor includes 2 auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC).
It can be mounted on a DIN rail or using panel screws.
It complies with UL, IEC, RoHS, CSA, EAC, and CCC standards.
This contactor is designed for motor control and resistive load applications, including motors, lifts, conveyors, and HVAC systems.
The depth is 85mm and the width is 92mm.
