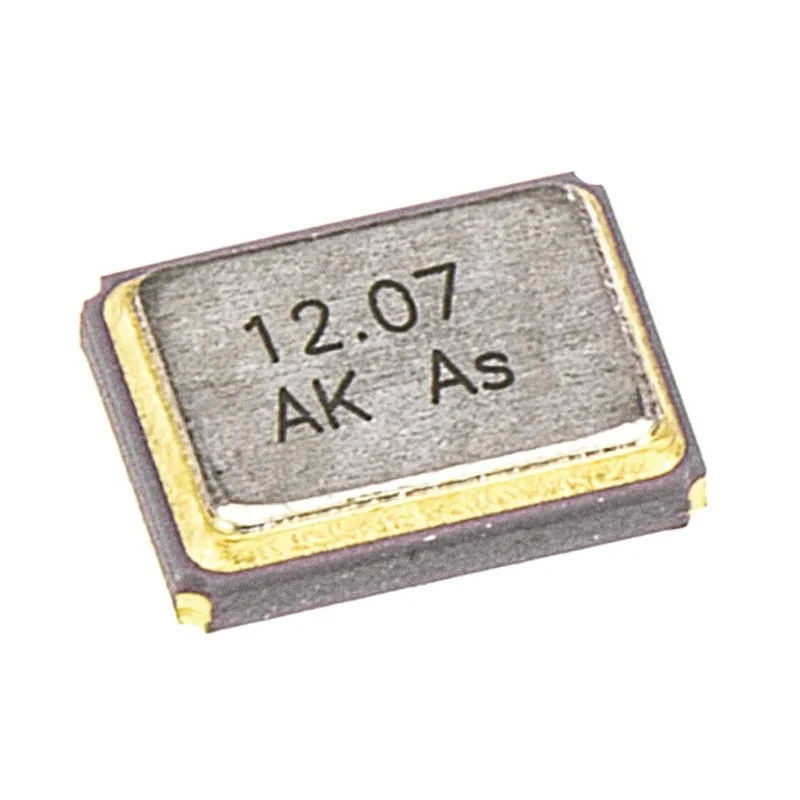

AKER 13.56 MHz Crystal ±10 ppm Surface Mount 4-Pin Ceramic Package C3E-13.560-12-1010-X
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | AKER |
| Height | 0.75mm |
| Length | 3.2mm |
| Model | C3E-13.560-12-1010-X |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | C3E |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 13.56MHz |
| Load Capacitance | 12pF |
| Series Resistance | 100Ω |
Key Features
- Operates at a standard frequency of 13.56 MHz with ±10 ppm frequency stability.

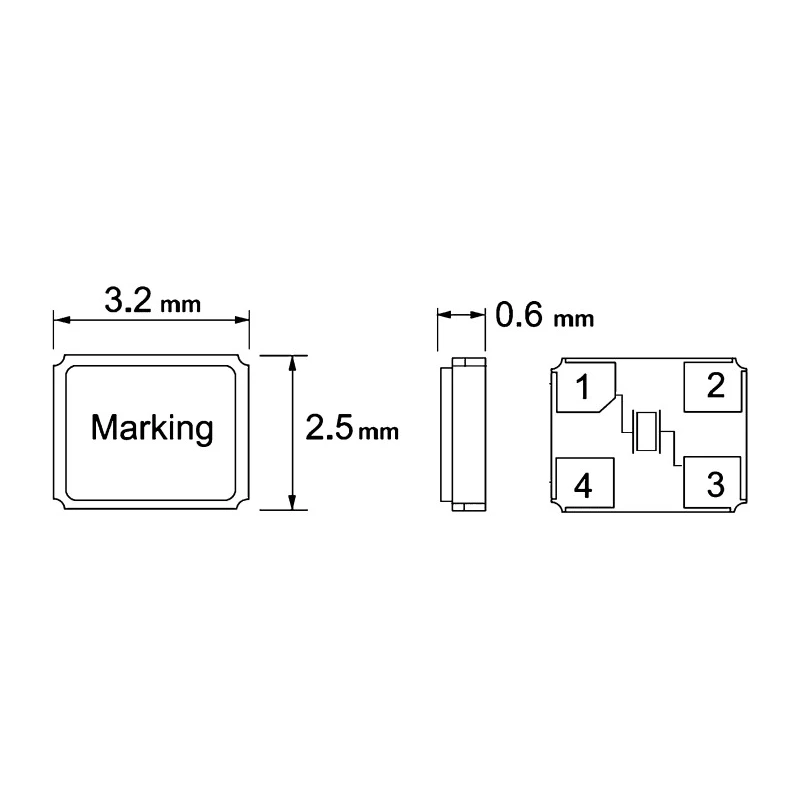

- Packaged in a low-profile ceramic case with dimensions 3.2 mm length, 2.5 mm width, and 0.75 mm height.
- Features a surface mount type with 4 pins and tape & reel packaging suitable for automated PCB assembly.
- Operates reliably within a temperature range of -40°C to 85°C.
- Series resistance is rated at 100 Ω, suitable for stable oscillator circuits.
- Complies with RoHS environmental standards without automotive grading.
- Manufactured in Taiwan, Province Of China ensuring quality and consistency.
Product Description
AKER C3E-13.560-12-1010-X is a 13.56 MHz crystal designed for surface mount applications in microprocessor circuits. This 4-pin crystal unit features a compact ceramic case measuring 3.2 mm in length, 2.5 mm in width, and 0.75 mm in height, making it ideal for space-constrained PCB designs.
The crystal provides a frequency tolerance and stability of ±10 ppm, ensuring precise timing for oscillator-based circuits. It is designed for a load capacitance of 12pF and has a series resistance of 100 Ω, balancing performance with energy efficiency.
Its surface mount package and tape & reel packaging enable efficient handling and placement in automated assembly lines, enhancing production throughput. The crystal operates reliably across a broad temperature range from -40°C to 85°C, supporting industrial and commercial environmental conditions.
Compliant with RoHS standards, this crystal promotes environmentally responsible electronic manufacturing. Although not automotive rated, its construction and specifications suit a broad range of industrial electronics, communication devices, and instrumentation applications requiring stable frequency generation.
Operates at 13.56 MHz frequency with ±10 ppm tolerance and stability. Compact 4-pin ceramic surface mount package measuring 3.2x2.5x0.75 mm. Load capacitance of 12 pF with series resistance of 100 Ω. Temperature operational range from -40°C to 85°C suitable for harsh environments.
Packaged using tape & reel method for automated PCB mounting. RoHS compliant for environmentally safe production. Manufactured in Taiwan, Province Of China ensuring quality control.
This AKER crystal unit supports applications in industrial electronics, instrumentation, communication devices, and other precision timing circuitry. Explore more electronics components and precision crystals at EnvMart for reliable sourcing and catalog details.
Explore more products in our Mounting Equipment category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The crystal operates at a standard frequency of 13.56 MHz, ensuring precise timing for oscillator-based circuits.
This model has dimensions of 3.2 mm in length, 2.5 mm in width, and 0.75 mm in height, making it suitable for space-constrained PCB designs.
It operates reliably within a temperature range of -40°C to 85°C, accommodating harsh environmental conditions.
The load capacitance for this model is rated at 12 pF, which is essential for its performance in oscillator circuits.
The series resistance is rated at 100 Ω, which helps in balancing performance and energy efficiency in the circuit.
It is packaged using a tape & reel method, which is suitable for automated PCB assembly, enhancing production throughput.
Yes, it complies with RoHS environmental standards, promoting environmentally responsible electronic manufacturing.
This model features a 4-pin configuration, which is typical for surface mount applications.
The crystal unit is manufactured by AKER, known for its electronic components.
It is manufactured in Taiwan, Province Of China, ensuring quality and consistency in production.
It supports applications in industrial electronics, instrumentation, and communication devices requiring stable frequency generation.
This model uses a surface mount type, making it suitable for modern PCB designs.
