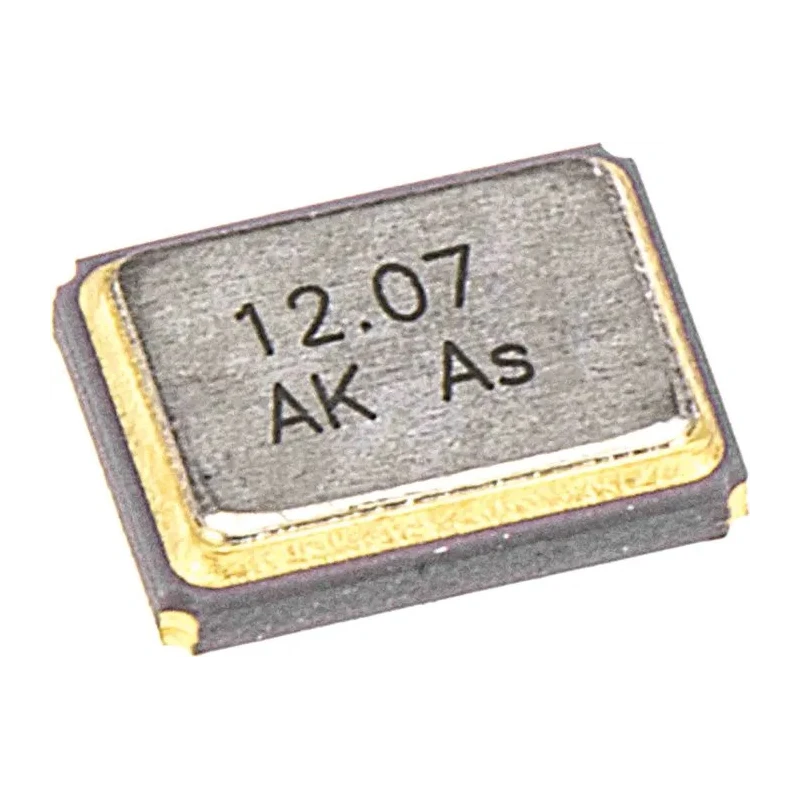

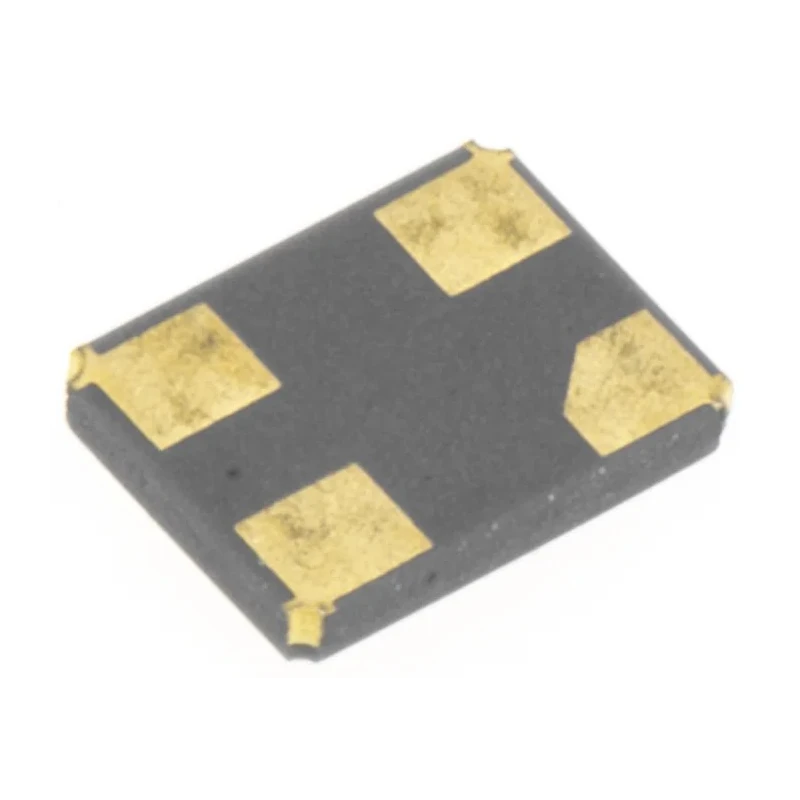

AKER 12 MHz Crystal ±30 ppm Surface Mount 4-Pin Ceramic Case 3.2 x 2.5 x 0.75 mm C3E-12.000-12-3030-X
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | AKER |
| Height | 0.75mm |
| Length | 3.2mm |
| Model | C3E-12.000-12-3030-X |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | C3E |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 12MHz |
| Load Capacitance | 12pF |
| Series Resistance | 100Ω |
Key Features
- This 12 MHz crystal operates within a temperature range of -40°C to 85°C.
- It features a low series resistance of 100Ω for efficient oscillation.
- Packaged in a low-profile ceramic case measuring 3.2 mm length, 2.5 mm width, and 0.75 mm height.
- Designed for surface mount assembly with tape and reel packaging suitable for automated insertion.
- Offers a stable frequency tolerance of ±30 ppm, ensuring signal accuracy.
- Has a load capacitance of 12 pF optimized for microprocessor clock circuits.
- Manufactured to RoHS standards with a four-pin configuration for reliable connections.
Product Description
AKER C3E-12.000-12-3030-X is a high-quality 12 MHz crystal unit designed for surface mount technology applications. It features a precise frequency tolerance of ±30 ppm, making it suitable for microprocessor and timing circuits requiring stable oscillation.

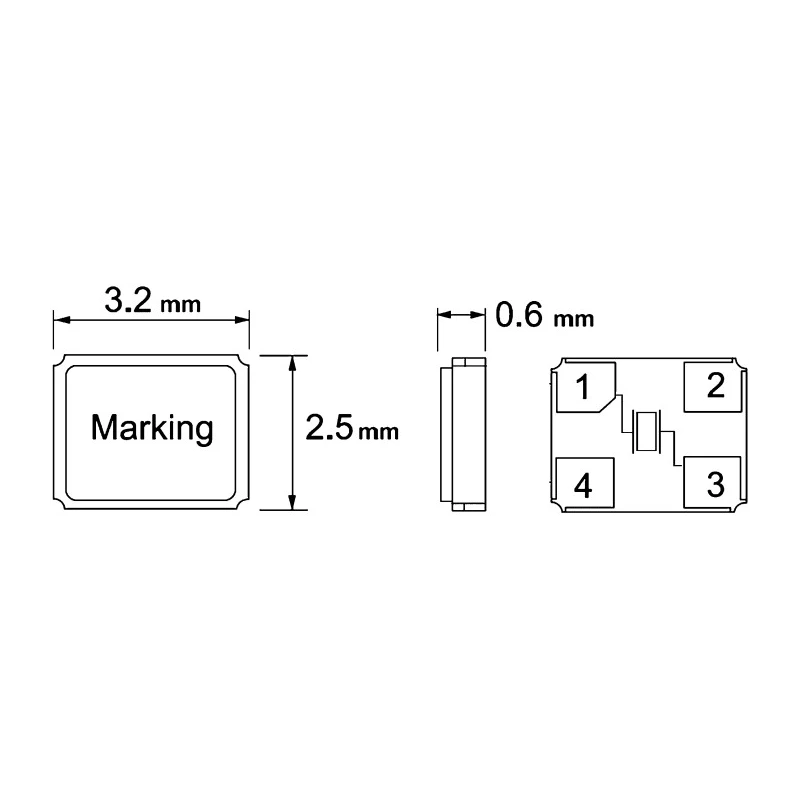

The crystal is housed in a compact ceramic case with dimensions of 3.2 mm length, 2.5 mm width, and 0.75 mm height, allowing low profile PCB design integration. The four-pin surface mount configuration supports reliable electrical connectivity and compatibility with automated assembly processes.
This series offers a temperature operating range of -40°C to 85°C, ensuring performance reliability under varying environmental conditions. With a load capacitance of 12 pF and a low series resistance of 100 ohms, it provides efficient oscillation and signal integrity.
The product complies with RoHS environmental standards, making it suitable for industrial and commercial electronic manufacturing. Packaged on tape and reel, the unit supports high-volume production efficiency.
This 12 MHz crystal operates within a temperature range of -40°C to 85°C. It features a low series resistance of 100Ω for efficient oscillation. Packaged in a low-profile ceramic case measuring 3.2 mm length, 2.5 mm width, and 0.75 mm height.
Designed for surface mount assembly with tape and reel packaging suitable for automated insertion. Offers a stable frequency tolerance of ±30 ppm, ensuring signal accuracy. Has a load capacitance of 12 pF optimized for microprocessor clock circuits.
Manufactured to RoHS standards with a four-pin configuration for reliable connections. Ideal for industrial, commercial, and manufacturing electronic applications requiring precise frequency control. Explore related crystal units and oscillators at EnvMart.
Explore more products in our Mounting Equipment category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a standard frequency of 12 MHz, suitable for various timing applications.
It operates within a temperature range of -40°C to 85°C, ensuring reliable performance in different environmental conditions.
The crystal is housed in a ceramic case measuring 3.2 mm in length, 2.5 mm in width, and 0.75 mm in height.
It has a load capacitance of 12 pF, optimized for microprocessor clock circuits.
The series resistance is 100Ω, which contributes to efficient oscillation and signal integrity.
It is packaged on tape and reel, making it suitable for automated insertion during assembly processes.
This unit is designed for surface mount assembly, facilitating integration into various electronic circuits.
It features a four-pin configuration, ensuring reliable electrical connections.
The product is manufactured to RoHS standards, making it suitable for environmentally conscious applications.
It is ideal for industrial, commercial, and manufacturing electronic applications requiring precise frequency control.
The model number is C3E-12.000-12-3030-X, which identifies its specific characteristics and specifications.
This crystal unit is manufactured in Taiwan, ensuring adherence to quality standards.
