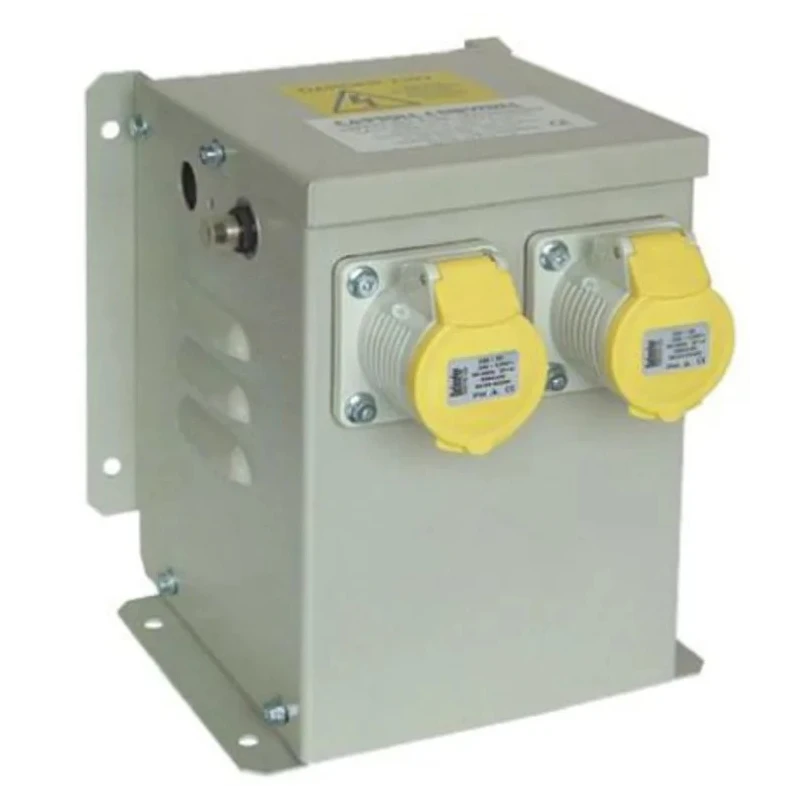

Carroll & Meynell Site Transformer 1.65 kVA, 230 V ac Primary, 110 V ac Secondary, 15 A Output, Wall Mounting CM3300WM2

Carroll & Meynell CM3300WM2 Site Transformer is a high-quality, single-phase transformer designed for safe electrical distribution in industrial, commercial, garage, and fixed installation environments. It delivers a power rating of 1.65 kVA with 230 V ac primary and 110 V ac secondary voltages, supporting an output current of 15 A. This transformer is designed specifically for wall mounting, featuring a robust sheet steel enclosure rated IP22, assuring durability and protection in various settings.

The transformer integrates double winding with 110 V secondaries centre tapped to earth to reduce shock risk, and includes a resettable thermal cut-out trip in the primary circuit to prevent overload situations. Additionally, a thermal safety overload fuse is embedded into the primary winding for enhanced protection.

This unit is suitable for industrial power tool supply and fixed electrical installations, guaranteed to safeguard users and equipment. It accepts hard wire input with L-N-E plug type and uses BS EN 60309 compliant socket type, ensuring compatibility with industrial electrical standards.

Operating reliably at frequencies between 50 Hz and 60 Hz, this transformer provides a stable power output for diverse applications. The unit's dimensions are 240 mm length, 255 mm width, and 240 mm depth, with a gross weight of 18 kg. It offers 20 mm conduit entry points on both sides of the enclosure to facilitate easy wiring.

Manufactured in the United Kingdom, the CM3300WM2 meets rigorous quality manufacturing standards. It is ideal for applications in electrical power distribution in industrial, laboratory, manufacturing, HVAC, and construction environments.

Designed for wall mounting in industrial and commercial electrical distribution systems. Features a hard wire L-N-E plug type with BS EN 60309 socket type for compatibility and safety. Provides an output current of 15 A suitable for power tools and fixed installations.

Includes safety features such as double winding, centre tapped earth, and thermal cut-out protections. Constructed with a sheet steel IP22 enclosure for durable wall-mount use. Supports operating frequencies from 50 Hz to 60 Hz for versatile applications.

Manufactured in the United Kingdom to ensure high quality and compliance. Explore more transformers and power supply products in the Electronics & Electricals category on EnvMart for industrial and commercial use.
