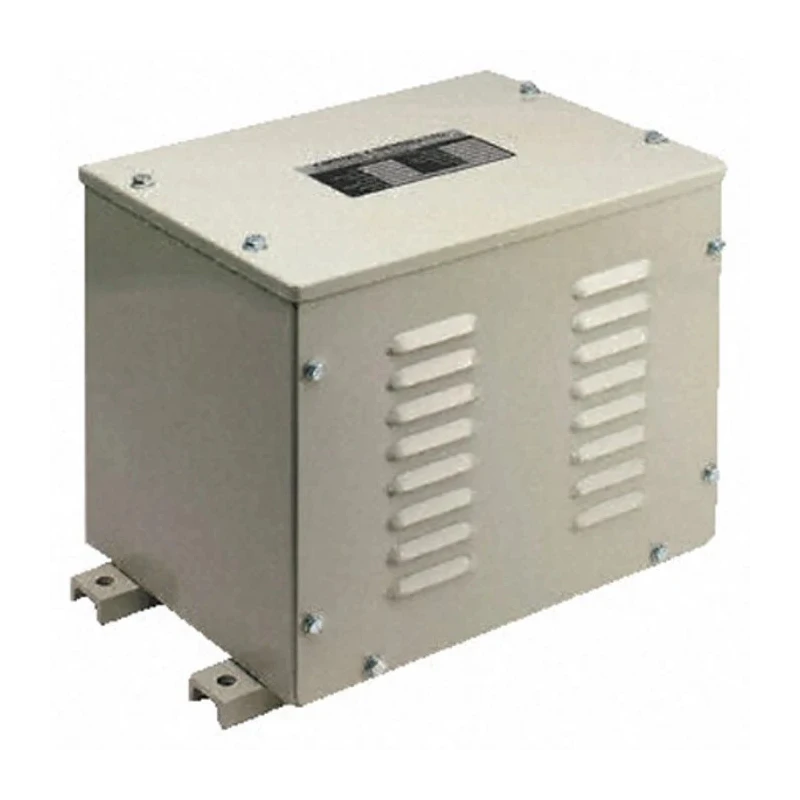

Carroll & Meynell Site Transformer 5 kVA, 400 V ac Primary, ±55 V ac Secondary CM5000/FM0/400
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Carroll & Meynell |
| Length | 420mm |
| Model | CM5000/FM0/400 |
| Depth | 260mm |
| Gross Weight | 50kg |
| Width | 350mm |
| Mount Type | Wall |
| Series | CM5000/FM0/400 |
| Maximum Operating Temperature | 200°C |
| Plug Type | Hard Wire L1-L2-L3-E |
| Electrical Phase | 1 |
| Standards/Approvals | BSEN 61558-2-23 |
| Primary Voltage | 400 V ac |
| Secondary Voltage | ±55 V ac |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| RS PRO Site Transformer 5 kVA, 400 V Primary, 110 V (55-0-55) SecondaryBrand | RS PRO |
Key Features
- High operating temperature endurance up to 200°C ensuring reliability.
- Wall mount type with robust hard wire plug type for L1-L2-L3-E connections.
- Compact dimensions measuring 420mm length, 350mm width, and 260mm depth.
- Constructed with a powder-coated sheet steel enclosure providing IP22 protection.
- Designed for industrial, garage, and fixed installations requiring safe electrical distribution.
- Exceeds BSEN 61558-2-23 standards for safety and performance.
- Features 110V secondaries center tapped to earth to minimize shock risk.
Product Description
Carroll & Meynell CM5000/FM0/400 Site Transformer is a high-quality, single phase 5 kVA transformer designed for safe electrical distribution in industrial, laboratory, and commercial settings. It features a 400 V ac primary voltage and a ±55 V ac secondary voltage, facilitating power tool circuits and other fixed installations requiring a 110 V output.
The unit is designed for wall mounting, utilizing a robust sheet steel enclosure with a powder-coated finish in RAL7032 color, rated with IP22 protection to resist ingress and mechanical impact. Its dimensions are 420mm in length, 350mm in width, and 260mm in depth, making it compact yet durable.
This transformer operates reliably at a maximum temperature of 200°C and frequencies between 50 Hz and 60 Hz. The plug type features a hard wire setup suitable for L1-L2-L3-E connections, providing a secure and straightforward installation. The transformer includes double winding with a safety screen between windings and 110 V secondaries center tapped to earth to reduce shock hazards.
Certified to BSEN 61558-2-23 standards, it meets stringent safety and quality requirements for industrial applications, including use in garage and workshop environments. The 50 kg weight assures stability during mounting and operation.
Typical use cases include industrial power distribution, HVAC systems, machine tools, and fixed electrical installations requiring step-down voltage transformation with reliable insulation and thermal performance.
High operating temperature endurance up to 200°C ensuring reliability. Wall mount type with robust hard wire plug type for L1-L2-L3-E connections. Compact dimensions measuring 420mm length, 350mm width, and 260mm depth. Constructed with a powder-coated sheet steel enclosure providing IP22 protection.
Designed for industrial, garage, and fixed installations requiring safe electrical distribution. Exceeds BSEN 61558-2-23 standards for safety and performance. Features 110V secondaries center tapped to earth to minimize shock risk.
Weight of approximately 50 kg ensures stable installation. Explore the broad selection of transformers and power supplies at EnvMart to find complementary products and accessories suitable for your electrical distribution needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary voltage rating of this model is 400 V ac.
This transformer provides a secondary voltage output of ±55 V ac.
The dimensions of this unit are 420mm in length, 350mm in width, and 260mm in depth.
It can operate reliably at a maximum temperature of 200°C.
The gross weight of this model is approximately 50 kg.
This transformer is designed for wall mounting.
It exceeds the BSEN 61558-2-23 standards for safety and performance.
It features a hard wire plug type for L1-L2-L3-E connections.
The transformer operates within a frequency range of 50 Hz to 60 Hz.
It is designed for industrial, laboratory, and commercial settings requiring safe electrical distribution.
Yes, it includes 110 V secondaries center tapped to earth to minimize shock risk.
It is constructed with a powder-coated sheet steel enclosure providing IP22 protection.
