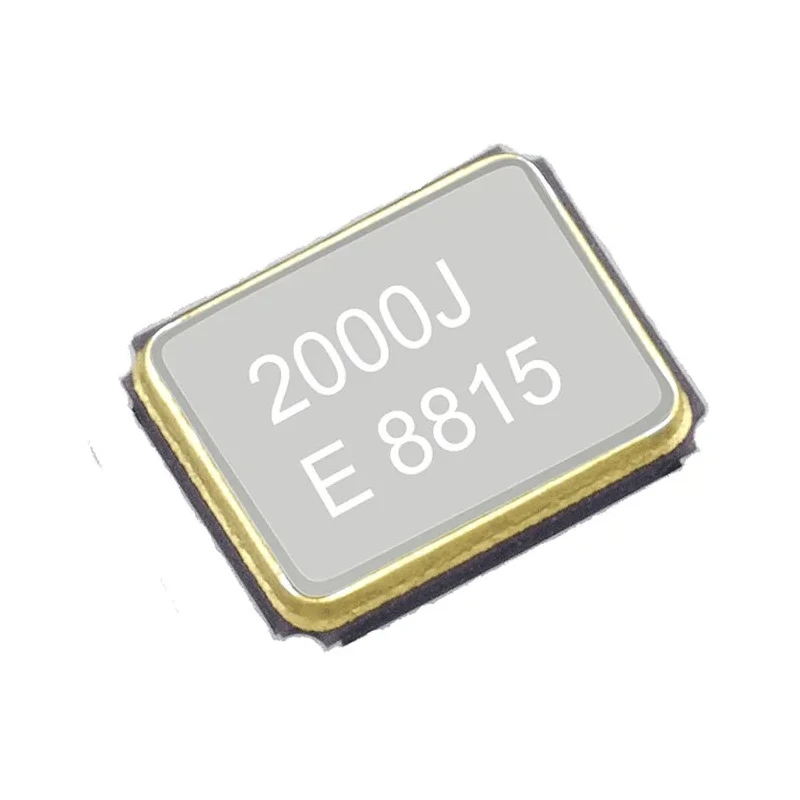

Epson 16 MHz Crystal Unit ±10 ppm TSX-3225 4-Pin Surface Mount 3.2 x 2.5 x 0.6 mm X1E000021011912

Free Delivery in India | Lowest Global Shipping Charges

Epson 16 MHz Crystal Unit ±10 ppm TSX-3225 4-Pin Surface Mount 3.2 x 2.5 x 0.6 mm X1E000021011912

Name: Epson 16 MHz Crystal Unit ±10 ppm TSX-3225 4-Pin Surface Mount 3.2 x 2.5 x 0.6 mm X1E000021011912
Brand: Epson
SKU: 136078
Price: 2.28 USD
Availability: InStock



Category Crystal Unit Brand Epson Condition New

Specifications

Country of Origin	India
Frequency range	16 MHz to 48 MHz
Brand	Epson
Height	0.6mm
Length	3.2mm
Model	X1E000021011912
Width	2.5mm
Mount Type	Surface
Series	TSX3225
Maximum Operating Temperature	85°C
Package Type	TSX-3225
Minimum Operating Temperature	-40°C
Interfaces	LAN ISM band radio, Clock for MPU
External Dimensions	3.2 x 2.5 x 0.6 mm
Standards/Approvals	RoHS, REACH
Pin Count	4
Standard Frequency	16MHz
Load Capacitance	12pF
Series Resistance	60Ω
Overtone order	Fundamental

Key Features

This crystal operates at a standard frequency of 16 MHz with a frequency range of 16 MHz to 48 MHz.
It features a fundamental overtone order for stable oscillation performance.
The unit has a load capacitance of 12 pF and series resistance of 60 Ω.
Its compact ceramic package measures 3.2 mm in length, 2.5 mm in width, and 0.6 mm in height.
Designed for a wide temperature range from -40°C to 85°C to support various operating environments.
Ideal for applications such as mobile phones, Bluetooth devices, WLAN ISM band radios, and MPU clocks.
The package type is TSX-3225 with a 4-pin surface mount design for easy PCB integration.
Compliant with RoHS and REACH environmental standards ensuring safety and reliability.

Product Description

Epson X1E000021011912 Crystal Unit is a precise 16 MHz fundamental frequency surface mount oscillator providing ±10 ppm frequency tolerance suitable for high stability applications in mobile and wireless communications.

This TSX-3225 series crystal is housed in a compact 3.2 x 2.5 x 0.6 mm ceramic package with a 4-pin configuration designed for efficient PCB mounting and minimal footprint. The unit offers a stable frequency range from 16 MHz to 48 MHz with a load capacitance of 12 pF and series resistance of 60 Ω, enabling reliable clock timing functions.

Operating temperature is rated from -40°C to +85°C, making it suitable for demanding industrial, automotive, and consumer electronic environments. Typical applications include mobile phones, Bluetooth modules, WLAN ISM band radios, and microprocessor clocks where precise timing signals are necessary.

Standard frequency: 16 MHz fundamental mode. Load capacitance: 12 pF ensuring accurate frequency stabilization. Compact package: TSX-3225 surface mount (3.2 x 2.5 x 0.6 mm). Wide operating temperature range (-40°C to 85°C).

Series resistance: 60 Ω supports low power consumption. Compliance with RoHS and REACH environmental directives. Ideal for industrial, communication, and consumer electronics applications requiring high precision. This crystal unit delivers reliable oscillation performance ensuring precise timing reference in various electronic designs and manufacturing projects.

Explore our extensive range of Crystal Units to meet diverse frequency and packaging requirements on EnvMart.
