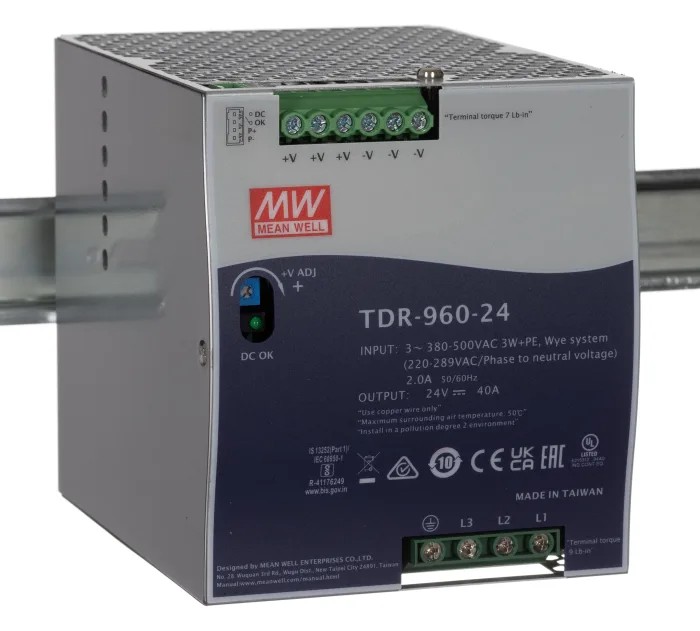

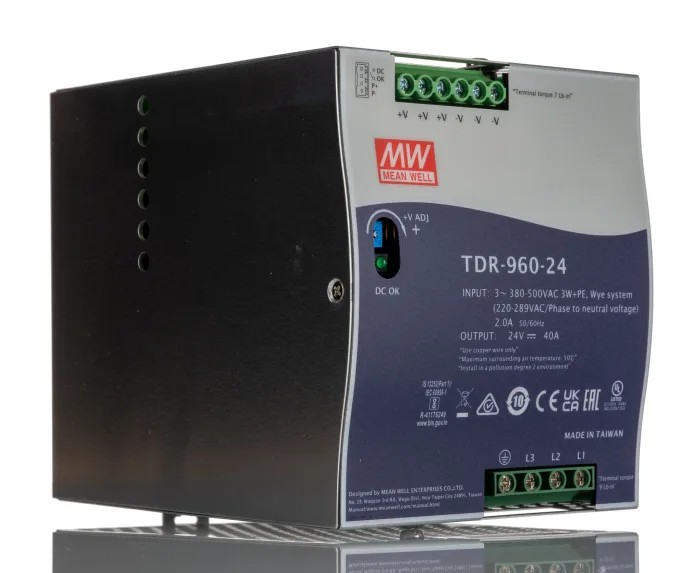

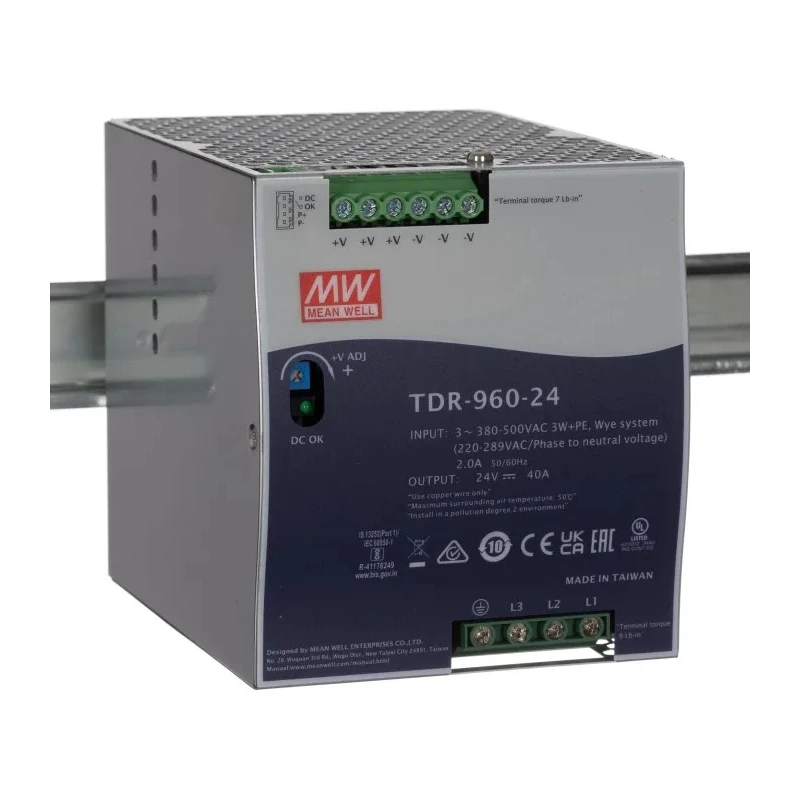

MEAN WELL TDR Switched Mode DIN Rail Power Supply 550V AC Input, 28V DC Output, 40A Output Current, 960W Power TDR-960-24

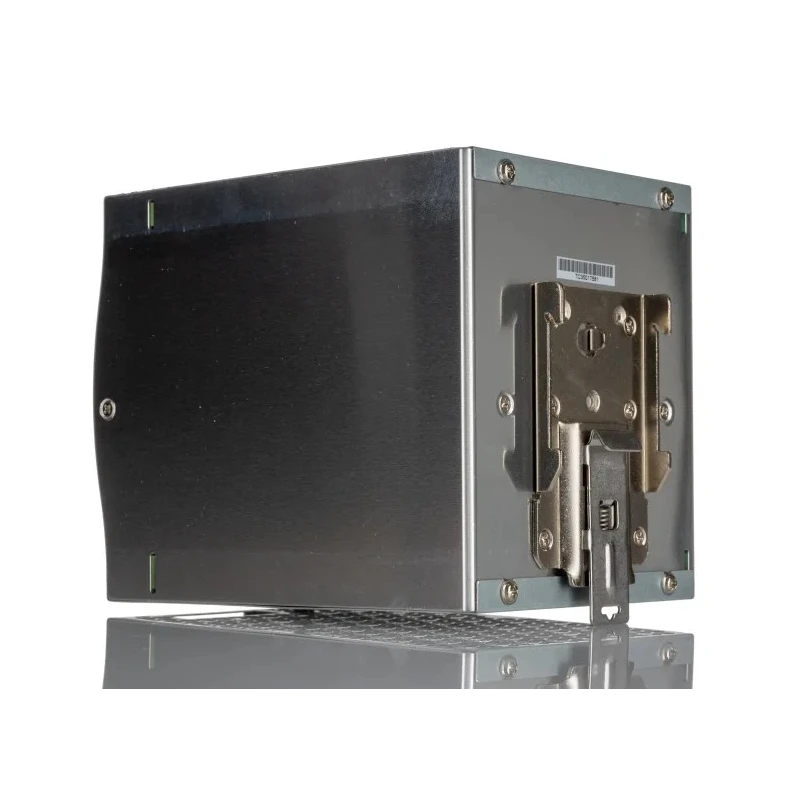

MEAN WELL TDR-960-24 is a switched mode DIN rail power supply designed for industrial use with a wide input voltage range of 340V AC to 550V AC supporting single-phase electrical input. This power supply provides a stable 28V DC output at 40A output current with a total power capacity of 960W. The device features a slim, compact metal housing measuring 110mm width, 125mm height, and 150mm depth, optimized for mounting on TS-35/7.5 or TS-35/15 DIN rails, facilitating efficient space utilization in electrical cabinets.

Engineered for robustness and reliability, the TDR series includes comprehensive protection mechanisms such as short circuit, overload, over voltage, and over temperature protections ensuring safety during operation. The power supply delivers high efficiency at 85.5%, reducing power loss and thermal strain. Compliance with industrial standards UL 508, TUV EN 60950-1, and RoHS directives guarantees safety and environmental compatibility.

This power supply is ideal for industrial control systems, factory automation, semiconductor fabrication equipment, and electromechanical apparatus requiring steady and reliable DC power. Additional features include built-in DC OK relay contact and active PFC function for power factor correction according to EN61000-3-2. The TDR-960-24 supports current sharing capability up to 3840W (3+1), facilitating scalability in power applications.

The unit is designed to operate reliably within a wide ambient temperature range from -30°C to 70°C and cools naturally through free air convection. Its metal casing enhances heat dissipation, contributing to long-term durability and performance stability in demanding industrial environments.

Supports single electrical phase operation for stable Power Supply. Wide input voltage range from 340V AC to 550V AC for versatile usage. Equipped with comprehensive protection features including short circuit, overload, over voltage, and over temperature protections.

Compact design with dimensions 110mm width, 125mm height, and 150mm depth for space-saving DIN rail installation. High efficiency rating of 85.5% ensures lower power loss and heat dissipation. Suitable for industrial control systems and automation equipment.

Built-in active PFC function complying with EN61000-3-2 standards. Constructed with metal housing for enhanced durability and power dissipation. Certified with UL, TUV EN 60950-1 and RoHS compliant for safety and environmental standards.

Operating temperature range from -30°C to 70°C for reliable performance in varied environments. Includes a DC OK relay contact and supports current sharing up to 3840W (3+1). Explore MEAN WELL power supplies and related industrial electronic components at EnvMart for reliable and certified products supporting advanced industrial applications.
