MEAN WELL 5 Output IP67 Rated Constant Voltage LED Driver 48V 120W 2.5A

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL 5 Output IP67 Rated Constant Voltage LED Driver 48V 120W 2.5A

Name: MEAN WELL 5 Output IP67 Rated Constant Voltage LED Driver 48V 120W 2.5A
Brand: MEAN WELL
SKU: 109362
Price: 20.22 USD
Availability: InStock



Category LED Driver Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Model	IP67
IP Rating	IP67
Mount Type	Screw
Series	NPF-120
Configuration	Enclosed
Sub Type	LED Driver
Operating Modes	Constant Voltage
Number of outputs	5
Terminal type	Wire
Maximum Output Power	120W
Input Voltage	305, 90, 127, 431V ac
Output Voltage	48V
Power Dissipation	120W
Standards/Approvals	CAN/CSA, CB, CE, EAC, ENEC, SELV, UL
Primary Type	AC-DC
Driver Current	2.5A

Key Features

The LED driver offers a universal AC input range from 90 to 305Vac.
High efficiency up to 95% reduces energy loss and heat generation.
Protected against short circuit, over current, over voltage, and over temperature conditions.
Fully encapsulated IP67 rated plastic case enables use in harsh, dusty, and humid environments.
Supports operation in temperatures from -40°C to +70°C suitable for various locations.
Class II design with double insulation for electrical safety and ease of installation.
Low no-load power consumption below 0.15W for energy savings during idle state.
5 output terminals support multiple LED lighting configurations.

Product Description

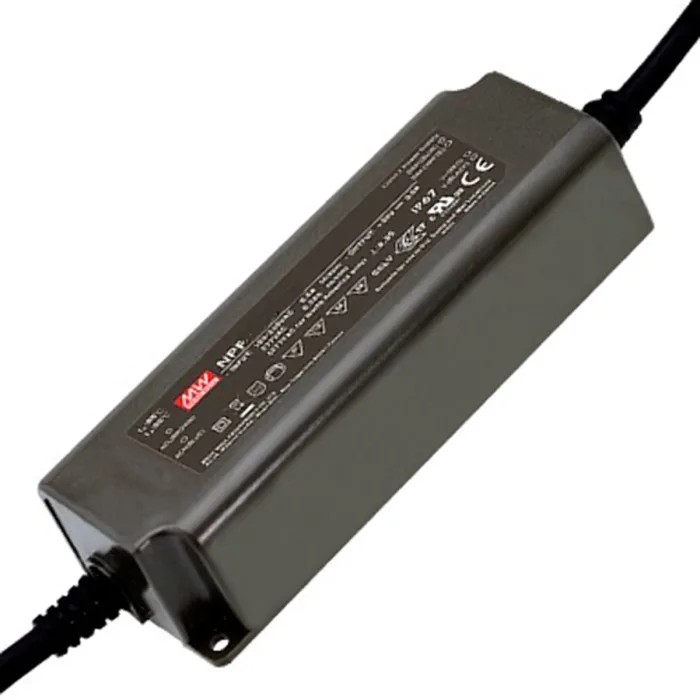

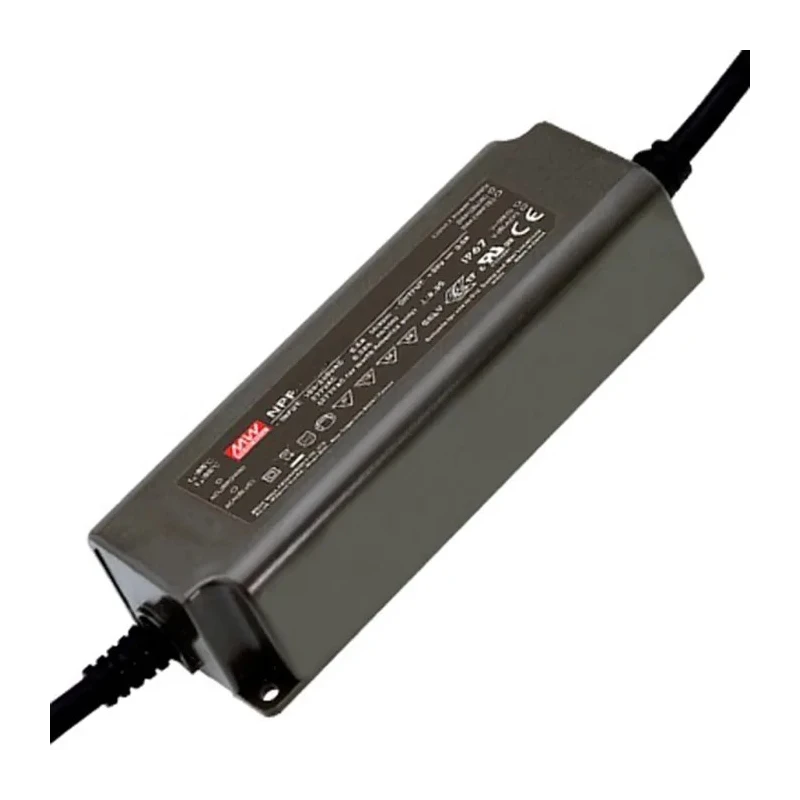

MEAN WELL NPF-120-48 5 Output IP67 Rated Constant Voltage LED Driver delivers 48V DC output with a maximum power rating of 120W and driver current of 2.5A. Designed for demanding LED lighting installations, this LED driver features a fully enclosed, flame retardant plastic case with IP67 ingress protection. Its fully potted silicone interior enables vibration resistance up to 5G and enhanced thermal dissipation, making it durable for industrial, commercial, and outdoor lighting applications.

With a universal AC input range of 90 to 305Vac and active Power Factor Correction (PFC), the NPF-120-48 driver achieves high efficiency up to 95%, significantly lowering power consumption during operation. Its low standby consumption below 0.15W meets stringent energy efficiency requirements. The device is designed for a wide operating temperature range from -40°C to +70°C, allowing reliable use in dry, damp, or wet environments.

This class II power unit features double insulation and uses a weather-resistant cable for safe, flexible installation without the need for grounding (no FG pin). Protecting against short circuit, over current, over voltage, and over temperature, it ensures stable and secure operation in critical LED lighting systems.

Universal AC input 90 to 305Vac with active PFC. Efficient 120W constant voltage output at 48V with a 2.5A driver current. IP67 waterproof and dustproof rating for harsh environmental suitability. Fully encapsulated and vibration resistant design for industrial use.

Class II double insulation ensures electrical safety with no ground required. Multiple output terminals (5 outputs) support complex lighting arrays. Low no-load power consumption below 0.15W. Wide operating temperature range from -40°C to +70°C.

International standards and approvals including UL, CE, CB, ENEC, and SELV.

This MEAN WELL LED driver series is ideal for industrial lighting, architectural lighting, outdoor and street LED lamps, and manufacturing facility installations requiring reliable, durable power supply solutions. Its IP67 protection and rugged build make it suitable for wet and dusty environments prevalent in commercial and industrial sectors.
