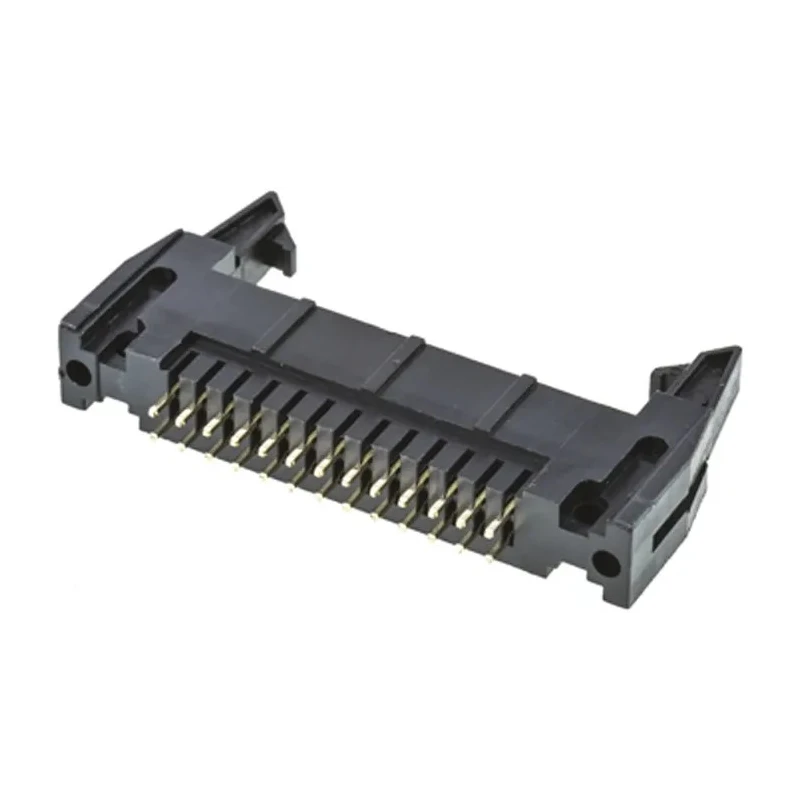

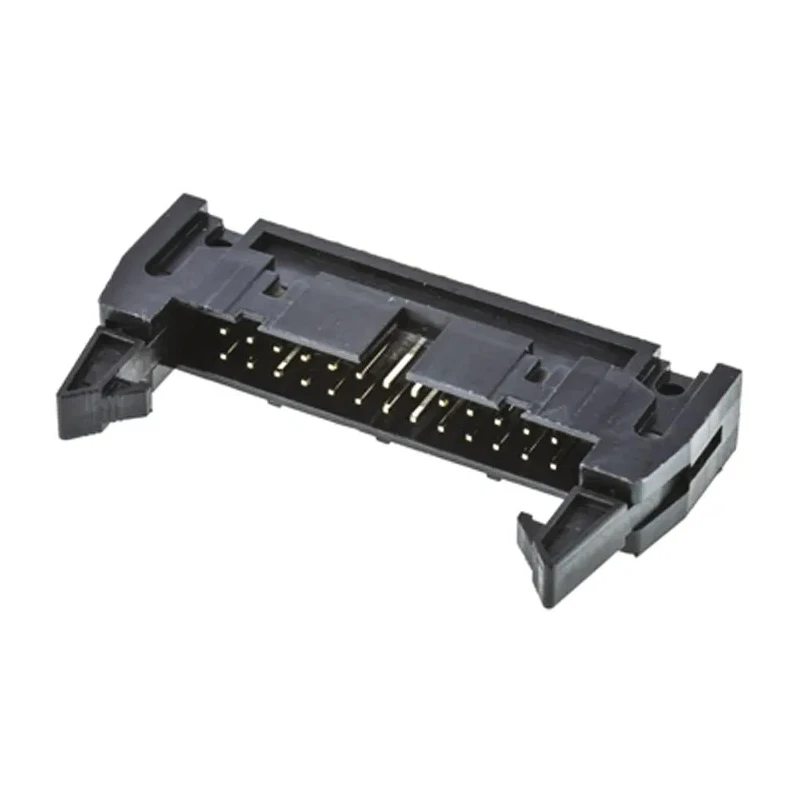

Amphenol Communications Solutions T816 Series Straight Through Hole PCB Header, 26 Contact, 2.54 mm Pitch T816126A1S102CEU

Amphenol Communications Solutions T816126A1S102CEU is a high-quality PCB header connector from the T816 series, featuring a 2.54 mm pitch and 26 contacts arranged in two rows. This straight through hole connector is designed for wire-to-board applications and is tailored to deliver reliable performance in industrial, electronic, and manufacturing environments.

The connector housing uses Polybutylene Terephthalate (PBT), which is compliant with UL 94V-0, ensuring flame retardance and mechanical strength. The brass contacts are gold plated to resist corrosion and minimize contact resistance, delivering consistent electrical performance rated up to 3A current and 250V voltage.

This header series features a shrouded male contact design which enhances safety by preventing accidental contact or short circuits. The tail pins of 6 mm length and mating pins of 3.3 mm length provide secure and stable solder terminations thus supporting strong mechanical and electrical connections on PCB assemblies.

Operating temperature capability ranges from -40°C to 105°C, allowing this connector’s use in harsh environments, including industrial, telecommunications, automation systems, and electronic equipment manufacturing.

The T816 Series connectors come with options for vertical or right-angle mounting and vary in latch length options, accommodating varied application requirements. 3A current rating suitable for signal and low power connections.

26 contacts in two rows with 2.54 mm pitch spacing. Polybutylene Terephthalate housing ensures durability and UL 94V-0 compliance. Gold flash plated brass contacts provide reliable conductivity and corrosion resistance. Straight, through-hole mounting with shrouded design for secure, safe connections.

Wide operating temperature range from -40°C to 105°C supports demanding applications. Manufactured in China with stringent quality controls.

This connector is ideal for electronics manufacturers, industrial automation systems, telecommunications equipment, and PCB assembly processes that require dependable wire-to-board interconnect solutions with robust electrical and mechanical properties.
