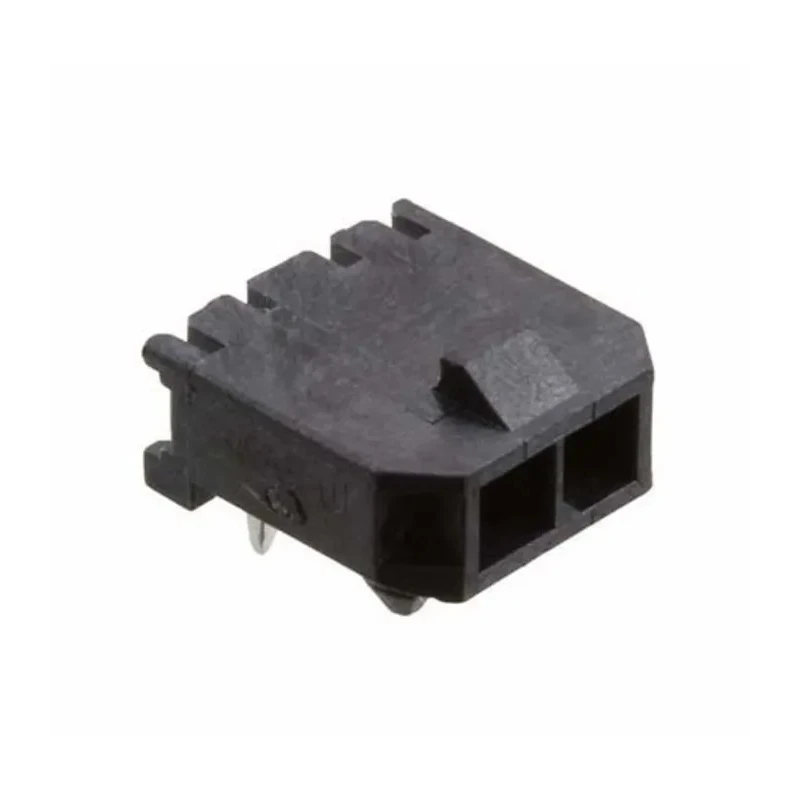

Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header, 2 Contacts, 3 mm Pitch, 1 Row, Shrouded 436500201

The Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header, model 436500201, is a precision electronic connector engineered for robust wire-to-board connections in industrial and power circuitry. Its 3 mm pitch makes it highly suitable for compact PCB layouts, maximizing density while offering reliable mating. The right angle orientation streamlines installation and retention on the board, and the shrouded design helps ensure accurate alignment and increased mechanical protection.

This header comprises two brass male contacts plated in gold, delivering excellent conductivity and minimizing contact resistance, which is essential for consistency and longevity in high-current applications. The thermoplastic housing is specifically selected for its resilience to both temperature extremes and physical shocks, making the product ideal for environments subject to vibration or thermal stress.

The Micro-Fit 3.0 Series supports a current rating of 5A and voltage up to 600V, meeting the needs of power delivery in compact spaces. Its solder termination provides a solid mechanical and electrical joint, while glow wire capability and shrouding contribute to enhanced user and environmental safety.

Each unit features a single row and two contact configuration, guaranteeing a secure fit for the intended PCB layout. With an operating temperature range from -40°C to 105°C, this header is suited for applications in electronics, power equipment, automation controls, consumer electronics, and industrial manufacturing systems.

Typical applications include power supply connections, signal transmissions, and wire-to-board interfaces in commercial and industrial electronics, control panels, instrumentation, and embedded automation systems. The header's robust construction and precision engineering ensure reliable performance throughout its service life.

Micro-Fit 3.0 Series 3 mm pitch maximizes PCB space. Right angle and shrouded structure enhance board retention and safety. 2 male contacts in a single row for wire-to-board connectivity. Gold-plated brass contact material for corrosion resistance and durability.

Thermoplastic housing withstands harsh environmental conditions. Operates between -40°C and 105°C for wide temperature compatibility. Current rating up to 5A, voltage rating up to 600V for power applications. Solder termination facilitates firm connection to PCB pads.

Explore the full range of Molex PCB Headers and related electronic components in the Electronics & Electricals category at EnvMart for comprehensive industrial and manufacturing solutions.
