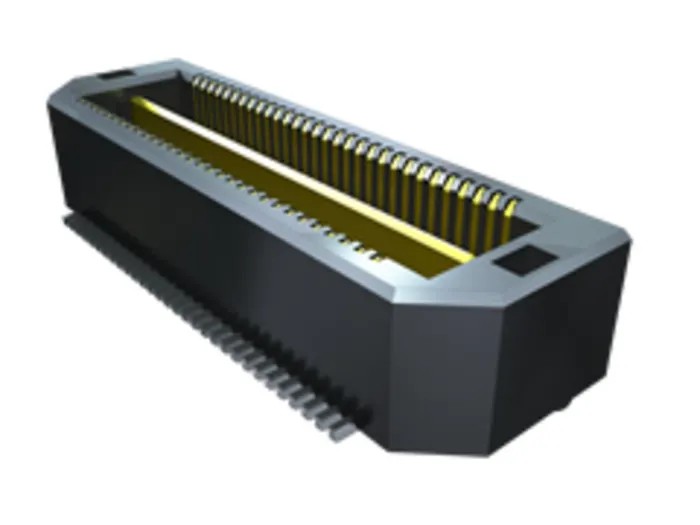

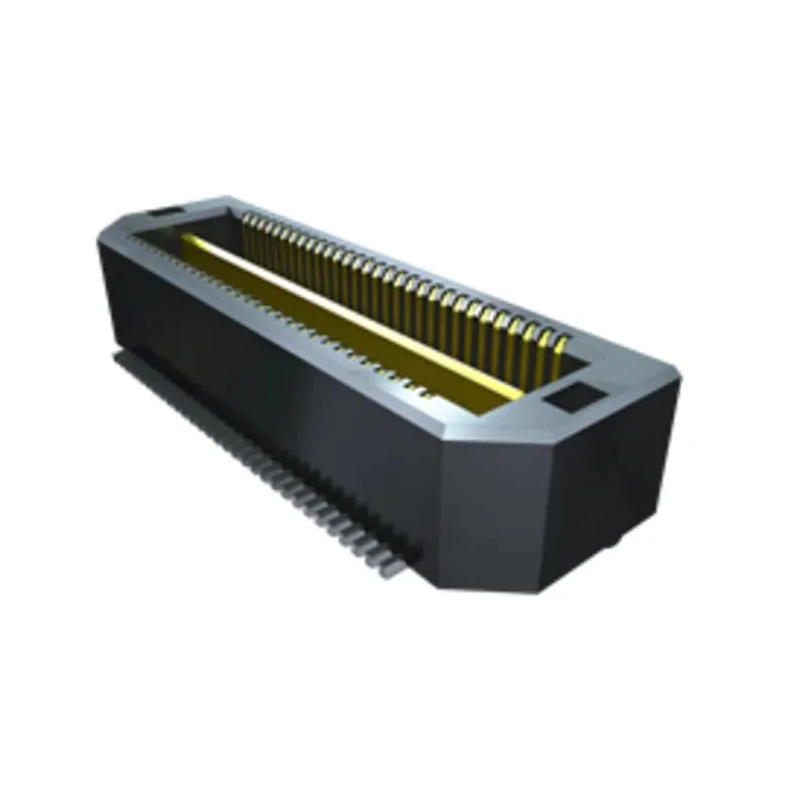

Samtec QTH Series Straight Surface PCB Header, 60 Contacts, 0.5 mm Pitch, 2 Row, Shrouded QTH-030-05-L-D-A

Free Delivery in India | Lowest Global Shipping Charges

Samtec QTH Series Straight Surface PCB Header, 60 Contacts, 0.5 mm Pitch, 2 Row, Shrouded QTH-030-05-L-D-A

Name: Samtec QTH Series Straight Surface PCB Header, 60 Contacts, 0.5 mm Pitch, 2 Row, Shrouded QTH-030-05-L-D-A
Brand: Samtec
SKU: 80966
Price: 23.07 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	125V
Brand	Samtec
Orientation	Straight
Current	2A
Model	QTH-030-05-L-D-A
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	QTH
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.5mm
Contact Plating	Gold
Number of Contacts	60
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

Features 60 contacts for high-density connectivity.
0.5 mm pitch ensures compact design suitable for modern PCBs.
Two-row configuration enhances signal capacity and organization.
Shrouded design provides added protection against accidental contact damage.
Utilizes surface mount technology for reliable PCB attachment.
Gold-plated phosphor bronze contacts ensure excellent conductivity and corrosion resistance.
Liquid crystal polymer housing offers durability and dimensional stability.
Supports up to 2 amp current and 125 V voltage ratings.

Product Description

The Samtec QTH-030-05-L-D-A is a straight surface PCB header from the QTH Series, engineered for robust and reliable board-to-board connections in electronic assemblies. With 60 contacts arranged in two rows, this header facilitates high signal density and organization, making it suitable for advanced circuit layouts.

Its 0.5 mm pitch delivers a compact solution, catering to the demands of modern printed circuit board designs where footprint efficiency is crucial. The shrouded design enhances protection, preventing damage or misalignment during installation and operation.

Built using liquid crystal polymer housing, the QTH-030-05-L-D-A provides excellent durability, thermal stability, and maintains precise mechanical tolerances even under challenging environmental conditions. Gold-plated phosphor bronze contacts offer superior conductivity, corrosion resistance, and extended operational lifespan, ensuring dependable connections for sensitive electronic signals.

The male contacts are terminated via surface mount soldering, securing the header firmly to the PCB. Rated at 2A and 125V, this connector is suitable for standard signal and power transmission in industrial, manufacturing, instrumentation, and professional electronics applications.

Operating reliably across temperatures ranging from -55°C to 125°C, the QTH series meets the requirements of harsh industrial environments, laboratory instruments, and commercial equipment. The board-to-board connector system supports versatile mounting, enabling designers to optimize layouts for both high-speed and ground-plane signal requirements.

Key applications include high-speed data and signal transfer, embedded systems, instrumentation panels, industrial controllers, and complex electronic assemblies in sectors such as manufacturing and laboratory automation. The shrouded, two-row format is particularly advantageous in modular and stackable PCB designs.

Samtec's QTH Series is known for its extended life product performance and compatibility with 28+ Gbps solutions, making it ideal for demanding electronics and high-frequency signal applications.

Explore more high-performance PCB headers and connector solutions from Samtec and other leading brands in Electronics & Electricals - Electronics Components - PCB Header at EnvMart.
