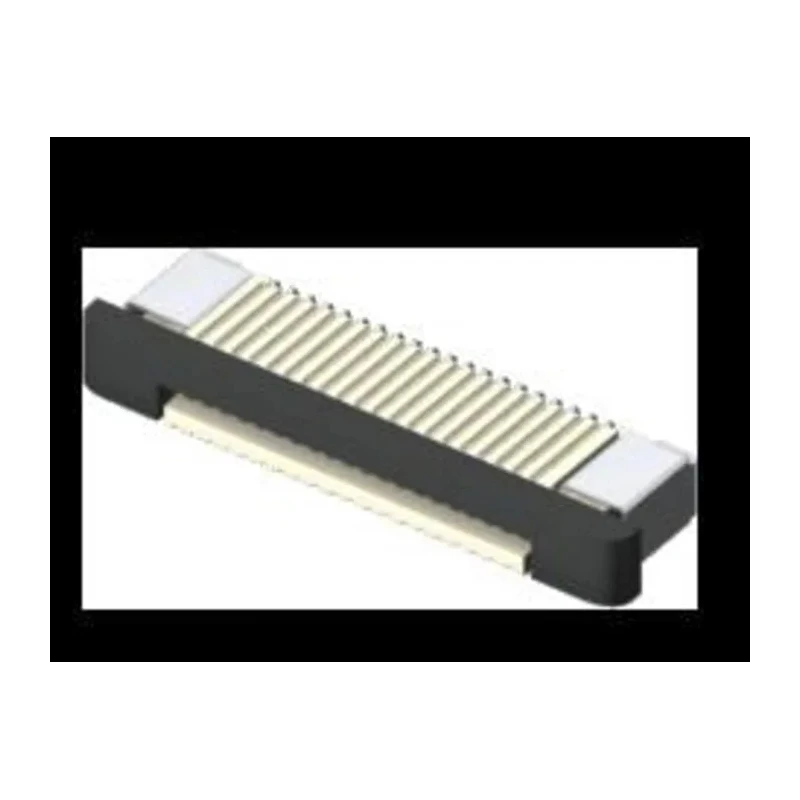

Samtec 0.5 mm Pitch 30 Way Horizontal Female FPC Connector Surface Mount, Solder ZF5S

Samtec ZF5S 0.5 mm Pitch 30 Way Horizontal Female FPC Connector offers high reliability and precision for electronic applications requiring fine-pitch flexible printed circuit connections. Its surface mount design with solder termination ensures secure PCB mounting suited for compact assembly environments.

The connector features phosphor bronze contacts with gold over nickel plating, providing superior conductivity and corrosion resistance. The liquid crystal polymer housing enhances mechanical strength while maintaining low profile dimensions.

Operating voltage is rated at 195V with current capacity of 1.8A, suitable for a wide range of electronic component interconnections. The connector supports a wide operating temperature range from -55°C to 105°C, making it ideal for demanding industrial, automotive, and consumer electronics environments.

With a zero insertion force (ZIF) mechanism and horizontal orientation, the connector facilitates ease of installation and reduces damage risk to mating components. The bottom contact position in a single-row 30-way configuration with a 0.5mm pitch allows compact and efficient board layout.

This connector is part of the ZF5S series by Samtec, renowned for quality and performance in flexible printed circuit applications. It is commonly used in communications equipment, industrial control systems, medical devices, and computing hardware requiring reliable signal integrity and mechanical durability.

Features 30 contact positions with phosphor bronze contacts plated with gold over nickel. Designed to operate at a voltage rating of 195V and a current rating of 1.8A. Constructed with liquid crystal polymer housing for enhanced durability and performance.

Supports bottom contact position ensuring robust connection in FPC applications. Operates reliably between -55°C and 105°C for a wide temperature range. Incorporates a single row configuration with a 0.5 mm pitch for compact design.

Utilizes surface mount technology with solder termination type for PCB mounting. Horizontal orientation facilitates easy integration into electronic circuits. Zero Insertion Force (ZIF) mechanism minimizes wear during mating cycles.

Part of the ZF5S series ensuring compatibility with related products. Explore the broad range of Samtec FPC Connectors and related electronics components at EnvMart for industrial, laboratory, and commercial applications.
