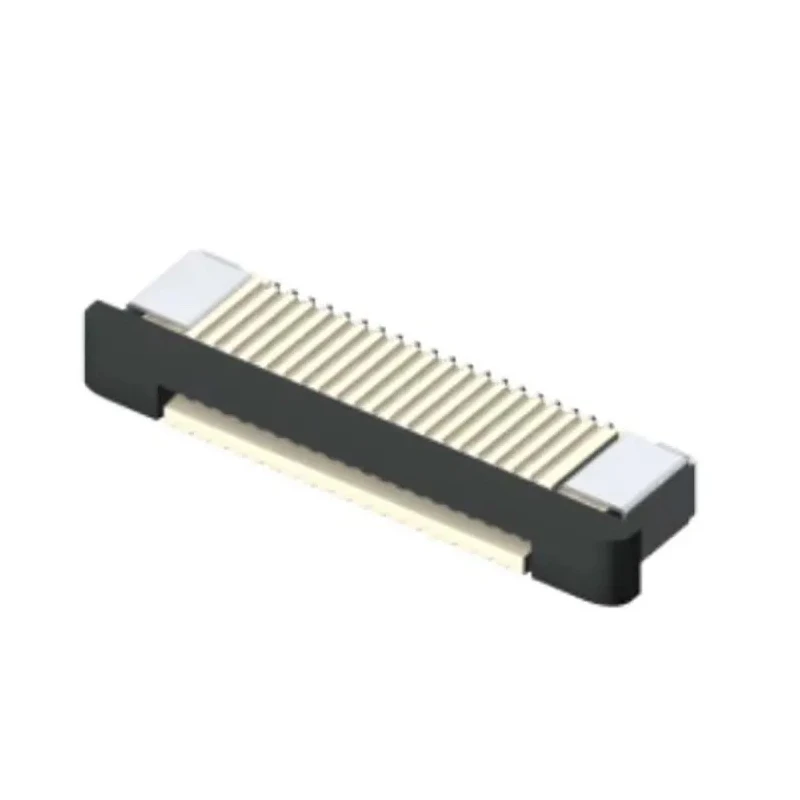

Samtec 0.5 mm Pitch 10 Way Right Angle Female PCB Socket, Solder ZF5S
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 1.8A |
| Model | ZF5S |
| Mount Type | Surface |
| Housing Material | Natural LCP |
| Contact Material | Phosphor Bronze |
| Series | ZF5S |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 0.5mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Top |
Key Features
- This PCB socket is constructed with phosphor bronze contacts for high conductivity and durability.
- It features a 0.5 mm pitch with 10 contacts for compact and precise connections.
- The socket includes a locking mechanism and right angle orientation for reliable installation.
- It supports a current rating of 1.8 amperes and operates between -55°C to 105°C.
- The contact plating is tin over nickel for corrosion resistance and solder compatibility.
- Designed for surface-mount (SMT) applications, it ensures stable top-position contacts.
- The housing uses natural liquid crystal polymer (LCP) for mechanical stability and heat resistance.
- The insertion force is zero (ZIF), protecting delicate flexible flat cables from damage.
Product Description
Samtec ZF5S 0.5 mm Pitch 10 Way Right Angle Female PCB Socket is a high-performance Zero Insertion Force (ZIF) connector designed for flexible flat cable (FFC) applications. Featuring a 0.5 mm pitch and 10 contact positions, this PCB socket is optimized for compact electronic circuit designs requiring reliable surface-mount solder connections.
This socket uses phosphor bronze contacts plated with tin over nickel, ensuring excellent conductivity, solderability, and corrosion resistance. The natural liquid crystal polymer (LCP) housing offers mechanical robustness and can withstand operating temperatures from -55°C up to 105°C, making it suitable for a wide variety of industrial, laboratory, and electronics manufacturing environments.
With a right-angle orientation and a locking mechanism, the ZF5S socket provides secure and space-saving cable connections on PCBs. Its zero insertion force design minimizes wear and damage to FFCs during assembly or maintenance. Rated for a current of 1.8 amperes, this connector fulfills demanding power and signal integrity requirements.
The product's surface-mount technology (SMT) mount type and top contact position contribute to easy and effective PCB assembly. It complies with RoHS standards for environmentally responsible manufacturing.
Phosphor bronze contact material ensures reliable electrical performance. 0.5 mm pitch allows compact cable routing and high-density PCB layouts. Ten contacts accommodate multi-signal connections. Zero insertion force reduces stress on cable conductors during insertion and removal.
Right angle orientation supports tight PCB layouts and cable routing. Natural LCP housing material provides thermal and mechanical durability. Locking mechanism secures cable connection against vibration or movement.
This connector is ideally suited for electronics manufacturing, industrial equipment, communications devices, and other applications requiring robust and precise FPC socket solutions. It is a key component for surface-mount assembly lines and automated PCB production.
Explore more in EnvMart's range of PCB Sockets and electronic connectors for your industrial and laboratory requirements.
