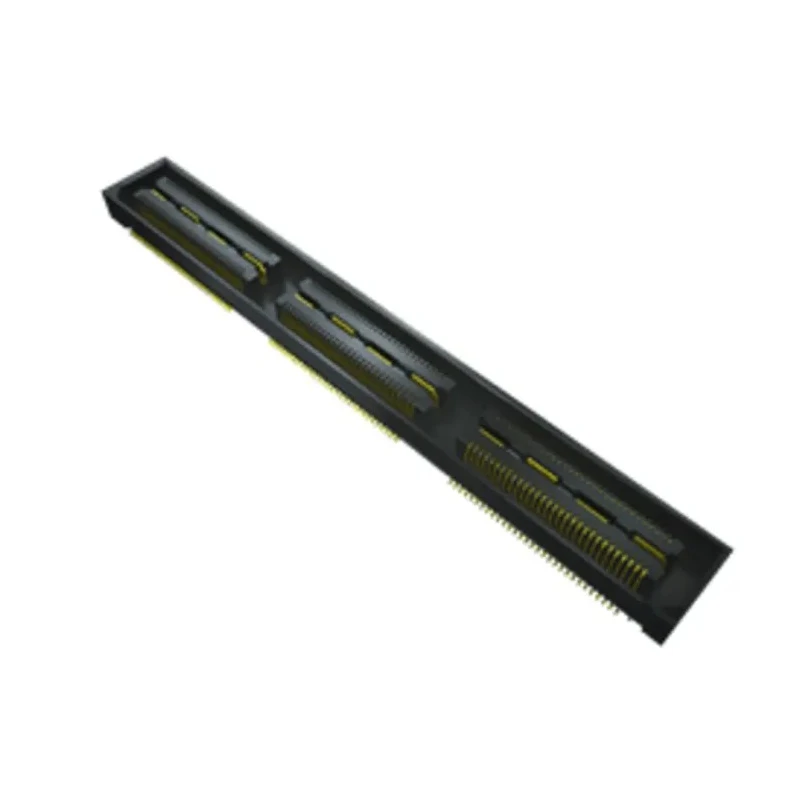

Samtec QSH-060-01-F-D-A PCB Socket 120-Contact, 2 Row, 0.5mm Pitch, Board-to-Board, Straight, Surface Mount, 5mm Stack Height

The Samtec QSH-060-01-F-D-A is a high-density surface mount PCB socket designed for advanced board-to-board connections in electronic assemblies, offering 120 contacts split across two rows and a fine 0.5mm pitch. Its compact design and straight orientation allow engineers to implement reliable, low-profile interconnections in space-constrained environments such as embedded computing modules, telecommunications devices, instrumentation, and industrial control equipment.

Built with precision, this PCB socket employs gold-plated bronze contacts housed in a robust liquid crystal polymer (LCP) insulator, ensuring long-lasting conductivity and excellent mechanical performance. The component supports high-speed differential pair applications, reliably operating at frequencies up to 9.5 GHz with data rates up to 19 Gbps - making it suitable for cutting-edge digital signal transmission and fast data buses.

The QSH-060-01-F-D-A's straight surface mount termination supports efficient automated assembly and ensures a sturdy, vibration-resistant fit on the PCB. With a stacking height of 5mm, it maintains a low profile ideal for slim multi-board configurations. The socket is rated for a maximum current of 25A and a voltage range up to 175V, providing both power and signal connectivity in demanding systems.

This connector's wide operating temperature range, from -55°C to 125°C, meets the stringent requirements of industrial, communications and laboratory applications. The 0.5mm pitch and advanced construction support up to 80 differential pairs, enabling high bandwidth density for densely packed systems or devices under EMC constraints.

Whether deployed in embedded systems, industrial computers, telecommunications infrastructure, or high-reliability laboratory equipment, the Samtec QSH-060-01-F-D-A delivers robust interconnect functionality, reliability and signal integrity for modern electronic designs.

Key features include board-to-board system compatibility, easy surface mounting, outstanding signal integrity at high speeds, and solid mechanical design for industrial-grade environments. A comprehensive use case includes embedded computing, test and measurement equipment, instrumentation, high-performance data buses, and compact power distribution architectures.
