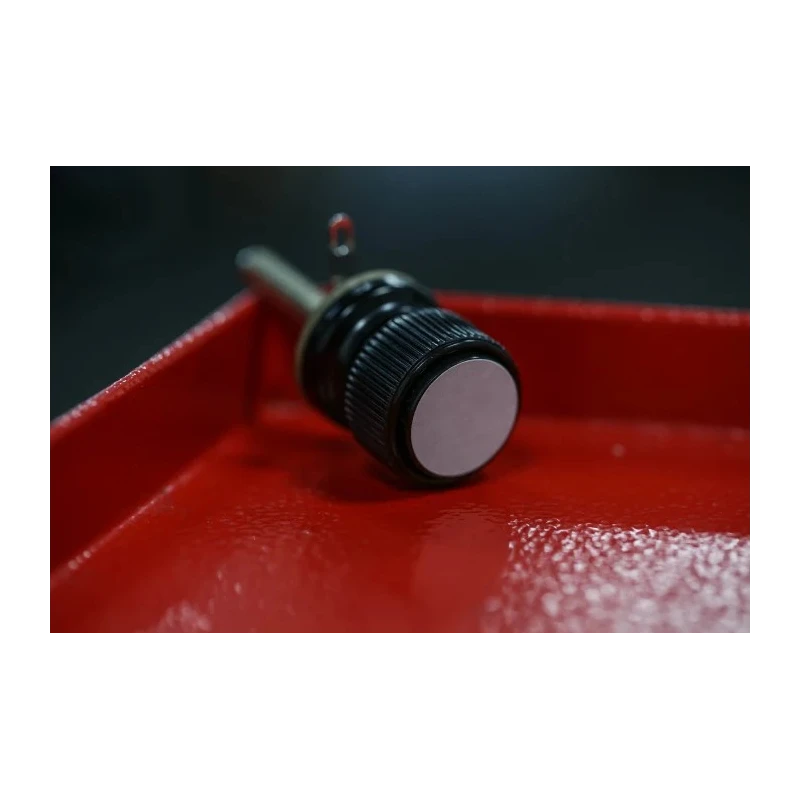

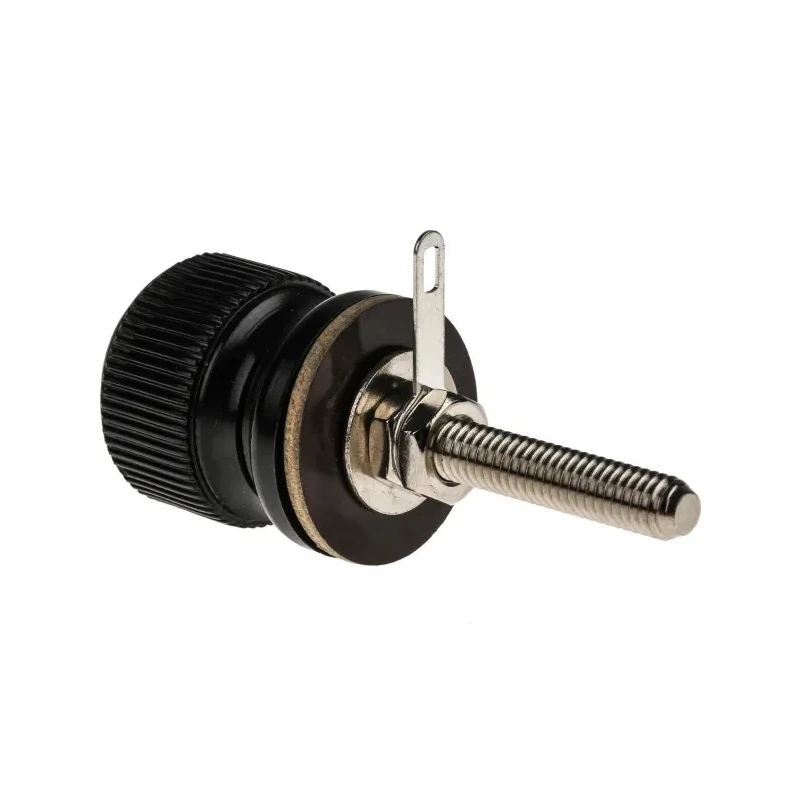

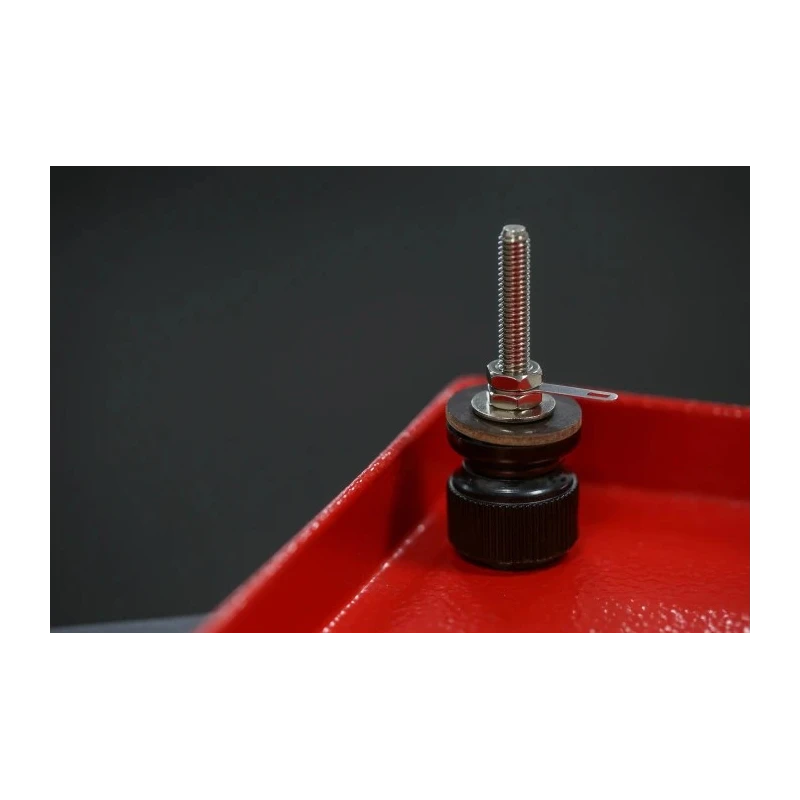

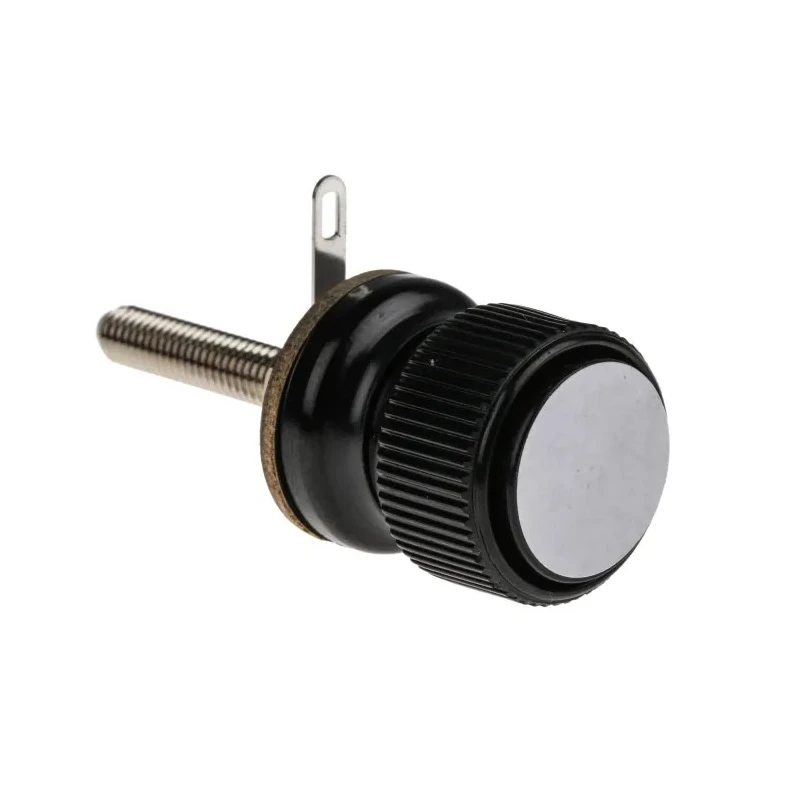

RS PRO Black Insulated Terminal Post 3kV Voltage, M6 Thread Size, 30A Current 444-781

RS PRO 444-781 insulated terminal post is a high-quality electrical component ideal for industrial and commercial applications requiring reliable power connections up to 30A. With a proof voltage rating of 3000V (3kV), this terminal post ensures safe and secure electrical performance.

The terminal post features a black insulated body molded from Tenite Butyrate and Phenolic resin, materials known for excellent electrical insulation and thermal stability. Its metal components are nickel-plated brass, enhancing durability and resistance to oxidation and corrosion.

The design accommodates a maximum panel thickness of 25mm and extends 28mm above the panel, with an overall diameter of 25mm. This makes it suitable for use with high current power supplies, chargers, and test connector assemblies.

Rated for a wide temperature range from -25°C to +85°C, it withstands various industrial environments including manufacturing, electrical test and measurement setups, and laboratory power distributions.

Black insulated body made with Tenite Butyrate and Phenolic resin. Nickel-plated brass metal parts for enhanced corrosion resistance. Supports maximum current of 30A with a 3kV proof voltage rating. Designed for panel thicknesses up to 25mm and 28mm height above panel.

Overall diameter of 25mm for compatibility with standard high current connections. Complies with REACH standards ensuring regulatory compliance. Manufactured in the United Kingdom guaranteeing quality and reliability.

This terminal post is widely used in industrial, laboratory, HVAC, and electrical power distribution applications where safety, durability, and high current capacity are essential.
