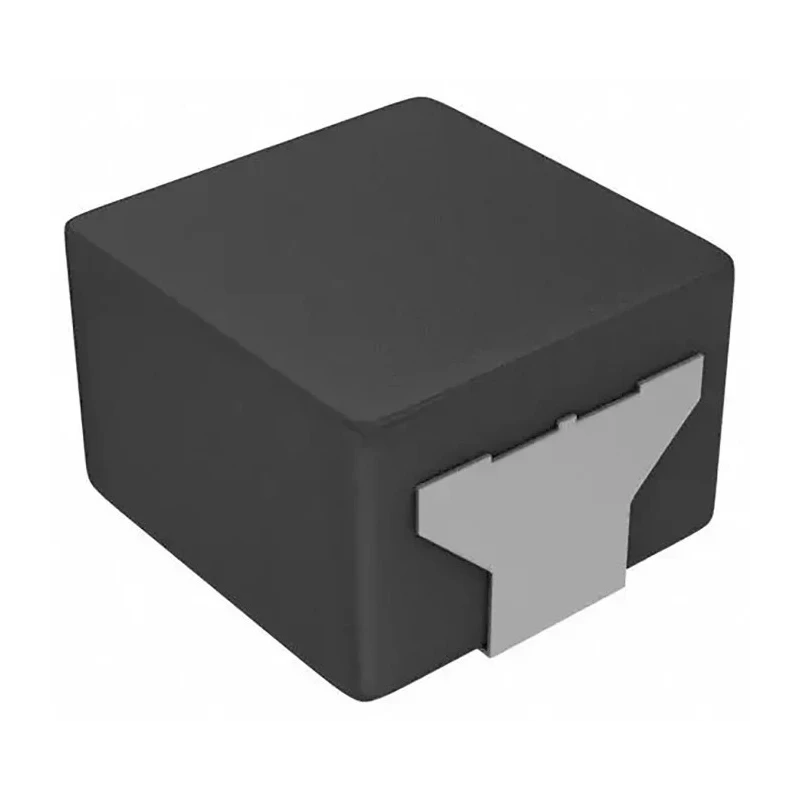

Panasonic ETQP4M Surface Mount Inductor 4.7μH 10.4A Metal Composite Core Integral Construction AEC-Q200
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 4mm |
| Length | 10.7mm |
| Model | ETQP4M |
| Depth | 10mm |
| Packaging | Embossed Carrier Tape |
| Series | ETQP4M |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Package/Case | 1040 |
| Maximum DC Current | 10.4A |
| Maximum DC Resistance | 12mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Integral Construction |
| Automotive Standard | AEC-Q200 |
Key Features
- Surface mount design ensures compact and low profile installation.
- Metal composite core material provides high reliability and heat resistance up to 155°C.
- Low DC resistance of 12mΩ enables high efficiency.
- Inductance tolerance of ±20% supports stable performance.
- Qualifies for automotive applications with AEC-Q200 standard certification.
- Operating temperature range from -55°C to 155°C suits harsh environments.
- Ideal for noise filtering in drive circuitry and DC/DC converters.
- Integral construction reduces audible noise during operation.
Product Description
Panasonic ETQP4M surface mount inductor, model ETQP4M4R7KVC, combines a metal composite core with integral construction to provide a reliable and high-performance power choke solution. Designed for automotive and industrial electronic applications, this inductor features a 4.7μH inductance rating with ±20% tolerance and a high maximum DC current of 10.4 amperes.
The ETQP4M series is constructed to withstand harsh conditions with excellent heat resistance up to 155°C and a wide operating temperature range from -55°C. The low DC resistance of 12mΩ reduces power loss, enhancing overall efficiency while suppressing audible noise.
This low-profile component measures 10.7mm in length, 4mm in height, and 10mm in depth, allowing for compact PCB integration. The surface mount termination style and packaging on embossed carrier tape facilitate automated assembly processes.
Certified to the automotive AEC-Q200 standard, the ETQP4M inductors are ideal for use in noise filtering applications within drive circuitry demanding peak current handling and consistent operation at elevated temperatures. They are well suited for use in DC/DC buck and boost converters, contributing to power regulation and signal integrity.
Surface mount design for space-saving PCB layouts. Core metal composite material delivers high bias current capability. Reliable operation with automotive-grade AEC-Q200 certification. Robust temperature tolerance from -55°C to 155°C.
Low audible noise reduces operational sound interference. Integral construction enhances mechanical stability and performance. Packaging optimized for automated placement via embossed carrier tape. Compact dimensions support diverse electronic device integration.
These Panasonic ETQP4M inductors are manufactured in Japan, ensuring quality and compliance with RoHS environmental standards. They are an excellent choice for engineers seeking efficient and durable power inductors for advanced automotive and industrial electronics applications.
Explore more high-quality surface mount inductors and related electronic components at EnvMart to complement your design and manufacturing projects.
Explore more products in our Passive Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance rating of this model is 4.7μH with an inductance tolerance of ±20%.
It can handle a maximum DC current of 10.4A.
The operating temperature range for this inductor is from -55°C to 155°C.
This inductor features a metal composite core material, which provides high reliability and heat resistance.
The DC resistance is 12mΩ, which contributes to its high efficiency.
It is packaged on embossed carrier tape, facilitating automated assembly processes.
Yes, it is certified to the automotive AEC-Q200 standard, making it suitable for automotive applications.
The dimensions are 10.7mm in length, 4mm in height, and 10mm in depth.
This inductor is manufactured in Japan, ensuring quality compliance with RoHS standards.
The termination style of this model is surface mount, allowing for compact PCB integration.
