Molex PCB WiFi Antenna with Micro-Coaxial RF Connector, Ultra Wideband (UWB), 3-6 GHz Frequency, 3.5dBi Gain 146184-0300

Free Delivery in India | Lowest Global Shipping Charges

Molex PCB WiFi Antenna with Micro-Coaxial RF Connector, Ultra Wideband (UWB), 3-6 GHz Frequency, 3.5dBi Gain 146184-0300

Name: Molex PCB WiFi Antenna with Micro-Coaxial RF Connector, Ultra Wideband (UWB), 3-6 GHz Frequency, 3.5dBi Gain 146184-0300
Brand: Molex
SKU: 193653



Category Passive Components Brand Molex Condition New

Specifications

Country of Origin	China
Brand	Molex
Cable Length	300mm
Connector Type	Micro-Coaxial RF
Bandwidth	3GHz
Series	146184
Gain	3.5dBi
Maximum Frequency	6GHz
Minimum Frequency	3GHz
Internal/External	Internal
RF Protocols	Ultra Wideband (UWB)
Antenna Physical Form	PCB
Antenna Mount Type	Adhesive
Directivity	Omni-Directional
Antenna Internal Construction	Ultra Wideband (UWB) PCB Antenna with Balanced Transmission
Number of Bands	2

Key Features

The antenna features a balanced wideband design ensuring ground-plane-independent performance.
It includes a micro-coaxial cable of 300mm length terminated with an SMT male connector.
The antenna gain is 3.5dBi with omni-directional directivity.
The PCB form factor antenna is mounted using double-sided adhesive tape for easy installation.
It operates with 50-Ohm input impedance and supports ultra wideband RF protocols.
The compact antenna size is 47 x 17.6 x 0.3 mm excluding the cable.
It provides stable performance across two frequency bands between 3 and 6 GHz.

Product Description

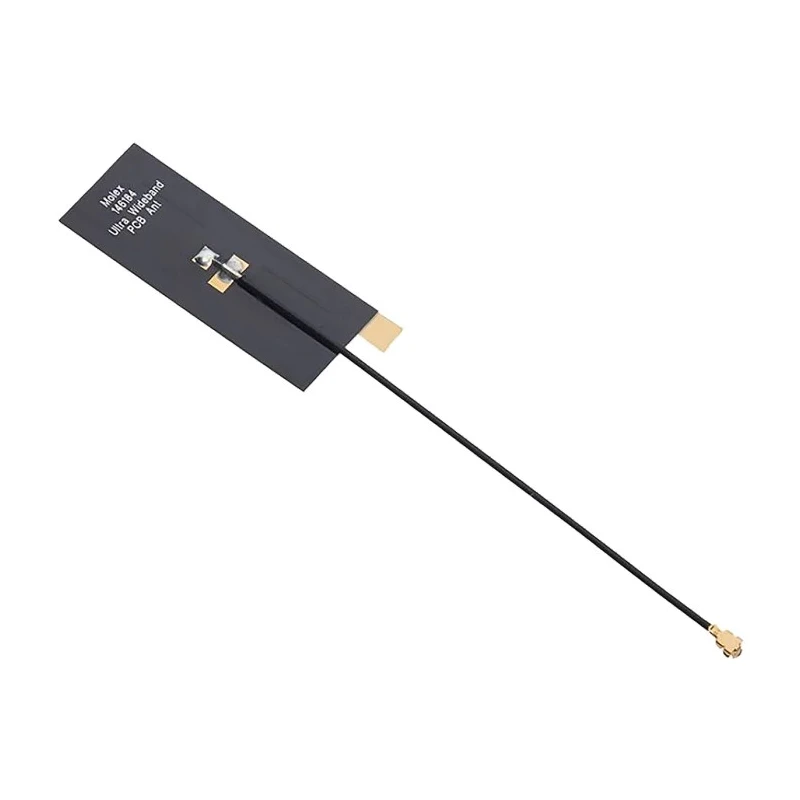

Molex 146184-0300 PCB WiFi Antenna is an internal antenna designed for ultra wideband (UWB) applications operating between 3 GHz and 6 GHz. It features a balanced wideband PCB design that maintains consistent performance independent of the PCB ground plane, providing reliable signal quality in diverse electronic environments.

This antenna is equipped with a 300mm micro-coaxial cable terminated with an SMT male connector compatible with 50-Ohm SMT MCRF jack receptacles, facilitating straightforward integration into wireless devices. The adhesive mounting method allows for simple and secure placement on PCB surfaces.

With a gain of 3.5dBi and omni-directional directivity, the antenna supports efficient signal transmission and reception, making it suitable for various industrial and commercial wireless networking applications. Its compact dimensions (47 x 17.6 x 0.3 mm) ensure compatibility with space-constrained designs.

The ultra wideband antenna supports two bands within the 3 to 6 GHz frequency range, enabling versatile RF communication protocols. It is ideal for use in electronic components, power connectors, and antenna systems within industrial, manufacturing, and telecommunications sectors.

The balanced antenna design minimizes performance degradation caused by PCB ground effects. Micro-coaxial cable length of 300mm enables flexible placement inside devices. Operates over a wide bandwidth of 3 GHz supporting UWB RF protocol.

Adhesive mounting allows quick installation and repositioning. Omni-directional radiation pattern provides uniform coverage. Compact PCB form factor with low profile suits embedded applications. Rated for 50 Ohm impedance ensuring compatibility with standard RF connectors.

This Molex antenna is manufactured in China and meets essential technical standards for WiFi antenna components. It offers engineers and designers an efficient solution for PCB integrated ultra wideband wireless communication systems.

Explore more WiFi antennas and connectors in the Electronics & Electricals category on EnvMart for comprehensive component selection.

Explore more products in our Passive Components category.
