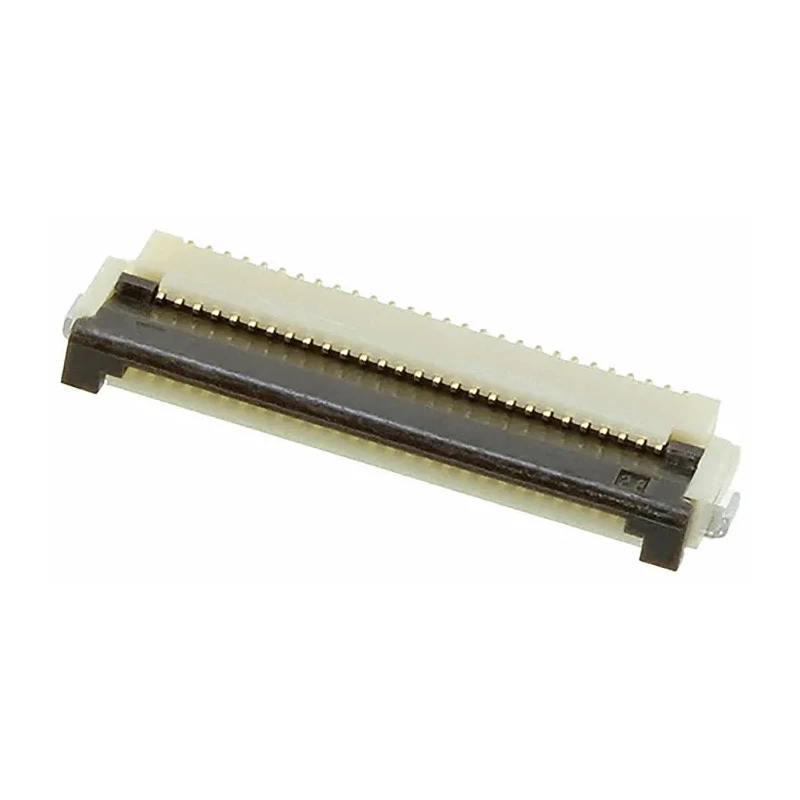

Hirose 0.5 mm Pitch 28 Way Right Angle Female FPC Connector Solder FH12

Hirose FH12 0.5 mm Pitch 28 Way Right Angle Female FPC Connector with solder termination is designed for high-density PCB applications requiring reliable and compact connectors. The FH12 series supports zero insertion force (ZIF) via a one-touch rotating actuator, which reduces mechanical strain during mating and enhances connector life. Its tactile click confirms a secure mating connection, minimizing potential assembly errors.

This connector features 28 gold-plated phosphor bronze contacts arranged in a single row with a 0.5 mm pitch. The right angle, bottom contact configuration allows for space-saving mountings on printed circuit boards, commonly found in mobile phones, GPS devices, notebook PCs, data terminals, LCD TVs, digital cameras, and other portable electronics.

Constructed with a durable polyamide housing, the connector operates effectively within a wide temperature range from -40°C to 85°C and supports up to 50V AC and 500mA current, ensuring dependable electrical performance in various environments. The integrated locking mechanism secures the connection, preventing accidental disconnections during device operation or handling.

The FH12 series connector is ideal for industrial, commercial, and consumer electronics requiring precise, space-saving connection solutions with ease of use and robust mechanical and electrical properties.

Features a 0.5 mm pitch for high-density PCB mounting. Includes 28 phosphor bronze contacts with gold plating for reliable connectivity. Right angle orientation with bottom contact position for compact PCB design. Supports zero insertion force (ZIF) with a one-touch rotating actuator.

Rated for 50V AC voltage and 500mA current carrying capacity. Operates reliably from -40°C to 85°C temperature range. Housing made from durable polyamide material ensuring longevity. Includes a locking mechanism to secure connection stability.

Manufactured in Japan ensuring high quality standards. Explore more FPC Connectors and related electronics components from EnvMart for your industrial and commercial needs.
