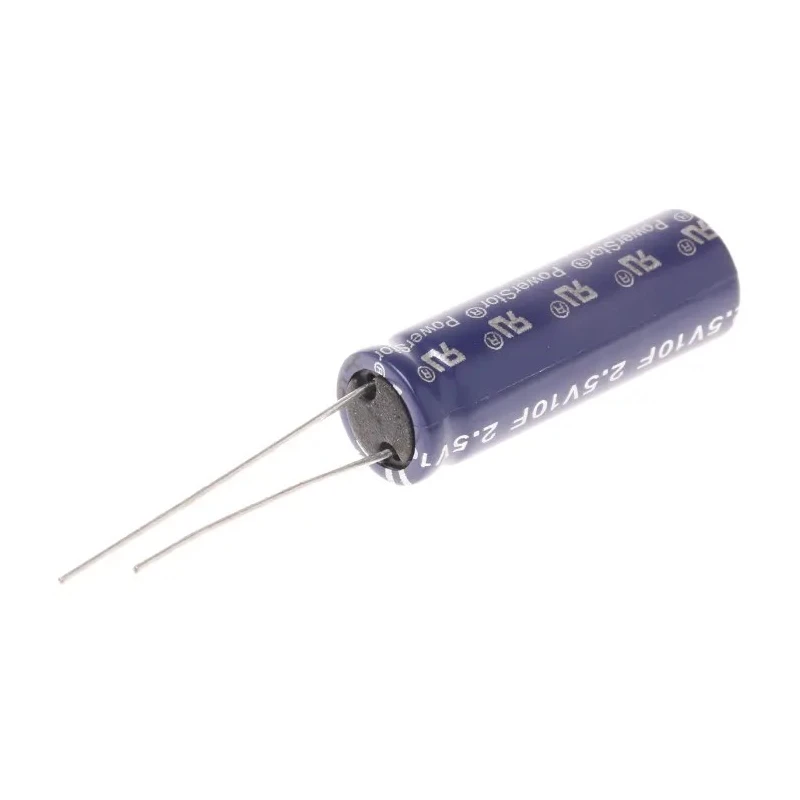

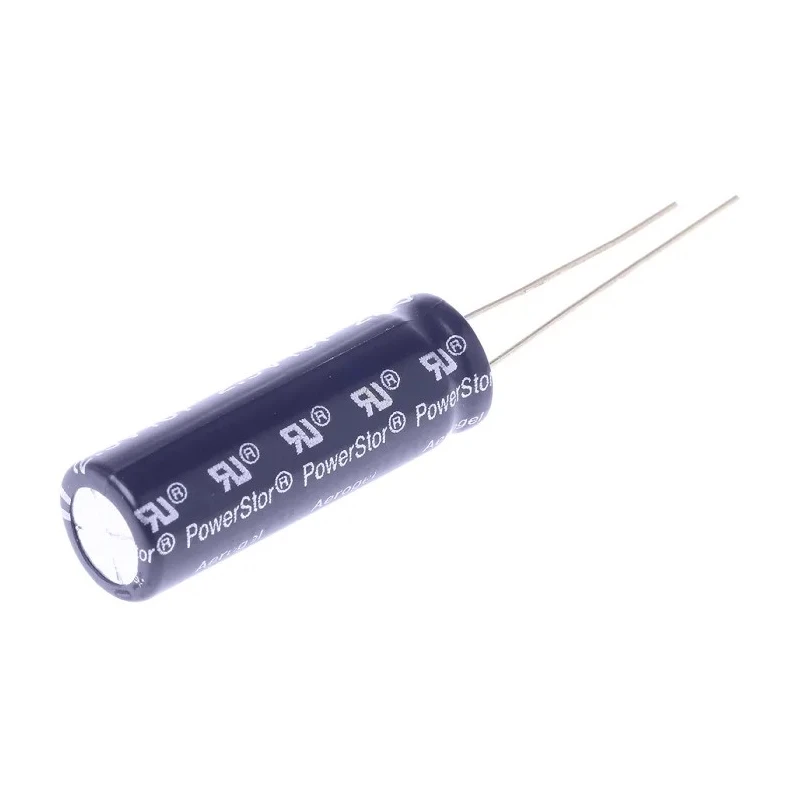

Eaton 10 F Supercapacitor 2.5V DC Through Hole Mount -10 to 30 % Tolerance HB1030-2R5106-R
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 2.5V dc |
| Diameter | 10.5mm |
| Brand | Eaton |
| Height | 31.5mm |
| Model | HB1030-2R5106-R |
| Depth | 31.5mm |
| Packaging | Bag |
| Mount Type | Through Hole |
| Series | Supercap HB |
| Maximum Operating Temperature | 70°C |
| Tolerance | -10 to 30 % |
| Lifetime | 1000 h |
| Capacitance | 10F |
| Minimum Operating Temperature | -25°C |
| Polarity | Positive |
| Terminal type | Through Hole |
| Leakage Current | 20μA |
| Standards/Approvals | RoHS, UL |
| Pin Count | 2 |
| Lead Pitch | 5mm |
| Lead Diameter | 0.6mm |
| Equivalent Series Resistance ESR | 60mΩ |
| Capacitor Family | Electric Double Layer |
| Panasonic 10F Supercapacitor, HW 2.3V dc, Through HoleBrand | Panasonic |
Key Features
- Features capacitance of 10 farads for high energy density applications.
- Operates at a rated voltage of 2.5 volts DC with a tolerance of -10 to 30 percent.
- Through hole mount design with 0.6mm lead diameter and 5mm lead pitch for PCB integration.
- Has a low equivalent series resistance (ESR) of 60 milliohms supporting high power density.
- Designed for operation across a temperature range from -25°C to 70°C.
- Leakage current is maintained at a low 20 microamperes to ensure energy retention.
- Durable construction with a lifetime rating of 1000 hours under specified conditions.
- Complies with RoHS and UL standards ensuring environmental and safety compliance.
Product Description
Eaton HB1030-2R5106-R is a high-performance 10 farad supercapacitor rated for 2.5V DC operation, designed for through hole mounting on printed circuit boards. Utilizing electrochemical double layer capacitor (EDLC) technology, this device provides ultra-high capacitance in a compact and durable package, making it suitable for applications demanding high energy density and power delivery.
The supercapacitor features a tolerance range from -10 to 30 percent, accommodating variations in capacitance while maintaining operational reliability. Its low equivalent series resistance (ESR) of 60 milliohms offers excellent power density and fast charge/discharge cycles, ideal for industrial, electronic, and commercial applications.
Operating between -25°C and 70°C, the device ensures stable performance in varied environmental conditions. It maintains a low leakage current of 20 microamperes, promoting energy efficiency and longevity with a rated operational life of 1000 hours.
The component is constructed with positive polarity, has two pins, and utilizes a 0.6mm lead diameter with a 5mm lead pitch, facilitating secure through hole mounting. The physical dimensions are a diameter of 10.5mm and a height and depth of 31.5mm, allowing for compact installation on electronic assemblies.
Fully compliant with RoHS and UL standards, the Eaton supercapacitor meets critical environmental and safety requirements expected in modern electronics manufacturing. Features capacitance of 10 farads for high energy density applications.
Operates at a rated voltage of 2.5 volts DC with a tolerance of -10 to 30 percent. Through hole mount design with 0.6mm lead diameter and 5mm lead pitch for PCB integration. Low equivalent series resistance (ESR) of 60 milliohms.
Operating temperature range from -25°C to 70°C. Leakage current of 20 microamperes for energy retention. 1000-hour lifetime under specified conditions. Compliant with RoHS and UL standards. Compact dimensions: 10.5mm diameter, 31.5mm height and depth.
Positive polarity with 2-pin configuration.
This supercapacitor is ideal for usage in industrial electronics, power backup systems, energy storage modules, automotive electronics, and other electrical applications requiring high capacitance at low voltage. Eaton's PowerStor HB series represents a trusted choice for demanding environments and long-term reliability.
Explore more Supercapacitors and electronic components at EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a capacitance of 10 farads, suitable for high energy density applications.
This supercapacitor operates at a rated voltage of 2.5 volts DC.
The tolerance range is from -10 to 30 percent, allowing for variations in capacitance.
It features a low equivalent series resistance (ESR) of 60 milliohms, supporting high power density.
The supercapacitor has a diameter of 10.5mm and a height and depth of 31.5mm.
It operates within a temperature range of -25°C to 70°C.
The leakage current is maintained at a low level of 20 microamperes.
This model features a through hole mount design, suitable for PCB integration.
It complies with RoHS and UL standards, ensuring environmental and safety compliance.
It has a positive polarity with a 2-pin configuration.
The lead diameter is 0.6mm with a lead pitch of 5mm.
