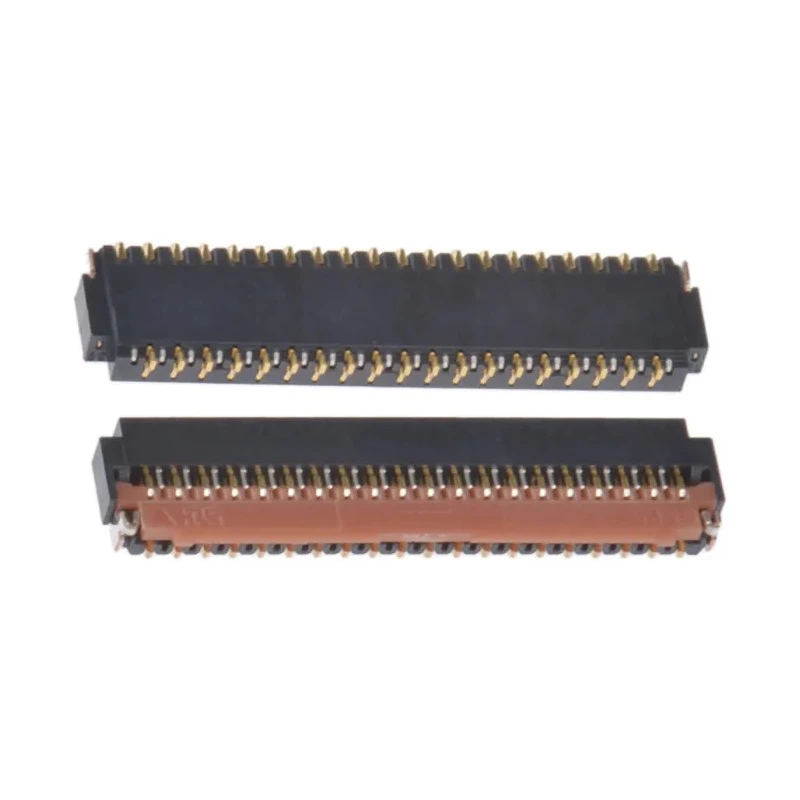

Hirose FH26 0.3 mm Pitch 33 Way Straight Female FPC Connector, Solder

Hirose FH26W-33S-0.3SHW(97) 33 Way Straight Female FPC Connector with 0.3 mm pitch is a high-quality ZIF (zero insertion force) connector designed for use in compact and miniaturized electronic applications. It features a low profile height of just 1.00 mm and a narrow width of 3.2 mm, delivering space-saving benefits on printed circuit boards (PCBs).

The connector includes 33 phosphor bronze contacts plated with gold for reliable electrical performance and durability. The bottom contact position and female connector gender provide versatile mating options. A one-touch rotating actuator enables easy insertion and secure locking of flexible printed circuits (FPC) or flexible flat cables (FFC), producing a tactile click to confirm full closure.

The solid enclosed bottom design allows mounting over conductive PCB traces without risk of short circuits. Double-sided leads with 0.6 mm pitch simplify surface mounting processes. The polyamide housing ensures mechanical strength and excellent insulation. Metal fittings on the sides guide and accurately align the FPC, without increasing connector footprint on the PCB.

Designed for voltages up to 30 V AC and currents of 200 mA, this connector operates reliably across temperatures from -55°C to 85°C. It includes a locking mechanism for secure retention and satisfies halogen free standards in line with IEC61249-2-21 for environmentally friendly design.

Typical applications include miniaturized portable electronic equipment such as notebooks, mobile phones, PDAs, portable audio players, and DVD-R devices, where space saving and reliable connection are critical.

This product is ideal for electronics manufacturing requiring precision, durability, and compliance with modern environmental standards. It supports laboratory, industrial, consumer electronics, and communication device applications.

Features low profile 1.0 mm height for PCB space savings. Rotating one-touch actuator enables easy FPC/FFC insertion. Tactile click confirms secure actuator locking. Gold plated phosphor bronze contacts for reliability. Polyamide housing material enhances insulation and strength.

Supports a wide operating temperature range (-55°C to 85°C). Enclosed bottom design allows mounting over conductive PCB traces. Halogen free according to IEC61249-2-21. Explore more FPC Connectors and related electronic components on EnvMart for your industrial, laboratory, and manufacturing needs.
