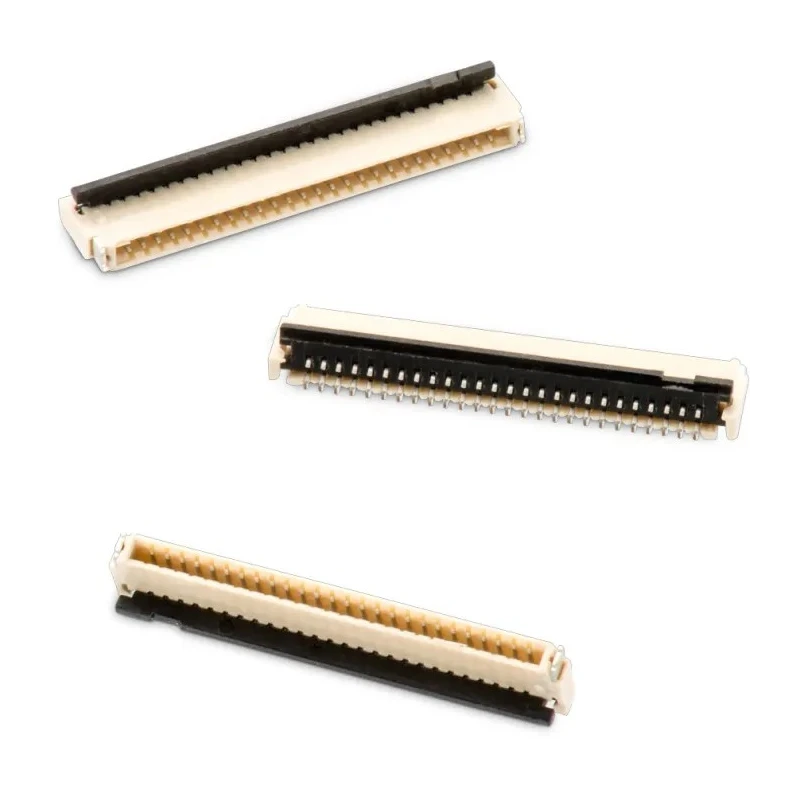

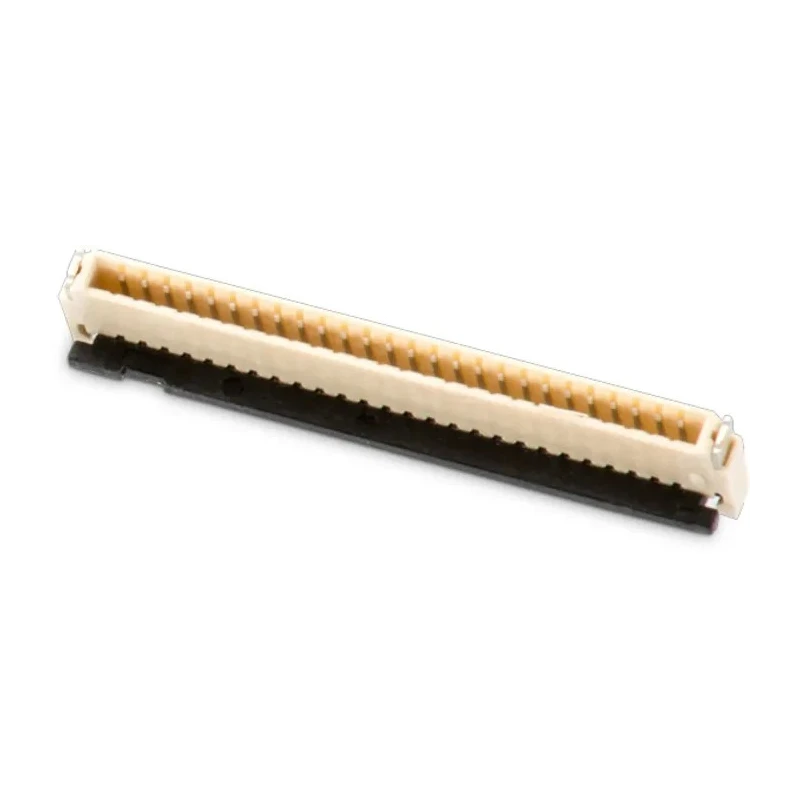

Wurth Elektronik WR-FPC 0.5 mm Pitch 36 Way Horizontal Female FPC Connector, ZIF 687136182122
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50V |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | ZIF |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -55°C |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 36 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Dual |
| Solder Tabs | Brass |
| Insulator Material | LCP |
Key Features
- Designed with 36 contacts and a 0.5 mm pitch for precision connectivity.
- Utilizes Zero Insertion Force (ZIF) technology for secure and reliable installation.
- Dual contact positions with phosphor bronze contacts, tin over nickel plating.
- Surface mount type perfect for PCB integration in electronics projects.
- Orientation is horizontal, providing flexibility in board layouts.
- Supports up to 500 mA current at 50 V voltage for versatile applications.
- Operating temperature range from -55°C to 85°C, suitable for demanding environments.
- Housing made from liquid crystal polymer for durability and stability.
Product Description
Wurth Elektronik introduces the WR-FPC 0.5 mm Pitch 36 Way Horizontal Female FPC Connector, ZIF, model 687136182122. This advanced FPC connector is engineered to provide precise, secure connectivity solutions for electronic device designs, PCB assembly, and flexible circuit integration.
As a Zero Insertion Force (ZIF) component, this connector ensures reliable contact performance with minimal physical stress during insertion and removal, making it ideal for high-cycle applications. The horizontal orientation allows convenient placement and integration within space-limited board layouts.
This connector includes 36 contacts, each constructed from high-quality phosphor bronze and finished with tin over nickel plating for improved conductivity and corrosion resistance. The contact position is dual, supporting consistent electrical interfaces across applications.
Features a robust surface mount structure, maintaining a secure fit during soldering and ongoing operation. The connector gender is female, with matching contact gender and a dual position layout. Termination type is ZIF, reducing insertion force requirements and simplifying cable mating processes.
Locking mechanism ensures secure retention of the FPC.
Electrical performance meets demanding industrial standards, with maximum supported current of 500 mA and voltage rating of 50 V. The connector operates reliably in temperatures from -55°C to 85°C.
Manufactured from liquid crystal polymer (LCP), the housing offers durability and thermal stability. Solder tabs are made from brass, providing solid integrity during PCB attachment. The insulator material is also LCP, supporting mechanical strength and thermal resistance.
This WR-FPC series connector from Wurth Elektronik is widely deployed in industrial, laboratory, medical device, automotive electronics, and consumer electronics sectors. Key applications include display connections, embedded system customization, flexible PCB interconnects, and sensor module integration.
Country of origin: China. Product condition: New. Model and MPN: 687136182122. Explore more advanced PCB connectors in the FPC Connector category and browse Wurth Elektronik’s portfolio for additional solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the WR-FPC connector is 0.5 mm, designed for precise connectivity in electronic applications.
This connector features 36 contacts, allowing for multiple connections in a compact design.
It supports a maximum current of 500 mA and a voltage rating of 50 V, suitable for various applications.
The housing is made from liquid crystal polymer (LCP), while the contacts are constructed from phosphor bronze with tin over nickel plating.
The operating temperature range is from -55°C to 85°C, making it suitable for demanding environments.
This model uses a surface mount type, facilitating integration into PCB designs.
The orientation of the WR-FPC connector is horizontal, providing flexibility in board layouts.
The termination type is Zero Insertion Force (ZIF), which minimizes the physical stress during insertion and removal.
Yes, it includes a locking mechanism that ensures secure retention of the flexible printed circuit (FPC).
It is widely used in industrial, laboratory, medical device, automotive electronics, and consumer electronics sectors for applications like display connections and sensor module integration.
The insulator material is also liquid crystal polymer (LCP), which supports mechanical strength and thermal resistance.
The WR-FPC connector is manufactured in China.
