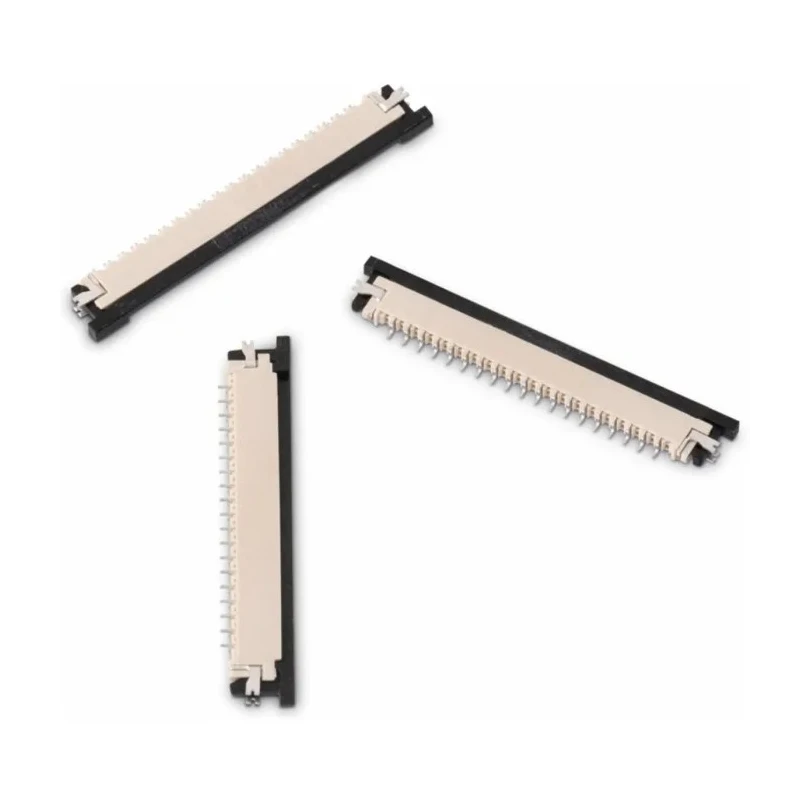

Wurth Elektronik WR-FPC 1 mm Pitch 15 Way Horizontal Female Surface Mount FPC Connector 686115183522
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 800mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- Features a low profile design with a height of just 1.2 mm for space saving.
- Equipped with a rotating flip lock actuator ensuring secure FPC retention and easy insertion.
- Constructed with phosphor bronze contacts plated with tin over nickel.
- Rated for 800mA current and 50V AC voltage with reliable electrical performance.
- Housing made from liquid crystal polymer for durability and insulation.
- Compatible with surface mount PCB assembly, with brass solder tabs for secure mounting.
- Supports a range of operating temperatures from -25°C to 85°C for versatile environments.
- Available with horizontal orientation and 15 contacts in a single row configuration.
Product Description
Wurth Elektronik 686115183522 FPC Connector is a 1 mm pitch, 15 way horizontal female surface mount connector designed for miniaturized, high density electronic applications.
This connector series offers a low profile height of 1.2 mm and a flip lock actuator mechanism that allows easy zero insertion force (ZIF) insertion of flexible printed circuits (FPCs), ensuring strong mechanical and electrical retention.
Contact material is phosphor bronze with tin over nickel plating, providing excellent conductivity and corrosion resistance. The housing is constructed from robust liquid crystal polymer, supporting durability and insulation under varied operating conditions ranging from -25°C to 85°C.
The connector supports a current rating of 800mA at 50V AC and features brass solder tabs on each side to secure it firmly to the printed circuit board during surface mount assembly.
This type of FPC Connector is ideal for use in consumer electronic devices such as tablets, mobile phones, screens, and touch panels, and also applicable in industrial, business, and medical electronic equipment that require compact and reliable FPC connections.
Low profile 1.2 mm height design ideal for space-limited applications. Rotating flip lock actuator facilitates simple and secure FPC insertion. Phosphor bronze contacts with tin over nickel plating for reliable electrical performance.
Liquid crystal polymer housing ensures durability and insulation. Brass solder tabs increase mechanical stability on PCB. Temperature range supports various operational environments from -25°C to 85°C. Supports 15 contacts arranged in a single horizontal row for compact connections.
Rated for 800mA current and 50V AC voltage for typical signal applications.
The Wurth Elektronik WR-FPC series connectors facilitate reliable electrical connections in highly compact electronic assemblies and are well suited for industrial, laboratory, medical, and consumer electronics environments. Explore more products in Electronics Components on EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Wurth Elektronik WR-FPC connector features a low profile height of just 1.2 mm, making it suitable for space-limited applications.
This connector is rated for a current of 800mA and a voltage of 50V AC, ensuring reliable electrical performance in typical signal applications.
The housing is made from liquid crystal polymer, while the contacts are constructed from phosphor bronze with tin over nickel plating for excellent conductivity and corrosion resistance.
It supports a wide operating temperature range from -25°C to 85°C, making it versatile for various environments.
This model has 15 contacts arranged in a single row configuration, which facilitates compact connections in electronic assemblies.
This connector utilizes surface mount termination, allowing for secure mounting on printed circuit boards.
The Wurth Elektronik WR-FPC connector is designed for horizontal orientation, which is suitable for specific design layouts in electronic devices.
It is equipped with a rotating flip lock actuator that allows for easy zero insertion force (ZIF) insertion of flexible printed circuits (FPCs), ensuring strong retention.
Yes, this connector is ideal for use in consumer electronic devices such as tablets, mobile phones, screens, and touch panels, as well as in industrial and medical equipment.
The mounting type for this connector is surface mount, which allows for secure attachment to printed circuit boards during assembly.
The Wurth Elektronik WR-FPC connector is manufactured in India, contributing to its specifications and quality standards.
This connector is designed for high-density electronic applications, making it suitable for use in various sectors including consumer, industrial, and medical electronics.
