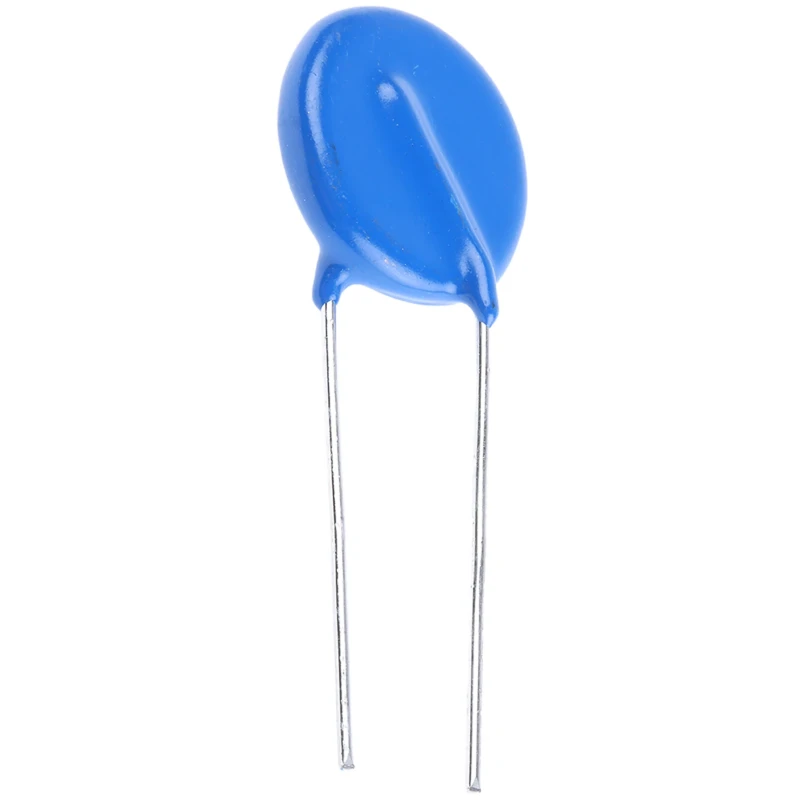

TDK Standard Metal Oxide Varistor 500 pF Capacitance 100 A Clamping Current 2970 V Clamping Voltage B72220S0461K101

Free Delivery in India | Lowest Global Shipping Charges

TDK Standard Metal Oxide Varistor 500 pF Capacitance 100 A Clamping Current 2970 V Clamping Voltage B72220S0461K101



Category Passive Components Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	21.5mm
Brand	TDK
Material	Metal
THICKNESS	6.8mm
Length	51mm
Model	B72220S0461K101
Depth	6.8mm
Mount Type	Lead
Series	Standard
Energy Rating	1J
Maximum Operating Temperature	85°C
Capacitance	500pF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	1465V dc
Standards/Approvals	IEC, CQC, UL, VDE, CSA
Pin Count	2
Lead Pitch	10mm
Maximum AC Voltage	1100V ac
Clamping Voltage VC	2970V
Clamping Current	100A
Maximum Surge Current	8kA
Varistor Voltage	750 V

Key Features

This varistor has a varistor voltage of 750 V and a clamping voltage of 2970 V for effective transient suppression.
The product features a 21.5 mm diameter ceramic body coated with epoxy resin and tinned copper leads.
It supports a maximum AC voltage of 1100 V and DC voltage of 1465 V with a maximum surge current of 8 kA.
Operating temperature range is from -40°C to 85°C ensuring durability in harsh environments.
Standard radial lead mount type and 10 mm lead pitch facilitate easy PCB installation.
The varistor is rated for energy absorption of 1 joule and complies with IEC, CQC, UL, VDE, and CSA standards.

Product Description

TDK B72220S0461K101 is a Standard Metal Oxide Varistor featuring a capacitance of 500 pF and rated for a clamping current of 100 A and clamping voltage of 2970 V. Its varistor voltage is 750 V, making it suitable for protecting electronic circuits against voltage spikes.

The component has a 21.5 mm diameter ceramic body coated with epoxy resin, with tinned copper wire leads for reliable electrical connection. This varistor supports a maximum AC voltage of 1100 V and DC voltage of 1465 V, and can withstand surge currents up to 8 kA, ideal for high-energy transient absorption.

Its operating temperature range from -40°C to 85°C makes it suitable for use in a variety of industrial and commercial applications including power supply surge protection, consumer electronics, and industrial machinery safeguarding.

The standard radial lead mount and 10 mm lead pitch simplify installation on PCBs. Furthermore, it offers an energy rating of 1 joule and meets international safety standards IEC, CQC, UL, VDE, and CSA, ensuring high quality and reliability in the field.

This varistor does not comply with automotive standards but is optimized for effective surge protection in general electrical and electronic systems. Its compact form factor with length and thickness of 51 mm and 6.8 mm respectively makes it space-efficient.

This varistor has a varistor voltage of 750 V and a clamping voltage of 2970 V for effective transient suppression. The product features a 21.5 mm diameter ceramic body coated with epoxy resin and tinned copper leads. It supports a maximum AC voltage of 1100 V and DC voltage of 1465 V with a maximum surge current of 8 kA.

Operating temperature range is from -40°C to 85°C ensuring durability in harsh environments. Standard radial lead mount type and 10 mm lead pitch facilitate easy PCB installation. The varistor is rated for energy absorption of 1 joule and complies with IEC, CQC, UL, VDE, and CSA standards.
