Samtec TSM Series Straight Surface Pin Header, 2.54 mm Pitch, 20 Contacts, 2 Row, Unshrouded, 4A, Surface TSM-110-01-L-DV-A

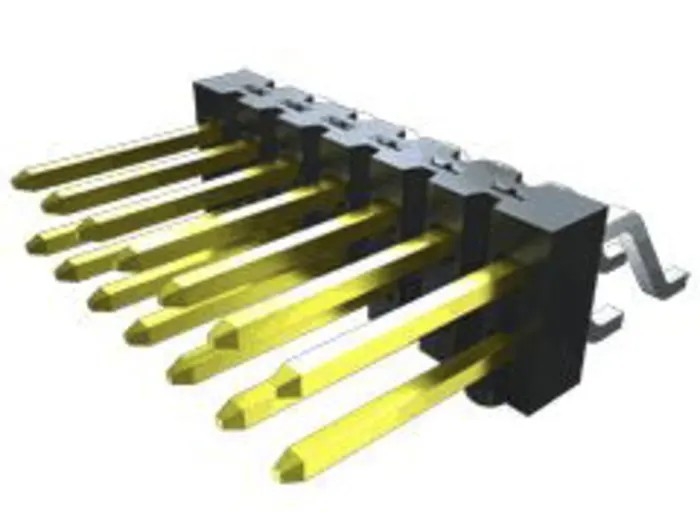

The Samtec TSM-110-01-L-DV-A is a high-quality straight surface mount pin header engineered for reliable electrical connections in PCB assemblies, featuring a compact design with 20 contacts arranged in 2 rows and a precise 2.54 mm pitch. This header is specially designed for surface mount applications, making it suitable for modern board-to-board interconnections in electronics manufacturing, laboratory prototyping, and industrial systems.

This pin header utilizes phosphor bronze contacts with gold plating, ensuring excellent conductivity and resistance to corrosion. The housing is constructed from liquid crystal polymer, offering robust mechanical strength and thermal stability. The device supports a maximum current of 4A and a voltage rating of 475V, catering to a wide variety of low to medium power PCB applications.

The TSM series is known for its versatile mating options, with this model featuring unshrouded male contacts for flexible connectivity. The 2.54 mm row pitch simplifies alignment and integration into standard PCB layouts. The header is rated for operation within a temperature range from -55°C to 125°C, suitable for both laboratory and industrial environments requiring reliability under variable thermal conditions.

Termination is by surface mount soldering, and the mating pin length is 5.84 mm, compatible with a range of Samtec socket solutions. Application areas include industrial controls, electronic instrumentation, robotics, laboratory equipment, and general electronic manufacturing where robust and precise PCB connection is required.

Designed for board-to-board connector systems, this pin header meets contemporary requirements for electrical performance and processing flexibility. Its unshrouded configuration allows for straightforward soldering, inspection, and mating, making it ideal for circuit R&D, production, and maintenance.

Reliable board-to-board connection for modern PCB layouts. Surface mount termination for streamlined PCB assembly processes. 20 gold-plated phosphor bronze contacts for efficiency and durability. Robust liquid crystal polymer housing for mechanical and thermal stability.

Supports diverse applications in industrial, laboratory, and electronic devices. Explore more Samtec PCB connectors and headers in EnvMart’s Electronics Components category for professional solutions tailored to your engineering requirements.
