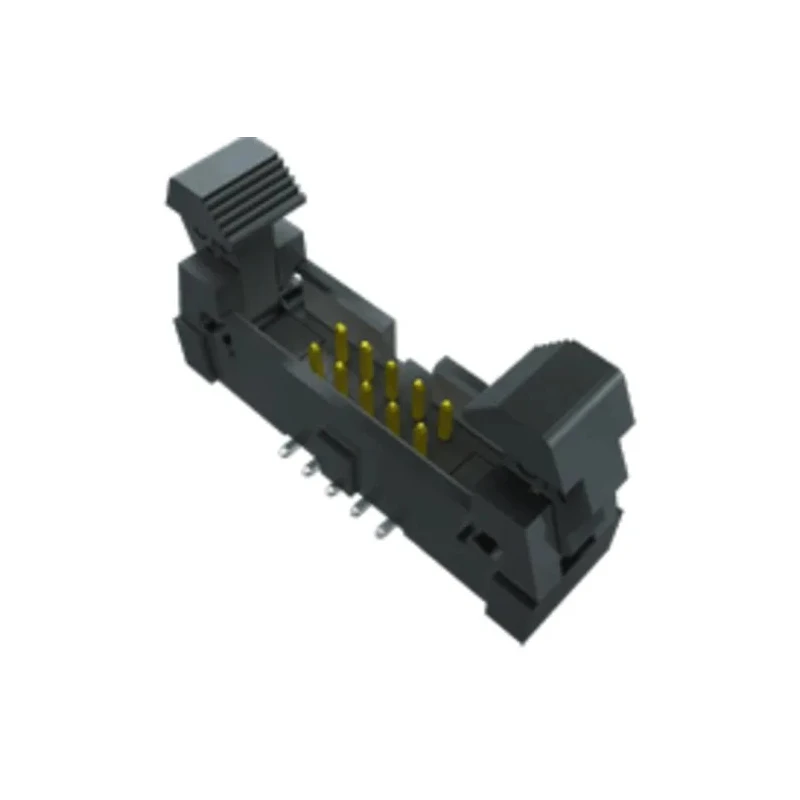

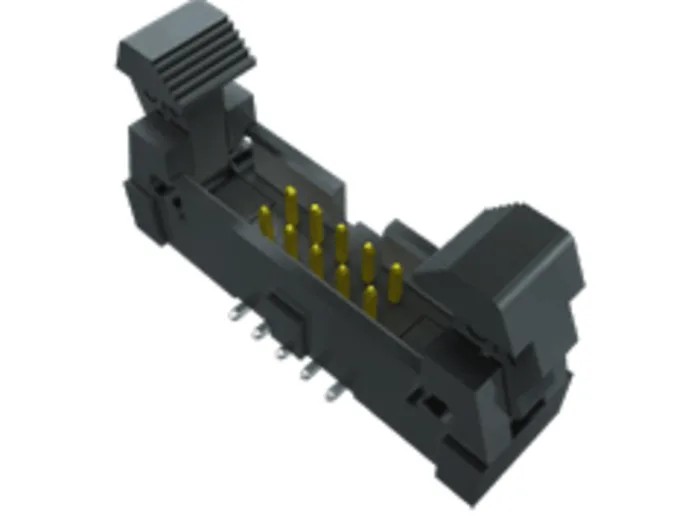

Samtec Straight Surface Mount PCB Header, 50 Contacts, 2 Row, 1.27 mm Pitch, Shrouded, EHF-125-01-L-D-SM-LC

Free Delivery in India | Lowest Global Shipping Charges

Samtec Straight Surface Mount PCB Header, 50 Contacts, 2 Row, 1.27 mm Pitch, Shrouded, EHF-125-01-L-D-SM-LC

Name: Samtec Straight Surface Mount PCB Header, 50 Contacts, 2 Row, 1.27 mm Pitch, Shrouded, EHF-125-01-L-D-SM-LC
Brand: Samtec
SKU: 80981
Price: 12.58 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	United States
Brand	Samtec
Orientation	Straight
Model	EHF-125-01-L-D-SM-LC
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	EHF
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	50
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features a dense 1.27 mm pitch for modern electronics designs.
Comprises 2 rows and 50 phosphor bronze male contacts.
Shrouded design improves connection alignment and cable retention.
Gold-plated contacts ensure high conductivity and corrosion resistance.
Liquid Crystal Polymer housing delivers high temperature stability and durability.
Wide operating temperature from -55°C to 125°C for challenging environments.
Wire-to-board termination with surface mount solder connection.
Polarisation notch supports correct cable mating.

Product Description

The Samtec EHF-125-01-L-D-SM-LC is a straight surface mount PCB header engineered for demanding electronic applications requiring a reliable wire-to-board solution. With 50 phosphor bronze, gold-plated male contacts arranged in 2 rows, this header is suitable for high-density circuit layouts and offers exceptional signal integrity.

Its fine 1.27 mm contact pitch allows integration into compact modern PCBs, optimizing real estate in advanced circuitry. The shrouded design improves physical alignment during mating, considerably reducing the likelihood of misconnection, while providing increased cable retention security when paired with appropriate cable assemblies.

This header is constructed using Liquid Crystal Polymer, offering the durability and high temperature stability essential for reflow soldering. Its wide operating temperature range from -55°C to 125°C makes it suitable for industrial and instrumentation environments where thermal stresses are prominent.

The surface mount termination simplifies soldering onto the PCB, and a polarisation notch is provided for correct orientation during assembly, further reducing potential assembly errors. The wire-to-board connector system is ideal for use in signal transmission, data processing hardware, office equipment, and other high-density switching and control systems.

Gold-plated contact surfaces ensure excellent conductivity and provide superior corrosion resistance in electrically demanding contexts. The EHF-125-01-L-D-SM-LC header is fully compatible with typical through-hole, right-angle, and surface mount applications in the EHF series.

Typical industrial use cases include automation equipment, communication modules, data acquisition units, and laboratory instrumentation where compact, durable connections are critical.

Explore more PCB Headers and connectivity solutions within the Samtec EHF series and discover advanced wire-to-board interface products at EnvMart.
