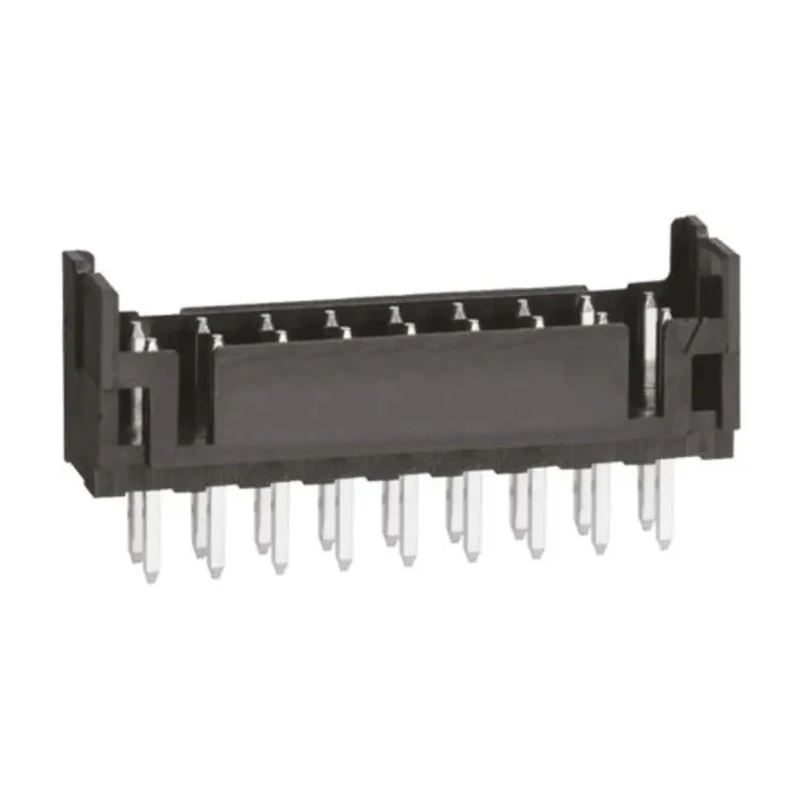

Hirose DF11 Series Straight Through Hole PCB Header, 18 Contacts, 2 mm Pitch, 2 Rows, Shrouded, Male, Gold Plated,
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 2A |
| Model | DF11 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | DF11 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 18 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
Key Features
- Delivers robust connectivity for compact PCB designs requiring double row headers.
- Features a four-wall shrouded structure and guide ribs to prevent incorrect mating and twisting.
- Locking mechanism ensures secure connection between header and housing.
- Gold plated brass contacts guarantee high conductivity and durability.
- 2 mm pitch provides a space-saving footprint ideal for portable electronics.
- Operating range from -30°C to +85°C accommodates diverse environments.
- Through-hole mount type for reliable solder termination.
- Rated for 2A current and 30V maximum voltage, suitable for multiple signal applications.
Product Description
The Hirose DF11-18DP-2DSA(01) is a straight through hole PCB header from the DF11 Series, engineered for demanding electronic assembly tasks. Offering 18 contacts in a compact double row layout with a 2 mm pitch, this header is optimized for applications requiring dense signal routing within minimal board space. Its shrouded structure incorporates four robust locking walls and guide ribs to ensure correct mating and secure retention during wire-to-board or board-to-board assembly.
Designed for reliability, the DF11-18DP-2DSA(01) utilizes gold plated brass contacts to provide consistent conductivity and resistance to corrosion, suitable for signal transmission in industrial, commercial, and portable electronics. The header's mounting is through-hole, simplifying soldering operations and improving long-term mechanical stability. With a rated current capacity of 2A and maximum voltage of 30V, it meets the requirements of a wide range of digital and analog signal applications.
The operating temperature range extends from -30°C to +85°C, making it adaptable for both laboratory and field deployments. Its compact 2 mm pitch allows for more contacts in a limited footprint, aiding device miniaturization. The double row configuration, alongside robust shrouding and guide ribs, effectively prevents mismating and damage from insertion errors.
Industrial use cases for the DF11 Series PCB headers include embedded controllers, instrumentation, digital cameras, LCD displays, car navigation systems, access control devices, and other measurement equipment. Its combination of high durability, secure mating, and space-saving design addresses the needs of designers working on modern electronics.
All DF11 Series headers are compatible with corresponding DF11 wire-to-board connectors and PCB sockets, supporting broad design flexibility. The product meets industry benchmarks for connector performance and is widely recognized for its mechanical reliability and electrical stability.
Discover more PCB Headers and connectivity solutions in the Electronics & Electricals section at EnvMart, featuring Hirose’s complete range for industrial and commercial electronic assemblies.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 2A, making it suitable for various signal applications.
The maximum voltage for this header is 30V, which is appropriate for multiple signal applications.
This unit features a pitch size of 2 mm, allowing for a compact design in electronic assemblies.
It operates within a temperature range of -30°C to +85°C, accommodating diverse environments.
The DF11-18DP-2DSA(01) has a total of 18 contacts arranged in a double row configuration.
This header utilizes a through-hole mount type, which simplifies soldering operations and enhances stability.
The contacts are made of brass with gold plating, while the housing is constructed from polyamide.
This header is shrouded, featuring a four-wall structure that helps prevent incorrect mating and twisting.
It supports both board-to-board and wire-to-board connector systems, providing design flexibility.
This model is used in embedded controllers, instrumentation, digital cameras, LCD displays, and more.
It includes a locking mechanism and guide ribs to ensure secure connections and prevent mismating.
The country of origin for this product is India, indicating its manufacturing location.
