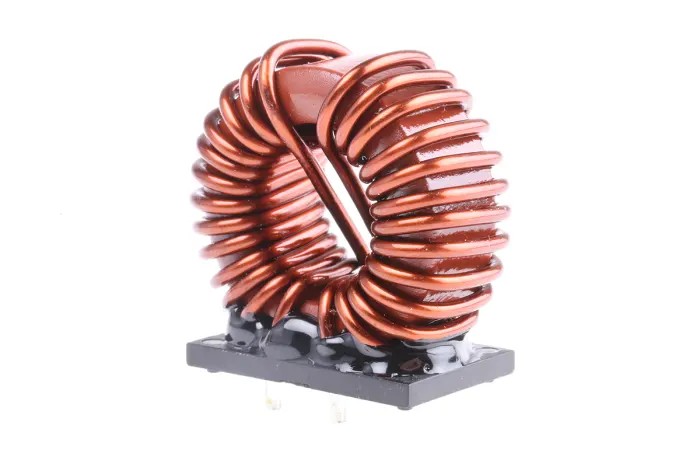

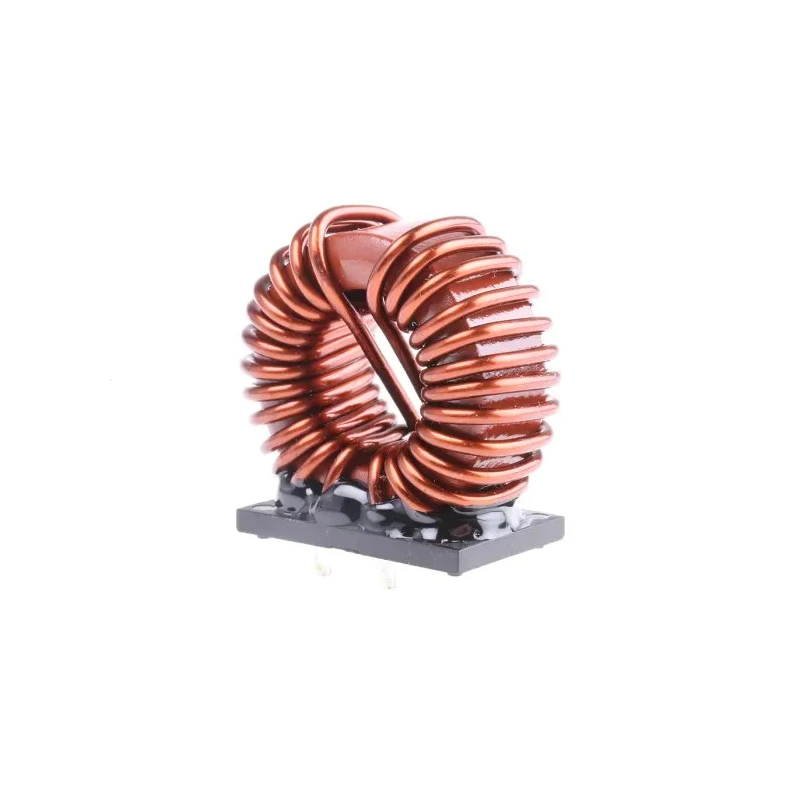

Wurth Elektronik 1 mH Ferrite Common Mode Choke 25 A IDC 3.6 mΩ RDC 250V AC Through Hole WE-CMB 7448262510

Wurth Elektronik 7448262510 is a 1 mH ferrite common mode choke designed for suppression of asymmetrical interferences in electronic circuits and power lines. This component features a compact ferrite core and is built to handle high currents up to 25 A DC with a low maximum DC resistance of 3.6 mΩ, ensuring energy efficiency during operation.

Its maximum self-resonant frequency of 100 kHz allows effective noise filtering within a broad frequency range. The choke is designed for through-hole mounting, with solder termination and a 2mm lead diameter to facilitate secure PCB attachment. The 10mm lead pitch and dimensions (44mm length and diameter, 43mm height, and 23.5mm depth) provide stable mechanical integration into assemblies.

With a wide operating temperature range from -40°C to 125°C and compliance to international standards including VDE, ENEC 10, RoHS, and REACH, this common mode choke is suitable for use in motor noise suppression, power electronics filters, and devices without ground connections. The choke's ability to suppress common mode noise makes it highly suited for industrial, laboratory, and commercial power line applications.

Compact ferrite core design enables effective noise attenuation. Maximum self-resonant frequency of 100 kHz ensures reliable performance. Wide operating temperature range from -40°C to 125°C. Solder termination style with precise lead dimensions for robust mounting.

High current rating of 25 A suitable for demanding power electronics. Standards compliant with VDE, ENEC 10, RoHS, and REACH directives. Dimensionally optimized for integration in various electrical systems. Utilized in suppression of common mode noise in motors and power lines.
