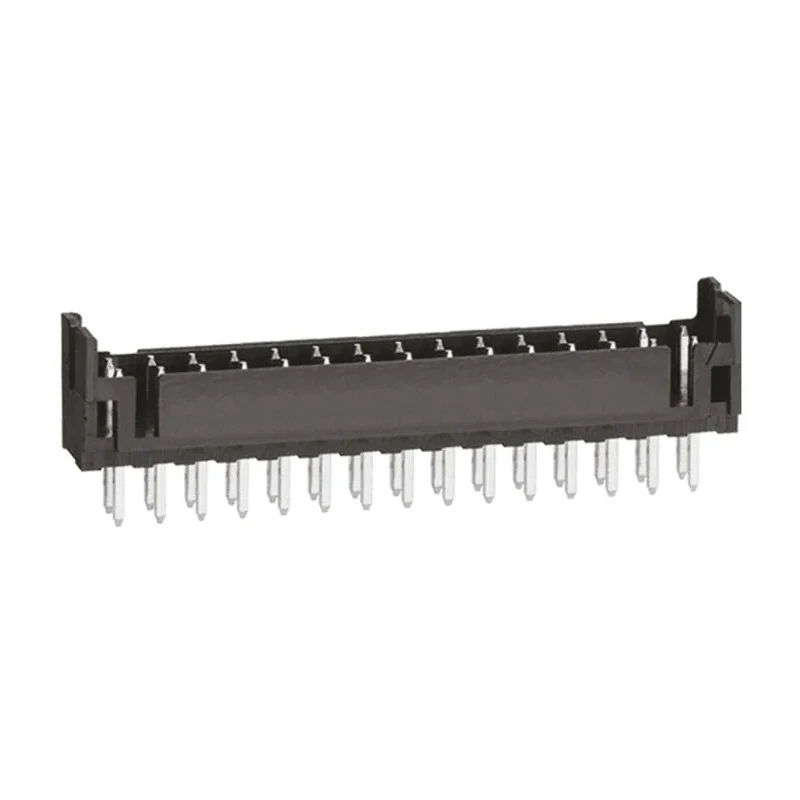

Hirose Straight Through Hole PCB Header, 30 Contacts, 2 mm Pitch, 2 Rows, Shrouded DF11

The Hirose DF11-30DP-2DSA(01) is a straight through hole PCB header designed for demanding electronic interconnections where reliable signal transmission and space efficiency are priorities. This model offers 30 male contacts arranged in a double row configuration with a 2 mm pitch, enabling dense integration without compromising performance.

Constructed with brass contacts plated in gold, this header ensures high conductivity and minimal signal degradation. The housing is made of durable polyamide, providing strong mechanical protection as well as high electrical insulation properties. The four-wall shrouded design prevents mismating during assembly, while built-in guide ribs help align the connector precisely and eliminate insertion errors.

This header is suitable for board-to-board and wire-to-board applications and supports a voltage rating up to 30 V and a current capacity of 2 A per contact. The through hole mount ensures optimal mechanical strength, making the connector ideal for both portable devices and industrial electronics.

Key engineering features include a secure locking mechanism to retain mating integrity, and metal fittings (in SMT variants) to enhance PCB retention and prevent solder peel. The connector's robust configuration allows reliable operation across a wide temperature range from -30°C to 85°C.

Typical applications for the DF11-30DP-2DSA(01) include digital cameras, LCD displays, measurement devices, car navigation systems, and access control units, where footprint efficiency and dependable signal interconnects are critical. The gold-plated contacts accommodate both high and low voltage signals, making it suitable for multi-signal integration.

Compact 2 mm pitch double row design for space saving PCB layouts. 30 gold-plated brass contacts with male gender for secure board connections. Shrouded housing with four-wall protection and guide ribs ensures proper mating.

Operates reliably from -30°C to 85°C in industrial, laboratory, and commercial electronics. Straight orientation and through hole mount for robust mechanical installation. Polyamide housing resists mechanical stress and provides electrical insulation.

Locking mechanism and guide ribs deliver secure and repeatable connections. Ideal for digital cameras, video recorders, LCDs, control units, and measurement systems. Explore Hirose's PCB Header range in the Electronics Components category to find solutions for advanced circuit packaging and signal distribution tasks.
