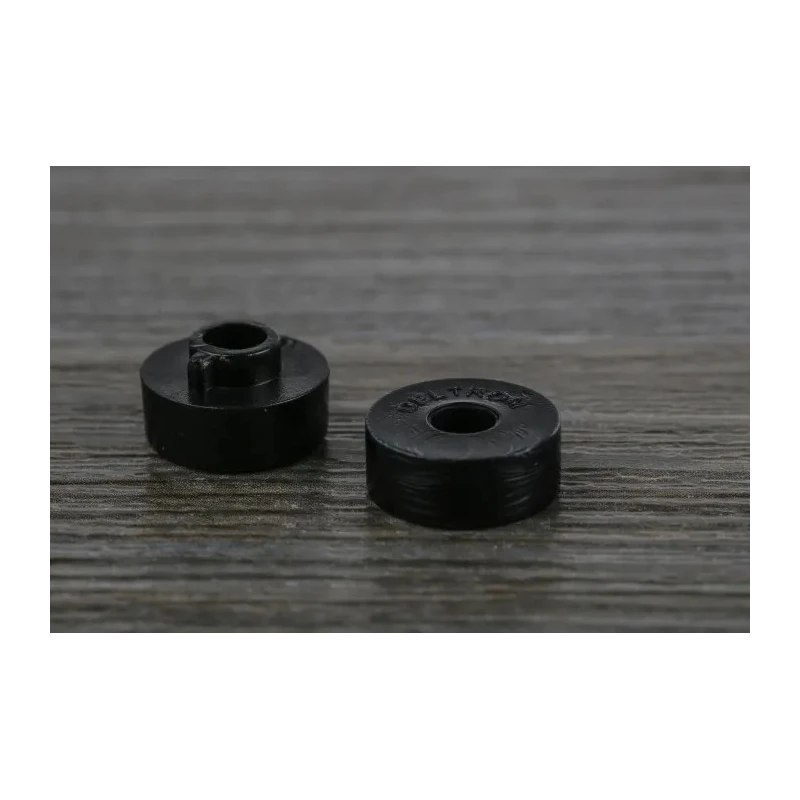

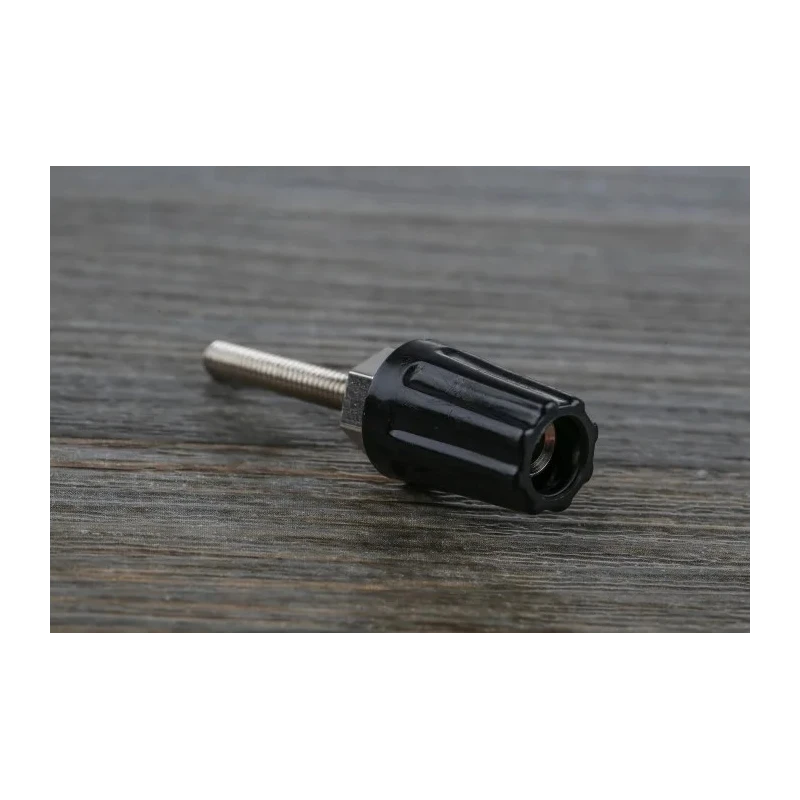

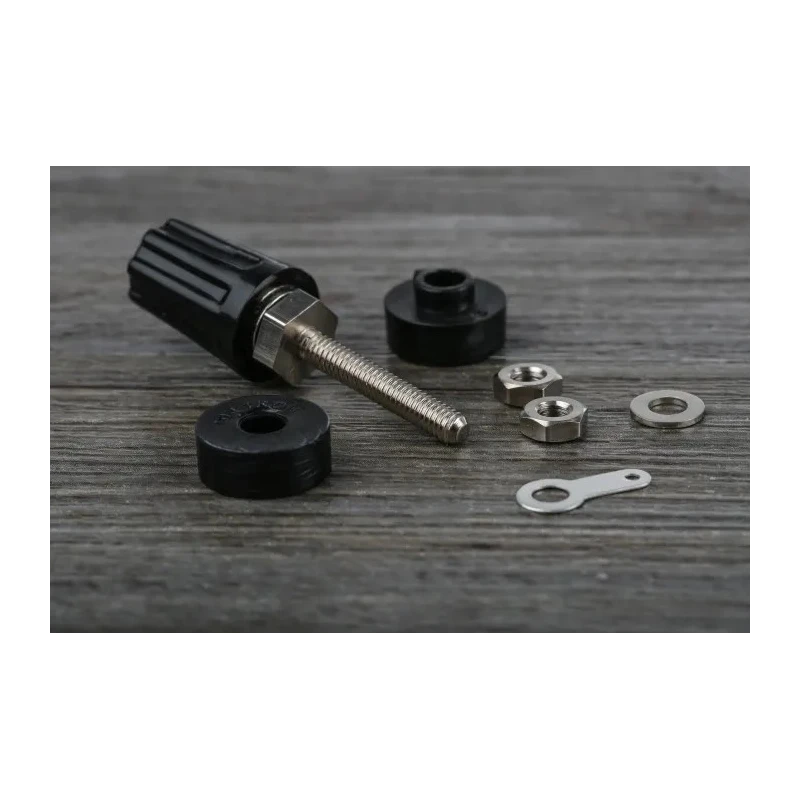

RS PRO Black 16A Binding Post with Brass Contacts and Nickel Plated 423-201

RS PRO 423-201 Black 16A Binding Post featuring brass contacts and nickel plating offers reliable electrical connection for test and measurement equipment and general electronics applications. Operating at a current rating of 16A and a maximum voltage of 50V DC, this binding post is suitable for secure connections in panel installations up to 12.7mm thickness.

The female binding post design supports high conductivity due to its brass contact material, nickel-plated to resist corrosion and maintain low contact resistance. It ensures a robust contact point pressure leading to long-lasting durability over more than 10,000 mating cycles.

With a compact overall diameter of 14mm and a height ranging from 24mm to 32mm above the panel, it includes a 4BA threaded clearance for firm mounting. These features make it ideal for industrial electronics, laboratory test setups, and electrical test equipment.

Manufactured under the trusted RS PRO brand, known for quality and reliability, it is made in the United Kingdom, adhering to strict quality standards. This binding post is perfect for professional engineers and technicians demanding durable and efficient test connectors.

Rated current of 16A for reliable current handling. Contact material is high-quality brass to ensure excellent electrical conduction. Nickel plating over contact surfaces provides corrosion resistance and low contact resistance.

Suitable for panel thicknesses up to 12.7mm for versatile installation. Designed as a female binding post with a maximum voltage rating of 50V DC. Robust construction offers high durability over many mating cycles. Compact design with an overall diameter of 14mm and height above panel between 24mm to 32mm.

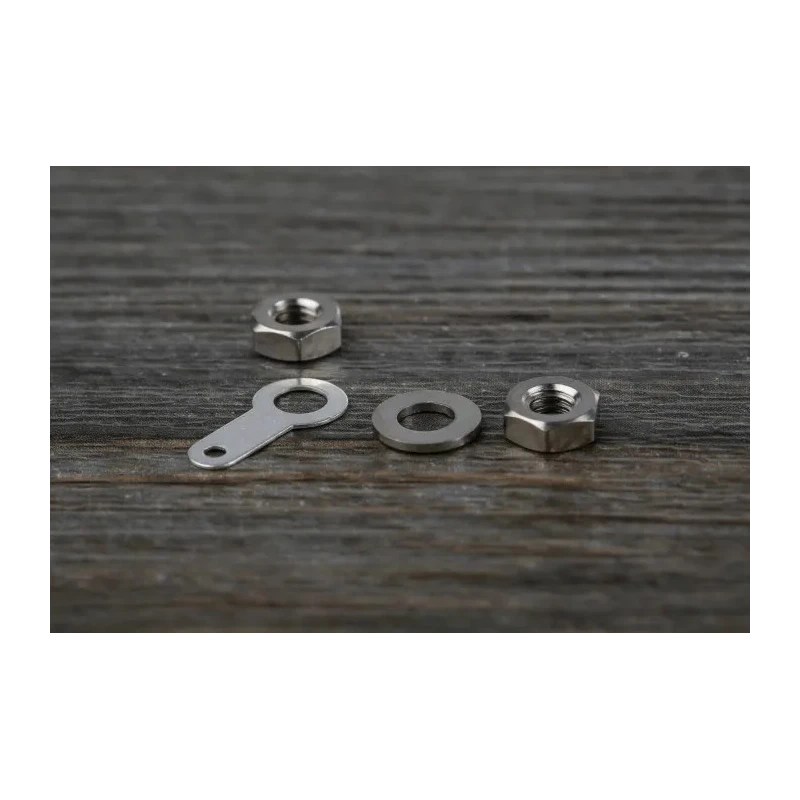

Thread size uses standard 4BA clearance for secure mounting.

Typical use cases include industrial electronic testing, scientific laboratory equipment, electrical measurement and diagnostics, and manufacturing quality control setups. Browse the RS PRO binding post catalog on EnvMart for a wide range of electrical connectors and test accessories.
